Fuji 2MBI300HJ-120-50

Fuji 2MBI300HJ-120-50

Overview

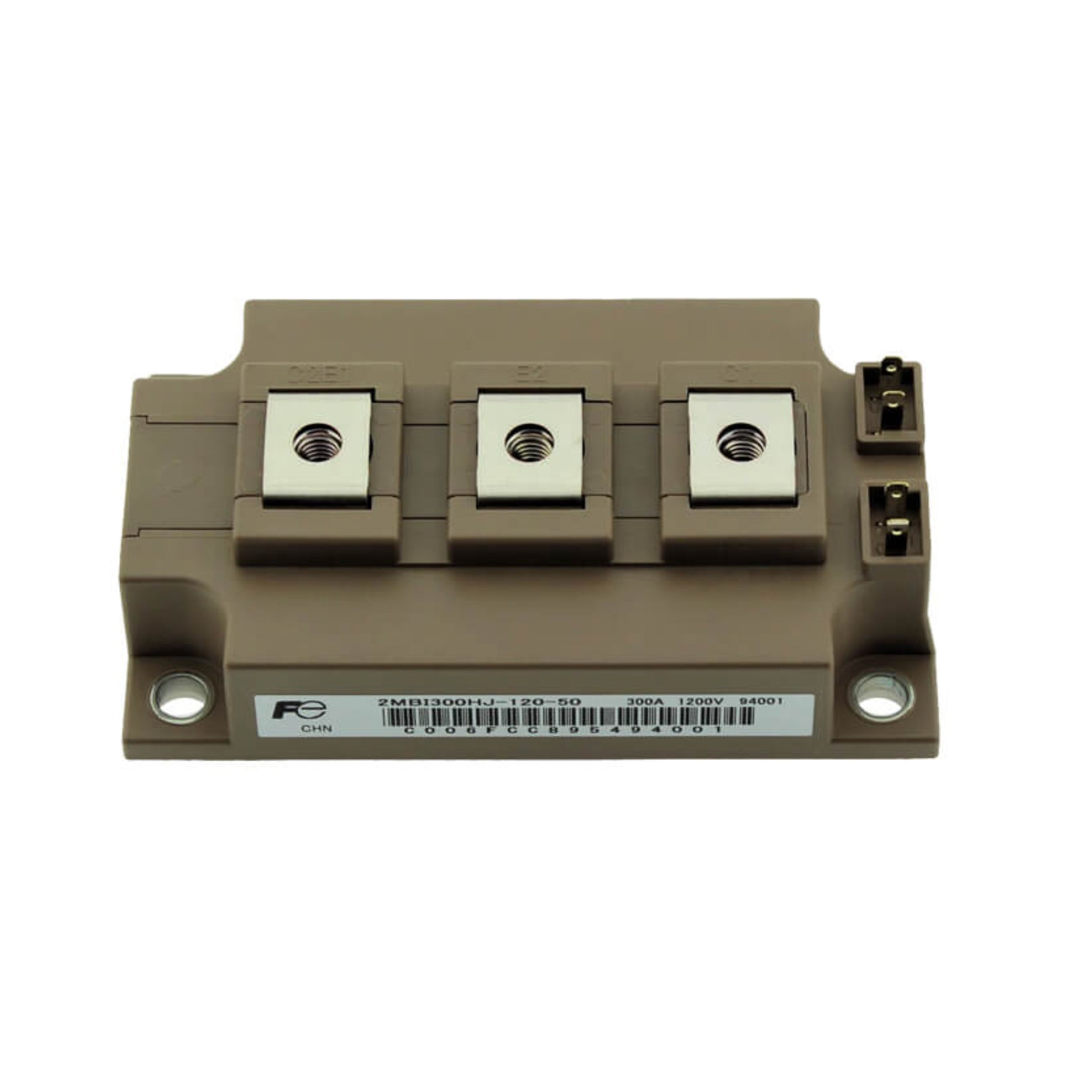

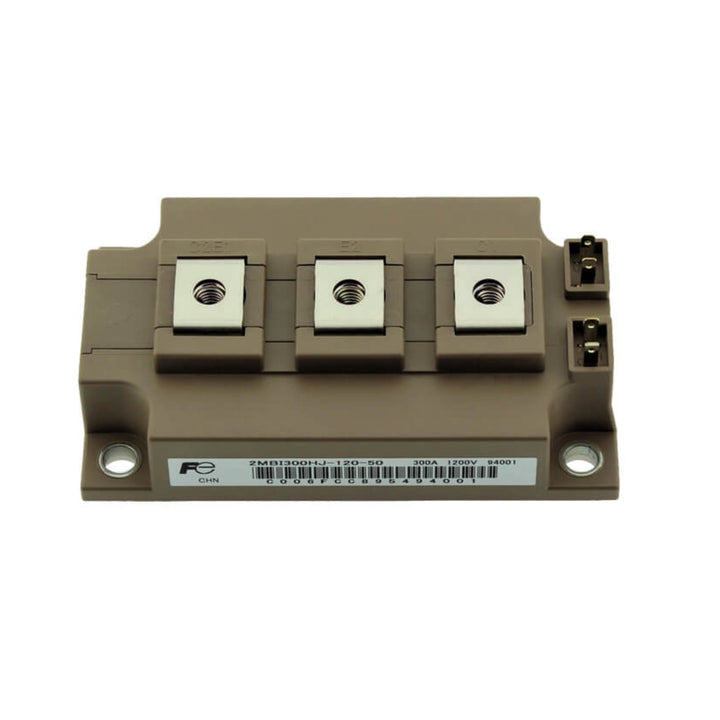

The Fuji 2MBI300HJ-120-50 is a high-power dual IGBT module rated for 1200 V and 300 A. Engineered for industrial applications demanding fast, efficient power switching, this module features an insulated baseplate, integrated fast-recovery diodes, and a rugged chassis-mount design ideal for inverters, drives, and power conversion systems.

Key Features

• Collector-Emitter Voltage: 1200 V

• Continuous Collector Current: 300 A

• Dual IGBT configuration

• Integrated free-wheeling diodes

• Low Vce(sat) for energy-efficient operation

• High-speed switching capability

• Insulated base for thermal isolation

• Chassis-mount design for industrial use

Technical Specifications

• Part Number: 2MBI300HJ-120-50

• Manufacturer: Fuji Electric

• Configuration: Dual-pack

• Vce (Max): 1200 V

• Ic (Rated): 300 A

• Vce(sat): ~2.0–2.4 V typical

• Mounting Type: Chassis mount

• Package: Insulated base module

• Operating Temperature: –40 °C to +150 °C (Tj)

• Isolation Voltage: ≥2500 V

• Switching Frequency: Up to 20 kHz

Applications

• Industrial inverters and drives

• UPS and backup power systems

• Renewable energy inverters

• High-power CNC machines

• Power conversion for automation

Why Choose the 2MBI300HJ-120-50

• Delivers 300 A at 1200 V for high-load applications

• Efficient and fast switching with minimal power loss

• Integrated diode reduces external component needs

• Trusted Fuji Electric reliability and performance

• Excellent thermal handling with insulated base

Order Now

The Fuji 2MBI300HJ-120-50 IGBT module is available and ships worldwide.

Return to the Fuji IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
