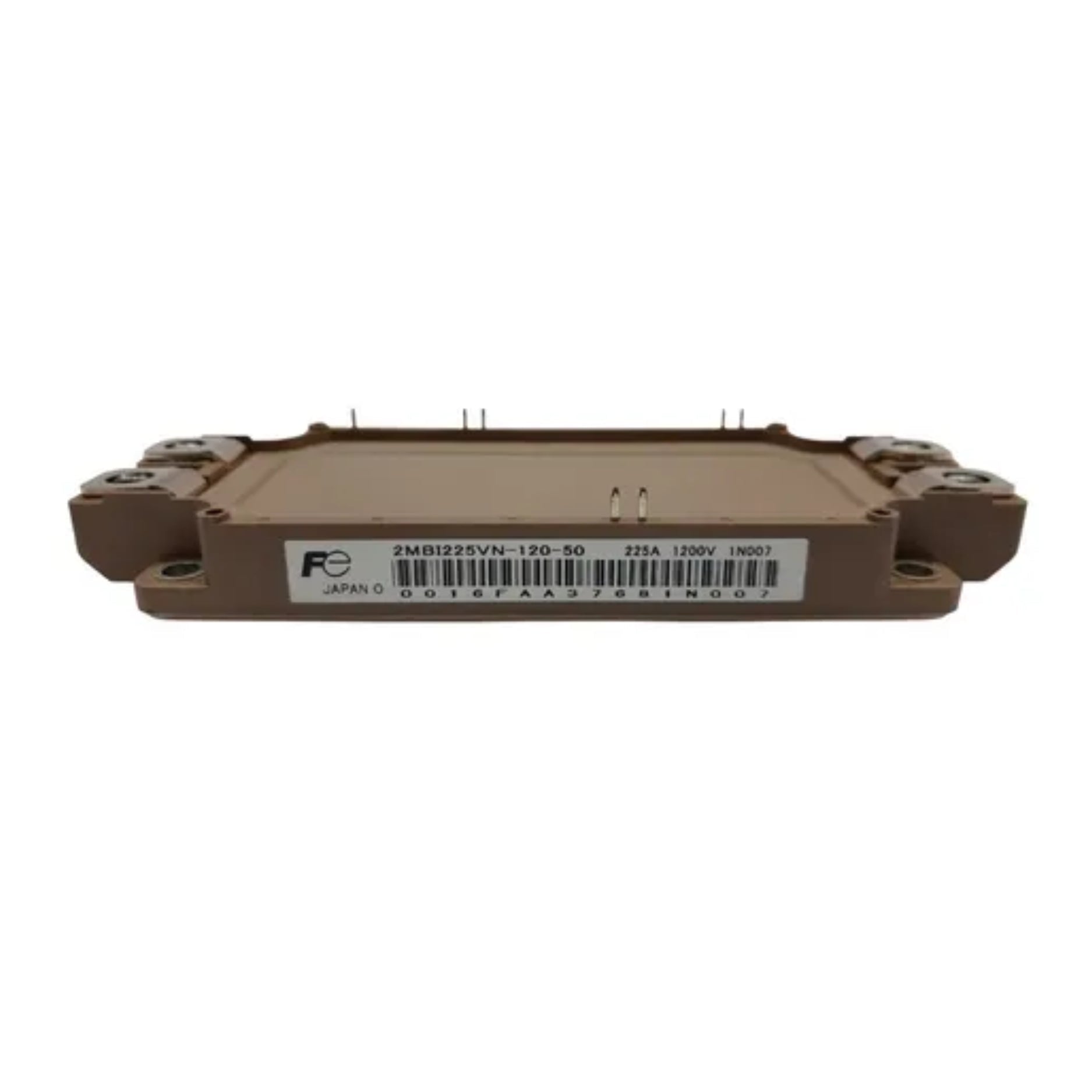

Fuji 2MBI225VN-120-50

Fuji 2MBI225VN-120-50

Overview

The Fuji 2MBI225VN-120-50 is a dual IGBT module engineered for high-power switching applications, offering a collector-emitter voltage of 1200 V and continuous current of 225 A. Built with an insulated baseplate and integrated fast recovery diodes, it ensures efficient thermal performance and reliable operation in demanding industrial systems.

Key Features

• Collector-Emitter Voltage: 1200 V

• Continuous Collector Current: 225 A

• Dual IGBT configuration

• Integrated fast recovery diodes

• High-speed switching capability

• Low Vce(sat) for improved conduction efficiency

• Insulated base for thermal isolation

• Rugged chassis-mount design

Technical Specifications

• Part Number: 2MBI225VN-120-50

• Manufacturer: Fuji Electric

• Configuration: Dual-pack

• Vce (Max): 1200 V

• Ic (Rated): 225 A

• Vce(sat): ~2.0–2.2 V typical

• Mounting Type: Chassis mount

• Package: Insulated module

• Operating Temperature: –40 °C to +150 °C (Tj)

• Isolation Voltage: ≥2500 V

• Switching Frequency: Up to 20 kHz

Applications

• Industrial motor drives

• High-power inverters

• Renewable energy systems

• UPS and power conditioning

• Automation and CNC equipment

Why Choose the 2MBI225VN-120-50

• Superior current and voltage ratings for high-power systems

• Efficient power switching with minimal losses

• Reliable thermal design with insulated base

• Ideal for OEM and industrial retrofits

• Proven Fuji quality and performance

Order Now

The Fuji 2MBI225VN-120-50 IGBT module is available and ships worldwide.

Return to the Fuji IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
