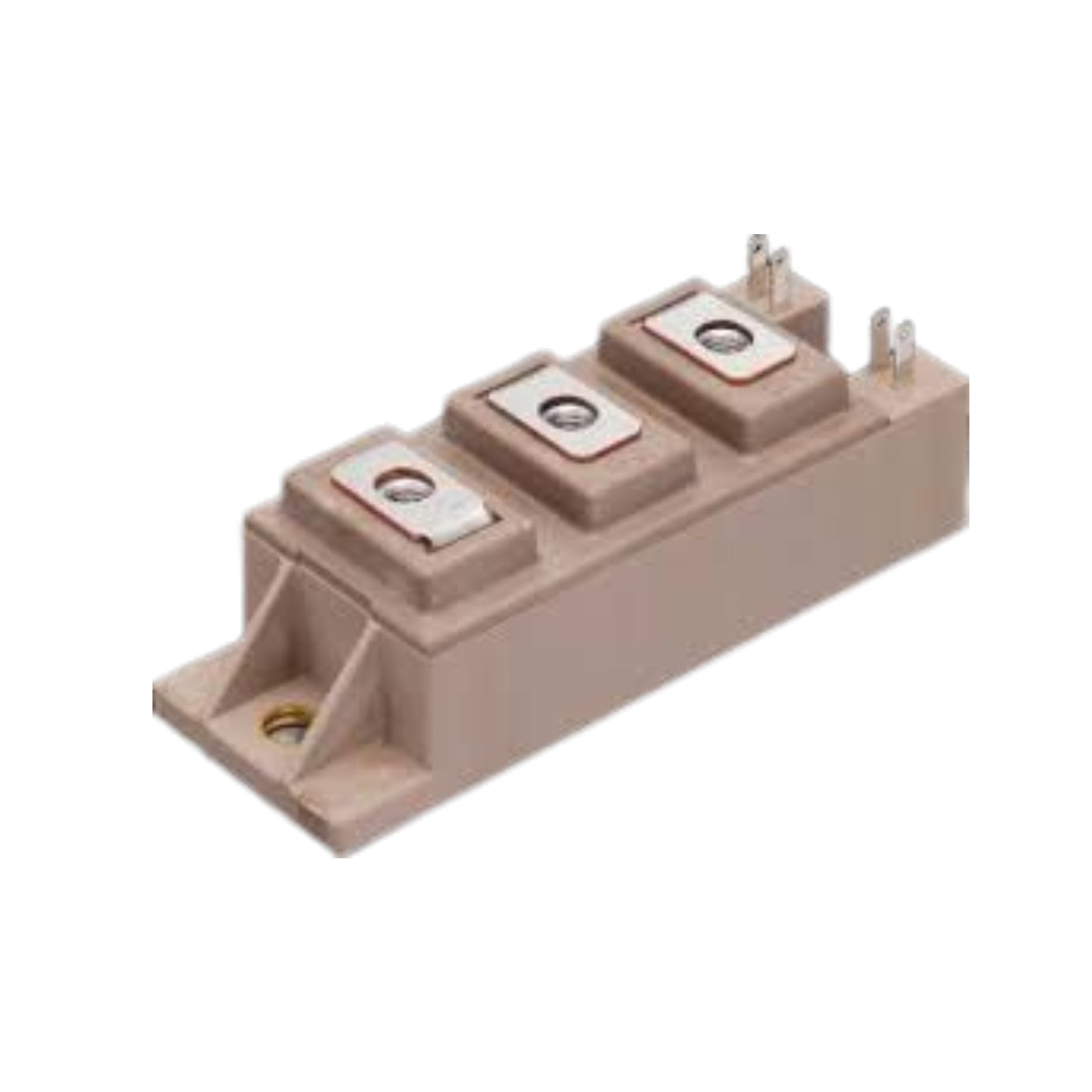

Fuji 2MBI200XAA065-50

Fuji 2MBI200XAA065-50

Overview

The Fuji 2MBI200XAA065-50 is a high-performance dual IGBT module designed for 650 V, 200 A switching applications. It features a compact chassis-mount package with an insulated baseplate, making it ideal for motor drives, inverters, and power supply systems requiring fast switching and high thermal reliability.

Key Features

• Collector-Emitter Voltage: 650 V

• Continuous Collector Current: 200 A

• Dual IGBT configuration

• Integrated free-wheeling diodes

• High-speed switching capability

• Low Vce(sat) for improved efficiency

• Insulated base for optimized heat dissipation

• Chassis-mount design for industrial installations

Technical Specifications

• Part Number: 2MBI200XAA065-50

• Manufacturer: Fuji Electric

• Configuration: Dual-pack

• Vce (Max): 650 V

• Ic (Rated): 200 A

• Vce(sat): ~1.8–2.1 V typical

• Mounting Type: Chassis mount

• Package: Insulated module

• Operating Temperature: –40 °C to +150 °C (Tj)

• Isolation Voltage: ≥2500 V

• Switching Frequency: Up to 20 kHz

Applications

• Industrial inverters and converters

• Motor control and automation systems

• UPS and backup power units

• Renewable energy conversion

• HVAC and pump control

Why Choose the 2MBI200XAA065-50

• Robust 200 A current handling in compact size

• High-efficiency power switching at 650 V

• Enhanced thermal design with insulated base

• Reliable Fuji performance for industrial use

• Simplifies system integration with built-in diodes

Order Now

The Fuji 2MBI200XAA065-50 IGBT module is available and ships worldwide.

Return to the Fuji IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.
