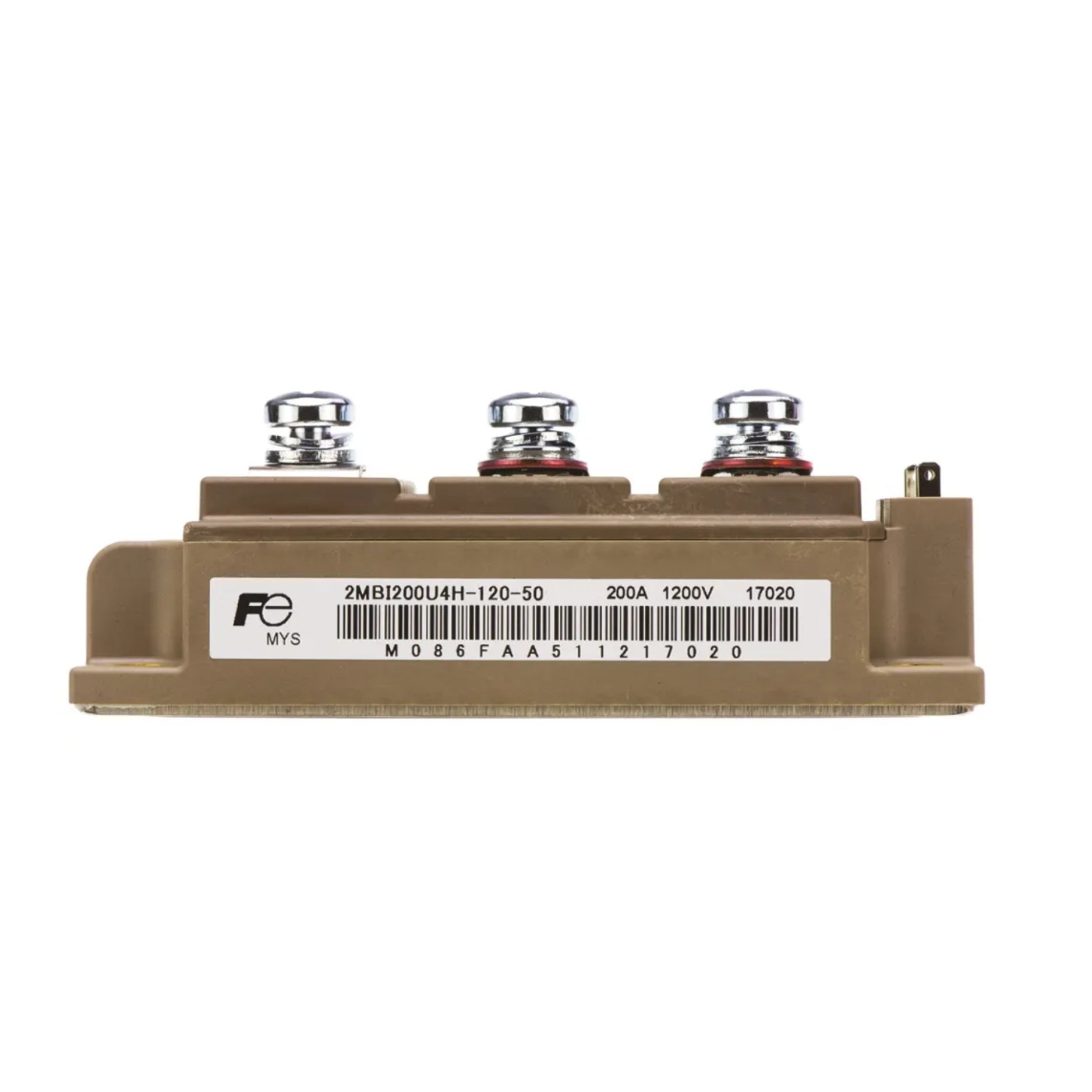

Fuji 2MBI200U4H-120-50

Fuji 2MBI200U4H-120-50

Overview

The Fuji 2MBI200U4H-120-50 is a high-performance dual IGBT module rated at 200 A and 1200 V, engineered for demanding power switching applications. It features fast switching characteristics, integrated free-wheeling diodes, and an insulated chassis-mount base for superior thermal performance and reliability.

Key Features

• Collector-Emitter Voltage: 1200 V

• Continuous Collector Current: 200 A

• Dual IGBT configuration

• Built-in fast recovery diodes

• Low saturation voltage (Vce(sat))

• High-speed switching capability

• Insulated baseplate for thermal isolation

• Chassis-mount design

Technical Specifications

• Part Number: 2MBI200U4H-120-50

• Manufacturer: Fuji Electric

• Configuration: Dual-pack

• Vce (Max): 1200 V

• Ic (Rated): 200 A

• Vce(sat): ~2.0 V typical

• Mounting Type: Chassis mount

• Package: Insulated base module

• Operating Temperature: –40 °C to +150 °C (Tj)

• Isolation Voltage: ≥2500 V

• Switching Frequency: Up to 20 kHz

Applications

• Industrial inverters

• Motor control systems

• UPS and power supplies

• Renewable energy systems

• CNC and automation equipment

Why Choose the 2MBI200U4H-120-50

• Efficient and reliable 1200 V switching

• Robust current handling in compact design

• Built-in diodes reduce design complexity

• Excellent thermal performance

• Backed by Fuji’s proven IGBT technology

Order Now

The Fuji 2MBI200U4H-120-50 IGBT module is available and ships worldwide.

Return to the Fuji IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.
