Fuji 2MBI200SB-120-50

Fuji 2MBI200SB-120-50

Overview

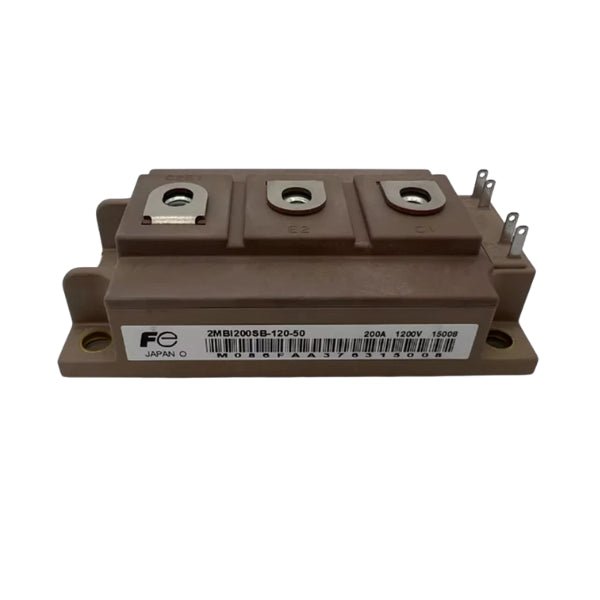

The Fuji 2MBI200SB-120-50 is a dual-pack IGBT module rated at 200 A and 1200 V, engineered for high-efficiency power switching applications. It features integrated fast recovery diodes, low saturation voltage, and an insulated chassis-mount base for effective thermal performance in demanding industrial environments.

Key Features

• Collector-Emitter Voltage: 1200 V

• Continuous Collector Current: 200 A

• Dual IGBT configuration

• Fast recovery free-wheeling diodes

• Low Vce(sat) for minimal conduction losses

• High-speed switching operation

• Insulated base for improved thermal management

• Robust chassis-mount construction

Technical Specifications

• Part Number: 2MBI200SB-120-50

• Manufacturer: Fuji Electric

• Configuration: Dual-pack

• Vce (Max): 1200 V

• Ic (Rated): 200 A

• Vce(sat): ~2.0–2.2 V typical

• Mounting Type: Chassis mount

• Package: Isolated module

• Operating Temperature: –40 °C to +150 °C (Tj)

• Isolation Voltage: ≥2500 V

• Switching Frequency: Up to 20 kHz

Applications

• High-power inverters and converters

• Industrial motor drives

• UPS and backup power systems

• Renewable energy installations

• CNC and automation systems

Why Choose the 2MBI200SB-120-50

• High current and voltage handling

• Compact dual-module design

• Excellent thermal and switching efficiency

• Built for durability in industrial use

• Backed by Fuji’s proven technology

Order Now

The Fuji 2MBI200SB-120-50 IGBT module is available and ships worldwide.

Return to the Fuji IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.
