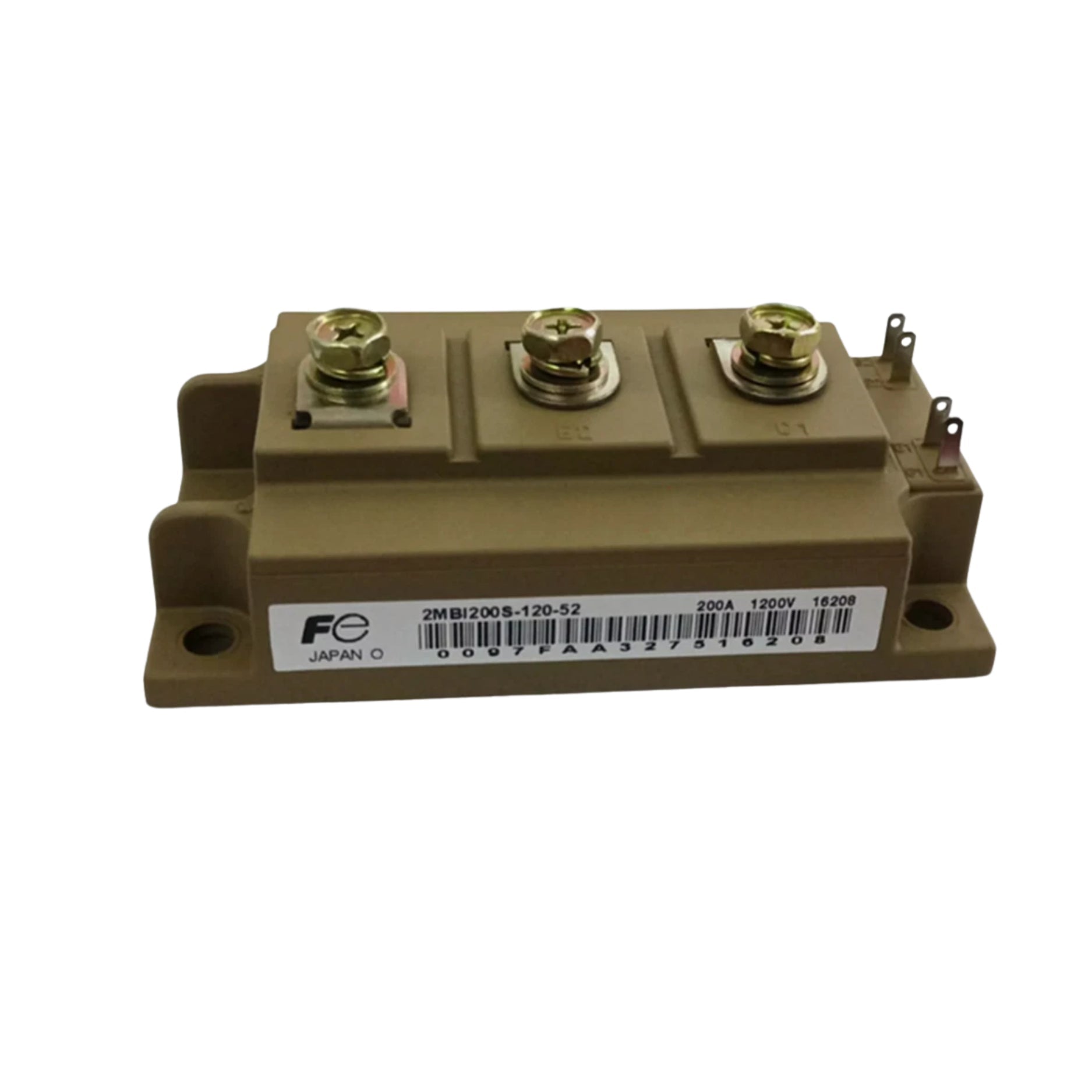

Fuji 2MBI200S-120-52

Fuji 2MBI200S-120-52

Overview

The Fuji 2MBI200S-120-52 is a dual IGBT module designed for high-efficiency switching in 1200 V systems. With a 200 A current rating and insulated base, it ensures excellent thermal performance and reliability in industrial applications such as inverters, drives, and power supplies. Its fast-switching capability and compact package make it ideal for demanding environments.

Key Features

• Collector-Emitter Voltage: 1200 V

• Continuous Collector Current: 200 A

• Dual IGBT configuration

• Built-in fast recovery diodes

• Low Vce(sat) for reduced power loss

• High-speed switching performance

• Insulated base for effective heat dissipation

• Durable and compact chassis-mount design

Technical Specifications

• Part Number: 2MBI200S-120-52

• Manufacturer: Fuji Electric

• Configuration: Dual-pack

• Vce (Max): 1200 V

• Ic (Rated): 200 A

• Vce(sat): ~2.0 V typical

• Mounting: Chassis mount

• Package: Insulated module

• Operating Temperature: –40 °C to +150 °C (Tj)

• Isolation Voltage: ≥2500 V

• Switching Frequency: Typically up to 20 kHz

Applications

• Industrial motor control

• Power inverters and converters

• Renewable energy systems

• UPS and backup power

• High-efficiency automation

Why Choose the 2MBI200S-120-52

• Optimized for high-speed, high-voltage switching

• Compact and robust design

• Excellent thermal and electrical performance

• Reliable operation in industrial environments

• Trusted Fuji Electric quality

Order Now

The Fuji 2MBI200S-120-52 IGBT module is available and ships worldwide.
