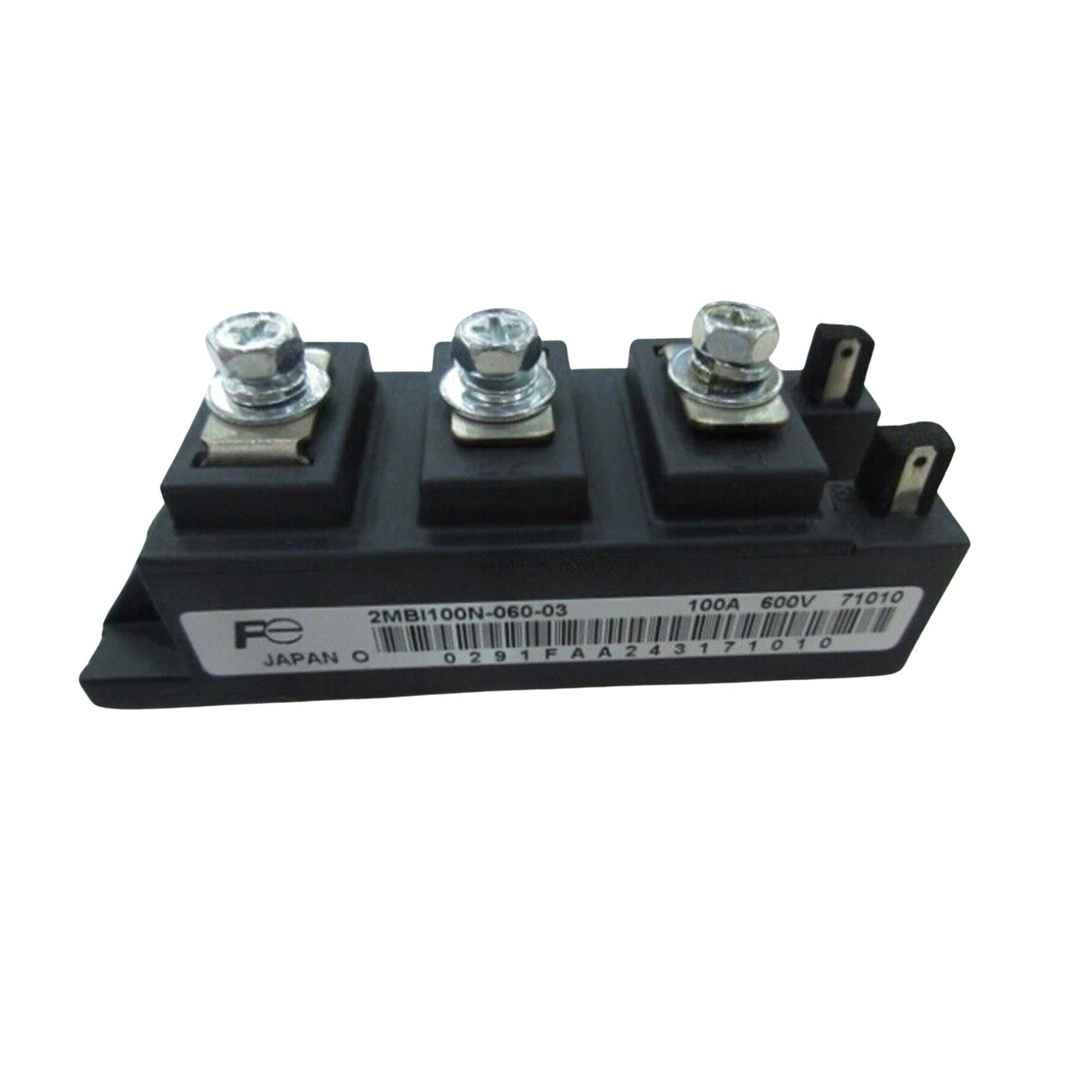

Fuji 2MBI100N-060-03

Fuji 2MBI100N-060-03

Overview

The Fuji 2MBI100N-060-03 is a dual IGBT module engineered for 600 V and 100 A applications, offering high-speed switching and efficient thermal management. With an insulated baseplate and built-in fast recovery diodes, it is ideal for medium-power industrial systems such as inverters, UPS units, and power converters.

Key Features

• Collector-Emitter Voltage: 600 V

• Continuous Collector Current: 100 A

• Dual IGBT configuration

• Built-in fast recovery diodes

• Low Vce(sat) for reduced conduction losses

• Insulated base for effective heat dissipation

• High-speed switching performance

• Rugged chassis-mount design

Technical Specifications

• Part Number: 2MBI100N-060-03

• Manufacturer: Fuji Electric

• Configuration: Dual-pack

• Vce (Max): 600 V

• Ic (Rated): 100 A

• Vce(sat): ~1.9–2.1 V typical

• Mounting Type: Chassis mount

• Package: Insulated module

• Operating Temperature: –40 °C to +150 °C (Tj)

• Isolation Voltage: ≥2500 V

• Switching Frequency: Typically up to 20 kHz

Applications

• Industrial motor control

• Medium-power inverters and converters

• Renewable energy systems

• UPS and backup power systems

• General-purpose automation

Why Choose the 2MBI100N-060-03

• Optimized for efficient 600 V switching

• Compact and durable dual IGBT design

• Built-in diodes for simplified circuit design

• Proven Fuji Electric performance

• Easy integration into industrial equipment

Order Now

The Fuji 2MBI100N-060-03 IGBT module is available and ships worldwide.

New:

New product in original sealed packaging. The product may be of an older version or design. Packaging may show markings, discoloration, or signs of wear due to storage.

Refurbished:

Refurbished product fully tested, cleaned, and verified for proper operation. Not in original packaging. The item may show minor cosmetic signs resulting from previous handling or use.

Warranty:

DDPARTSSOLUTION Warranty: 1 Year.

Manufacturer’s warranty and support DO NOT apply.
