4 units sold

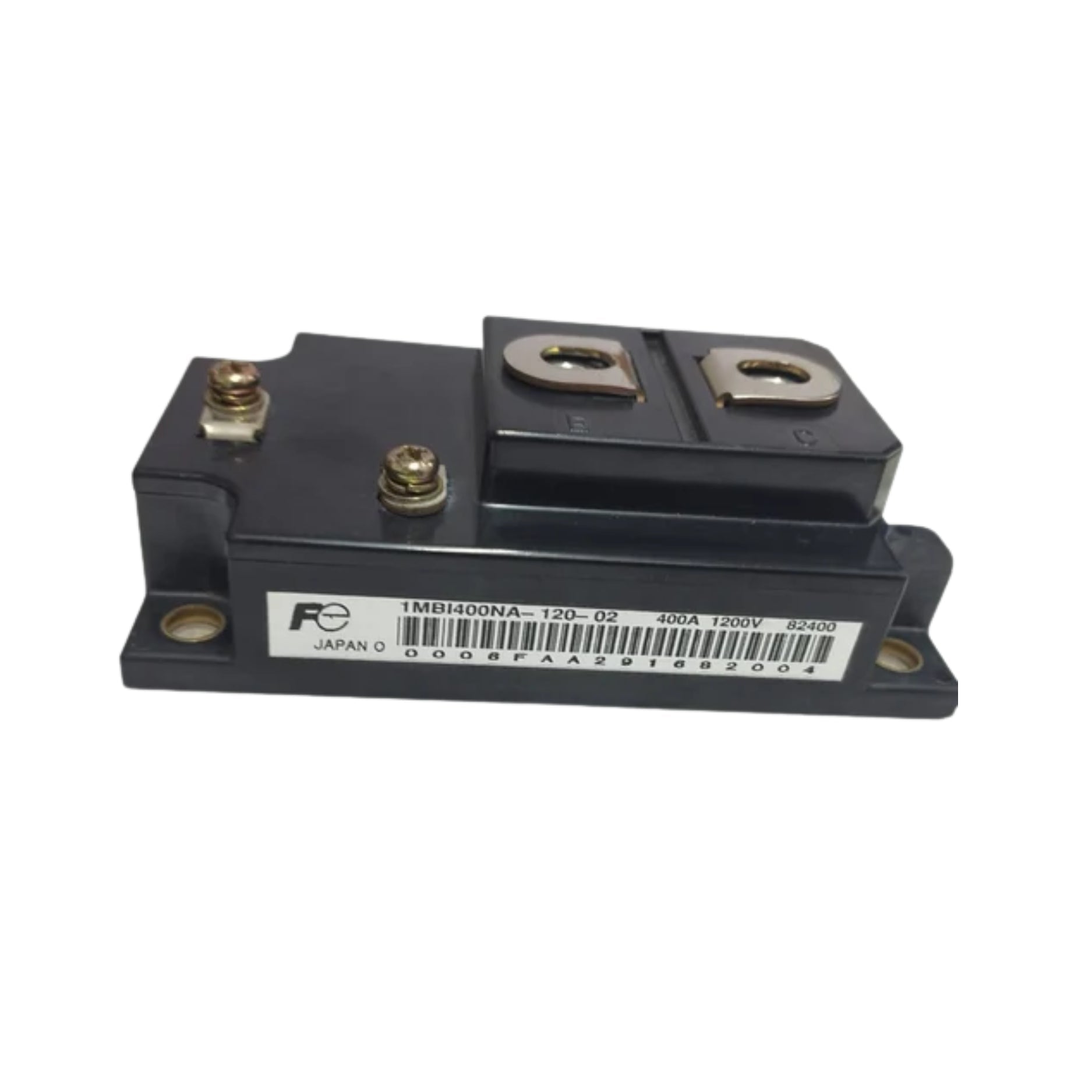

Fuji 1MBI400NA-120-02
Condition: New
Warranty: 1 Year
+10 Available
We deliver worldwide
sales@ddpartssolution.com
📞 +1 (689) 275-3558
Fuji 1MBI400NA-120-02
Overview
The Fuji 1MBI400NA-120-02 is a high-performance single IGBT module rated at 400 A and 1200 V. Engineered for use in industrial inverters, UPS systems, and motor drives, it delivers efficient power switching with fast response, low Vce(sat), and high thermal durability. The chassis-mount design with insulated base ensures easy integration into compact power systems.
Key Features
-
Collector-Emitter Voltage: 1200 V
-
Continuous Collector Current: 400 A
-
Low saturation voltage for reduced losses
-
High-speed switching capability
-
Built-in fast recovery free-wheeling diode
-
Insulated baseplate for thermal isolation
-
Rugged and compact chassis-mount module
Technical Specifications
-
Part Number: 1MBI400NA-120-02
-
Manufacturer: Fuji Electric
-
Configuration: Single IGBT
-
Vce (Max): 1200 V
-
Ic (Rated): 400 A
-
Vce(sat): ~2.1 V typical
-
Mounting: Chassis mount
-
Package: Insulated module
-
Operating Temperature: –40 °C to +150 °C (Tj)
-
Isolation Voltage: ≥2500 V
-
Switching Frequency: Typically up to 20 kHz
Applications
-
Industrial motor drives
-
Power inverters and converters
-
Renewable energy systems
-
High-efficiency automation
-
UPS and backup power equipment
Why Choose the 1MBI400NA-120-02
-
Reliable switching in high-current environments
-
Thermal efficiency with compact design
-
Proven Fuji IGBT quality
-
Easy installation and integration
-
Designed for industrial-grade operation
Order Now
The Fuji 1MBI400NA-120-02 IGBT module is available and ships worldwide.
