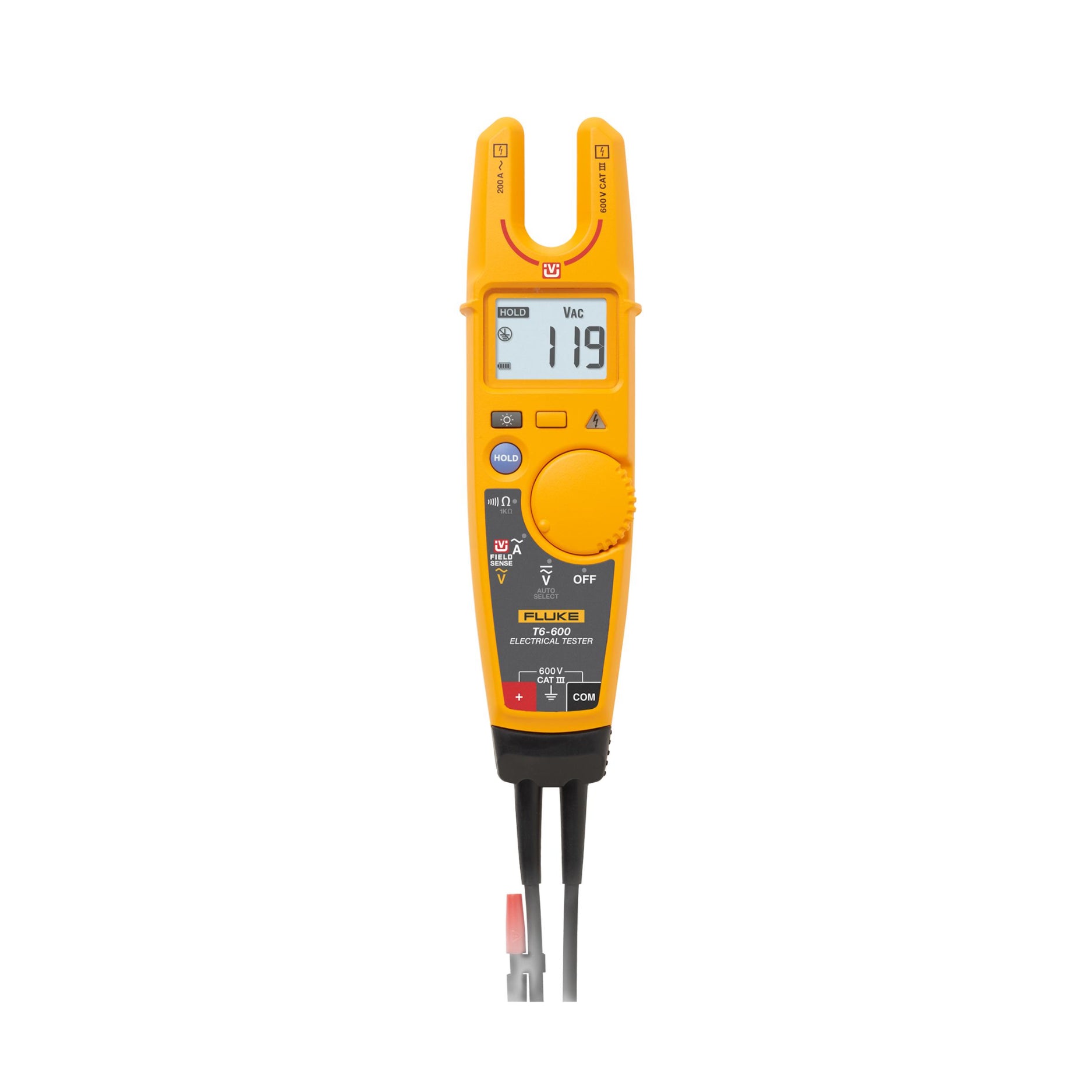

Fluke T6-600

Fluke T6-600 – Overview

The Fluke T6-600 is a versatile open-jaw electrical tester using FieldSense technology so users can measure AC voltage and current without needing to touch live conductors with test leads. This saves time, increases safety, and allows fast diagnostics of power circuits. It also handles traditional measurements (voltage, resistance) with test leads when needed.

Key Features

• FieldSense technology: measure AC voltage & current without test leads

• Open jaw (fork) design for AC measurements without touching live metal

• True RMS AC voltage and current readings

• DC voltage, resistance measurement using test leads

• Large jaw opening (17.8 mm) to accommodate large conductors (up to ~AWG 4/0)

• Backlit display and “HOLD” function for easier reading

• Lightweight, portable design for field work

• Long battery life on standard AA batteries

Technical Specifications

• Model: Fluke T6-600

• AC Voltage (FieldSense, no leads): up to 600 V AC; resolution 1 V; accuracy ±(3% + 3 counts) at 45-66 Hz

• AC Current (FieldSense, no leads): up to 200 A AC; resolution 0.1 A; accuracy ±(3% + 3 counts) at 45-66 Hz

• DC Voltage (with test leads): up to 600 V DC; resolution 1 V; accuracy ±(1% + 2 counts)

• Resistance (with test leads): up to 2,000 Ω; resolution 1 Ω; accuracy ±(1% + 2 counts)

• Safety Category: 600 V CAT III

• Jaw Opening: 17.8 mm

• Operating Temperature: -10 … +50 °C

• Storage Temperature: -30 … +60 °C

• Altitude: Operation to 2,000 m; storage to 10,000 m

• Relative Humidity: 0-90 % up to 30 °C; reducing as temperature rises

• Battery Type & Life: 2 × AA; ~360 h continuous; ~200 h using FieldSense mode

• Dimensions: ~61.1 × 259.3 × 43.8 mm

• Weight: ~0.35 kg

Applications

• Quickly verifying voltage and current in electrical panels without removing safety shields

• Testing large conductors where traditional probes don’t reach

• Diagnosing AC power supplies and circuits in industrial setups

• General field service work: electrical contractors, maintenance, troubleshooting

Why Choose the Fluke T6-600

• Offers safe non-contact AC measurement via open jaw, reducing risk and effort

• Supports both FieldSense and traditional lead-based measurements for flexibility

• True RMS makes it better for distorted waveforms or non-linear loads

• Long battery life and rugged build make it reliable in harsh field environments
