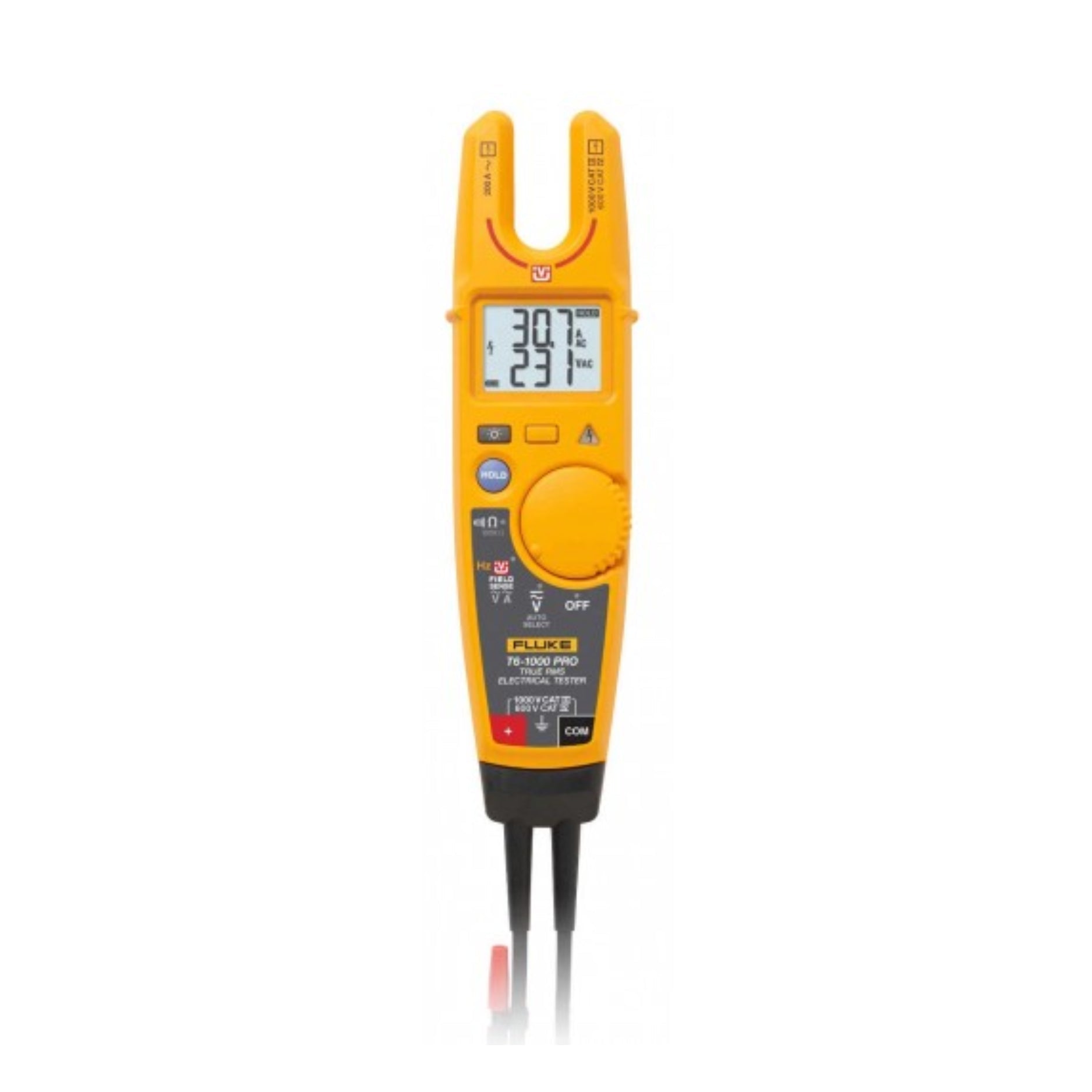

Fluke T6-1000 PRO

Fluke T6-1000 PRO – Advanced Non-Contact Electrical Tester

Overview

The Fluke T6-1000 PRO is an advanced electrical tester that measures voltage, current, and frequency without making direct contact with live conductors. Its FieldSense technology allows simultaneous voltage and current display through the open fork, while Visual Continuity changes the screen color for fast feedback. It is rugged, accurate, and designed for professionals who need safe and quick diagnostics in the field.

Key Features

• FieldSense technology for non-contact AC voltage, current, and frequency

• Simultaneous display of voltage and current readings

• Visual Continuity feature with green screen for continuity detection

• True-RMS for accurate results in noisy or nonlinear systems

• Open fork accommodates conductors up to AWG 4/0 (17.8 mm)

• Backlit display and Hold function for easy visibility

• Safety rated CAT IV 600 V / CAT III 1000 V

Technical Specifications

• Model: T6-1000 PRO

• AC Voltage with FieldSense: 1 V to 1000 V

• DC Voltage (with leads): 1 V to 1000 V

• AC Current with FieldSense: 0.1 A to 200 A

• Frequency (FieldSense): 45 Hz to 66 Hz

• Resistance: 1 Ω to 100 kΩ

• Jaw Opening: 17.8 mm (0.7 in)

• Display: 9999-count backlit LCD

• Power Supply: 2 × AA alkaline batteries

• Battery Life: up to 360 hours typical use

• Operating Temperature: −10 °C to +50 °C

• Storage Temperature: −30 °C to +60 °C

• Operating Altitude: up to 2000 m

• Storage Altitude: up to 10,000 m

• Humidity: up to 90% RH at ≤30 °C, decreasing with higher temps

• Dimensions: 61 × 43 × 259 mm

• Weight: ~350 g

• Safety Rating: CAT IV 600 V / CAT III 1000 V

Applications

• Troubleshooting in electrical panels and control systems

• Non-contact measurement in industrial and commercial environments

• Fast verification of current draw and voltage on motors and pumps

• Field maintenance where safety and speed are critical

Why Choose the Fluke T6-1000 PRO

• FieldSense technology reduces the need for direct contact with live wires

• True-RMS accuracy ensures reliable readings even with distorted signals

• Large open fork supports measurements on large conductors

• Rugged design with excellent safety ratings for professional use

Order Now

The Fluke T6-1000 PRO is part of Fluke’s FieldSense tester family. Available for purchase. Ships worldwide.
