Fluke T6-1000

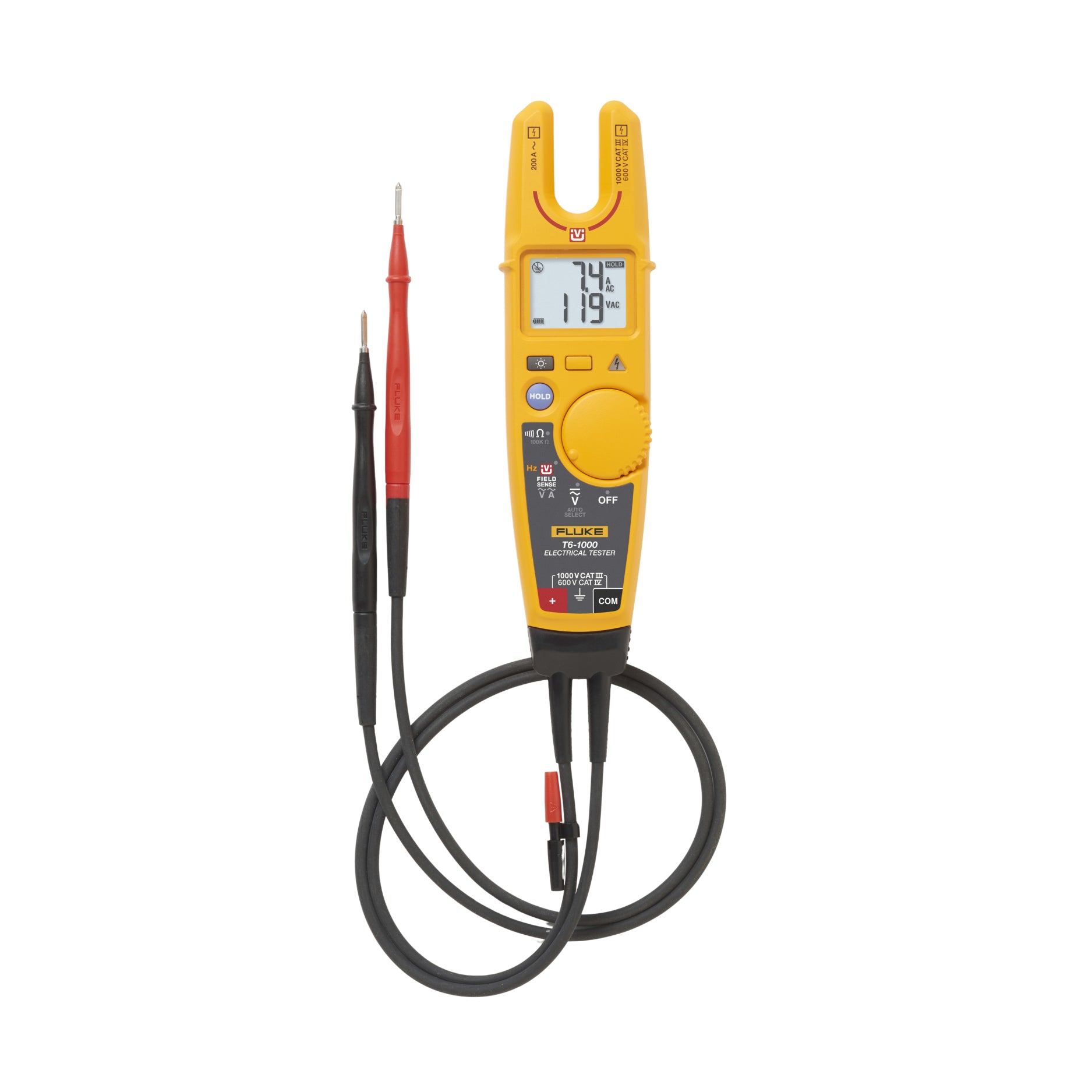

Fluke T6-1000 – FieldSense™ Electrical Tester

Overview

The Fluke T6-1000 is an advanced electrical tester featuring FieldSense™ technology and an open-fork design that lets you measure AC voltage, current, and frequency without contacting a live metallic conductor. It supports true-rms readings for both voltage and current, works with wires up to AWG 4/0 (≈ 120 mm²), and includes conventional test leads for DC / AC voltage and resistance functions. Built for industrial and commercial troubleshooting with rugged design, backlit display, and hold function.

Key Features

• FieldSense™ open-fork measurement of AC voltage, current & frequency without metallic contact

• True-rms AC voltage to 1000 V and AC current to 200 A through the fork

• Also supports DC and AC voltage & resistance using test leads

• Works with large conductors (wire up to AWG 4/0 / 120 mm²) via wide fork opening

• Hold function to freeze displayed values

• Large backlit display for visibility in dim work environments

• Durable build and safety ratings suited for job sites

Technical Specifications

• Model: T6-1000

• FieldSense AC Voltage (no test leads required): range up to 1000 V; resolution 1 V; accuracy ±(3 % + 3 counts) (45-66 Hz)

• FieldSense AC Current (no test leads required): up to 200.0 A; resolution 0.1 A; accuracy ±(3 % + 3 counts) (45-66 Hz)

• FieldSense Frequency: 45-66 Hz; resolution 1 Hz; accuracy ±(1 % + 2 counts)

• AC Voltage with test leads: up to 1000 V; resolution 1 V; accuracy ±(1.5 % + 2 counts) (45-66 Hz)

• DC Voltage with test leads: up to 1000 V; resolution 1 V; accuracy ±(1 % + 2 counts)

• Resistance with test leads: multiple ranges up to 100.0 kΩ; accuracy ±(1 % + 2 counts) across ranges

• Fork / Open Jaw Size: ~17.8 mm (≈ 0.7 in)

• Dimensions: approx. 61.1 × 259.3 × 43.8 mm

• Weight: ~0.35 kg

• Operating Temperature: -10 °C … +50 °C

• Storage Temperature: -30 °C … +60 °C

• Altitude (Operating): up to 2000 m

• Altitude (Storage): up to 10,000 m

• Relative Humidity: 0-90 % at 5-30 °C; lower limits at higher temps

• Battery Type: 2 × AA

• Battery Life: approx. 360 hours continuous, typical; ~200 hours if using FieldSense repeatedly

• Safety / Measurement Category: CAT IV 600 V / CAT III 1000 V

• Compliance: IEC/EN 61010-1, Pollution Degree 2; EMC per IEC/EN 61326-1

Applications

• Measuring AC voltage and current in live conductors without touching them directly

• Troubleshooting electrical panels, motor connections, feeders with large cables

• Fieldwork in dim or tight spaces where backlight and large display help

• Jobs needing both contact and non-contact measurement capabilities in one tool

Why Choose the Fluke T6-1000

• Contactless FieldSense™ reduces risk and speeds up measurements

• True-rms ensures accurate results even with distorted or non-linear loads

• Wide fork opening supports large conductors common in industrial settings

• Combination of resistance and voltage test leads extend its usefulness beyond just AC measurement

Order Now

The Fluke T6-1000 is part of Fluke’s lineup of advanced electrical testers. Available for purchase. Ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
