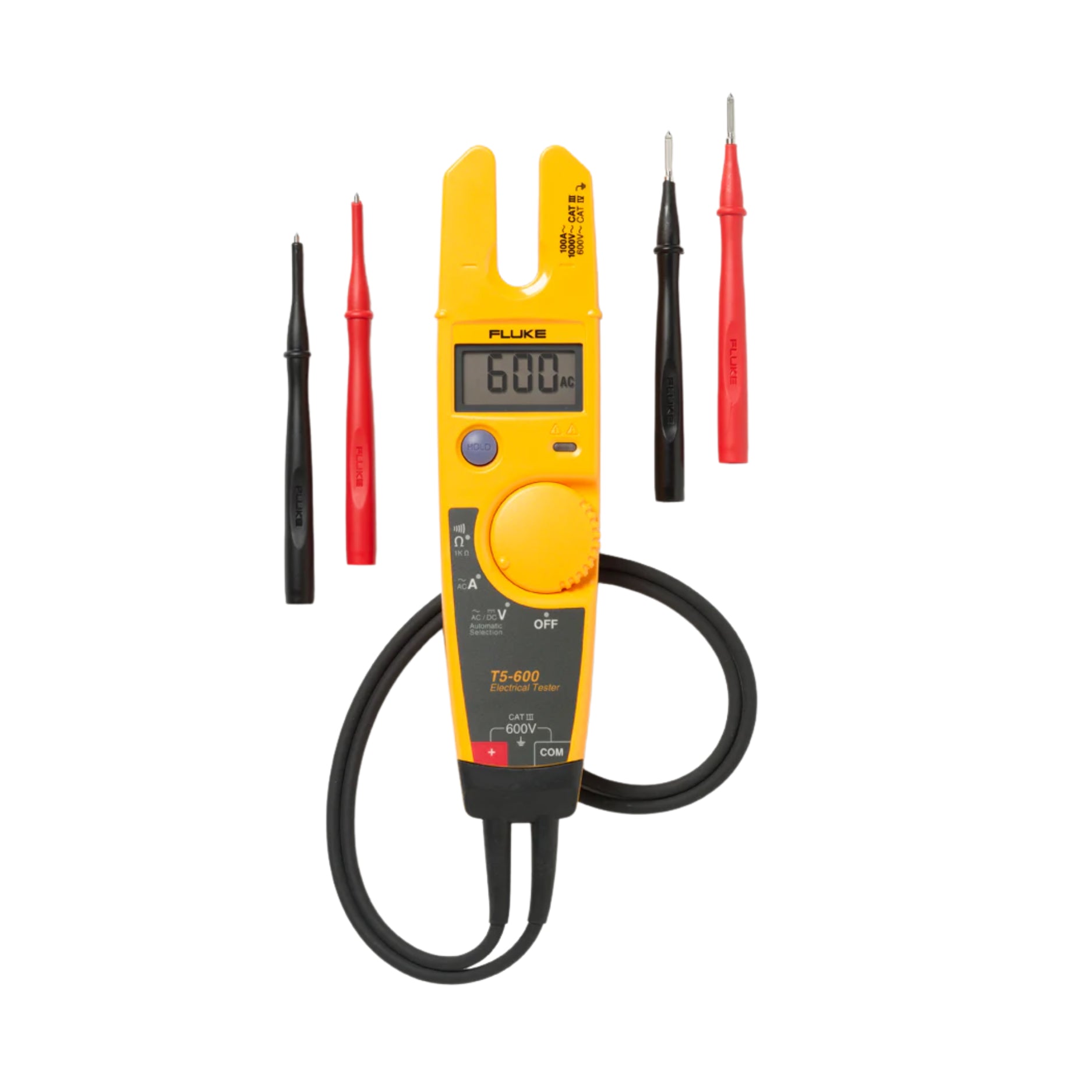

Fluke T5-600

Fluke T5-600 – Voltage, Continuity, and Current Tester

Overview

The Fluke T5-600 is a compact tester that combines voltage, continuity, and current functions in one rugged tool. It automatically detects AC or DC voltage up to 600 V, measures AC current up to 100 A using its OpenJaw™ clamp, and checks continuity and resistance quickly. Built tough with drop resistance and SlimReach probes, it’s ideal for everyday electrical troubleshooting.

Key Features

• Measures AC current up to 100 A with OpenJaw™ clamp

• Automatic AC/DC voltage detection up to 600 V

• Resistance measurement up to 1000 Ω

• Audible continuity beeper for quick checks

• Detachable SlimReach probes for confined spaces

• Rugged design tested to withstand 3 m drop

• Auto-off to extend battery life

• Integrated probe storage

• Safety rated CAT III 600 V

Technical Specifications

• Model: T5-600

• Voltage Range: 0 to 600 V AC/DC

• Voltage Accuracy: AC ±1.5 % + 2 digits; DC ±1 % + 1 digit

• AC Current Range (OpenJaw): 0 to 100 A

• AC Current Accuracy (50/60 Hz): ±3 % + 3 digits

• Resistance Range: 0 to 1000 Ω

• Continuity Threshold: beeper on < 25 Ω; off > 400 Ω

• Jaw Opening: 12.9 mm (0.5 in)

• Max Conductor Size: up to 1/0 THHN cable

• Operating Temperature: –10 °C to +50 °C

• Storage Temperature: –30 °C to +60 °C (without batteries)

• Humidity (non-condensing): 0–95 % up to 30 °C, derating at higher temps

• Drop Resistance: 3 m (10 ft)

• Safety Rating: CAT III 600 V

• Power Supply: 2 × AA batteries

• Battery Life: ~200 hours (zinc-chloride), ~400 hours (alkaline)

• Dimensions (H × W × D): 203 × 51 × 30.5 mm

• Weight: ~300 g

Applications

• Residential, commercial, and industrial troubleshooting

• Quick checks for voltage, current, and continuity

• Safe current testing without breaking the circuit

• Fieldwork where durability and reliability matter

Why Choose the Fluke T5-600

• Combines three essential test functions in one tool

• OpenJaw™ technology simplifies current testing

• Compact, rugged design ideal for daily use

• Strong safety rating for dependable performance

Order Now

The Fluke T5-600 is part of Fluke’s basic electrical tester lineup. Available for purchase. Ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
