Fluke T5-1000

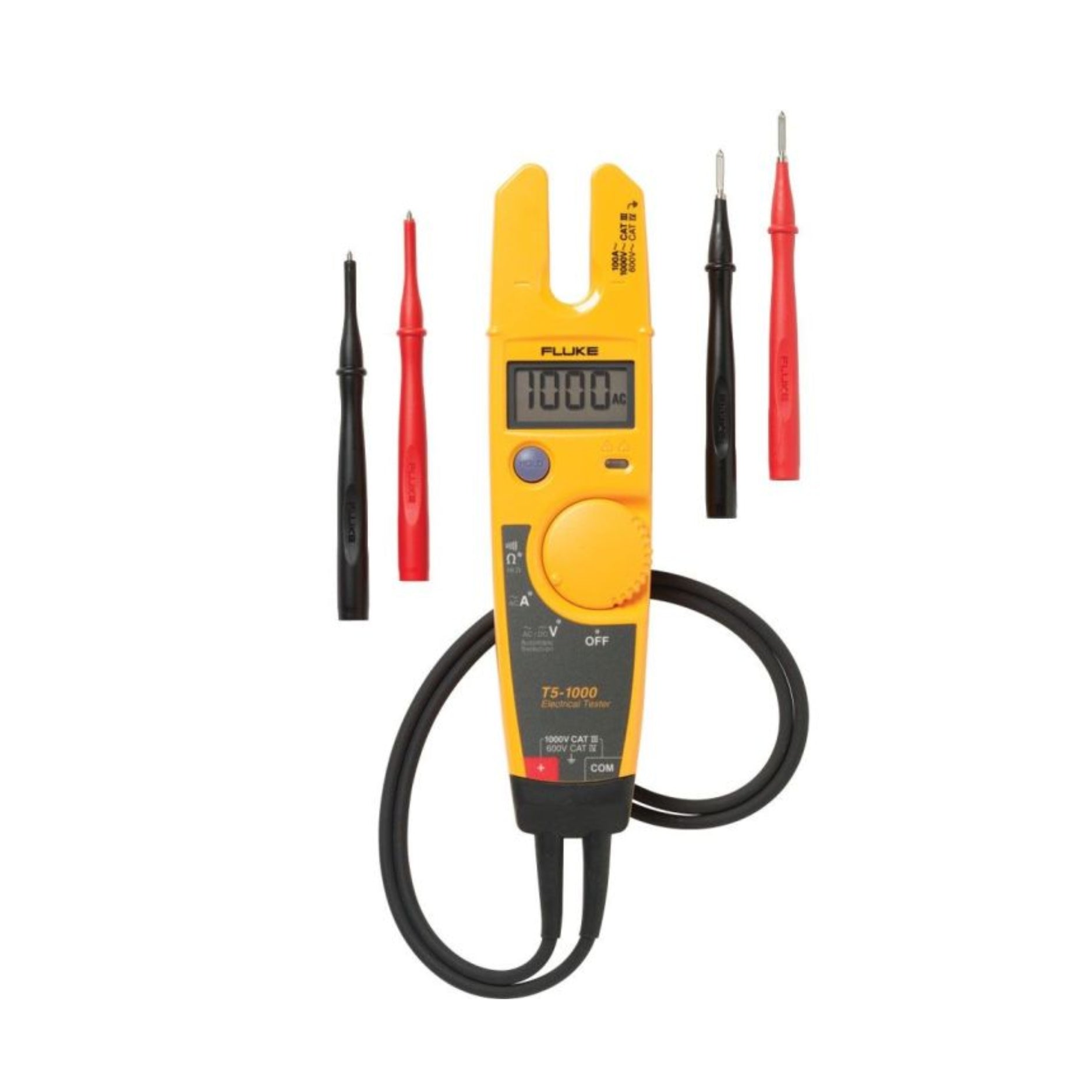

Fluke T5-1000 – Basic Voltage, Continuity, and Current Tester

Overview

The Fluke T5-1000 is a compact, rugged tester that measures voltage, continuity, and current in a single handheld tool. It automatically detects AC or DC voltage up to 1000 V, measures AC current up to 100 A using OpenJaw™ without breaking the circuit, and includes a resistance function with continuity beeper. Built for durability, it withstands drops, tight workspaces, and everyday use in industrial and residential environments.

Key Features

• Automatic AC/DC voltage measurement up to 1000 V

• OpenJaw™ clamp for AC current measurement up to 100 A

• Resistance measurement up to 1000 Ω

• Continuity beeper for quick checks

• Detachable SlimReach probe tips for tight spaces

• Rugged housing with 3 m drop resistance

• Auto-off function for extended battery life

• Safety rating: CAT IV 600 V / CAT III 1000 V

Technical Specifications

• Model: Fluke T5-1000

• Voltage Range (AC/DC): 0 … 1000 V

• Voltage Accuracy: AC ±1.5 % + 2 counts; DC ±1 % + 1 count

• AC Current Range: 0 … 100 A (OpenJaw)

• AC Current Accuracy: ±3 % + 3 counts (50/60 Hz)

• Resistance Range: 0 … 1000 Ω

• Continuity Threshold: beeper below ~25 Ω, off above ~400 Ω

• Jaw Opening: 12.9 mm (0.5 in)

• Max Conductor Size: up to 1/0 THHN cable

• Operating Temperature: –10 °C to +50 °C

• Storage Temperature: –30 °C to +60 °C (without batteries)

• Humidity: 0–95 % non-condensing up to 30 °C

• Altitude: up to 2000 m

• Drop Resistance: 3 m (10 ft)

• Power Supply: 2 × AA batteries

• Battery Life: ~200 hours (zinc-chloride), ~400 hours (alkaline)

• Dimensions (H × W × D): 203 × 51 × 30.5 mm

• Weight: ~300 g

• Safety Category: CAT IV 600 V / CAT III 1000 V

Applications

• Quick voltage, continuity, and current checks

• Residential, commercial, and industrial troubleshooting

• Field testing in tight panel spaces

• Everyday electrical maintenance with a rugged design

Why Choose the Fluke T5-1000

• Combines three essential test functions in one tool

• OpenJaw™ lets you measure current without circuit interruption

• Rugged and reliable with strong safety ratings

• Compact and easy to use with long battery life

Order Now

The Fluke T5-1000 is part of Fluke’s electrical tester lineup. Available for purchase. Ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
