Fluke T150

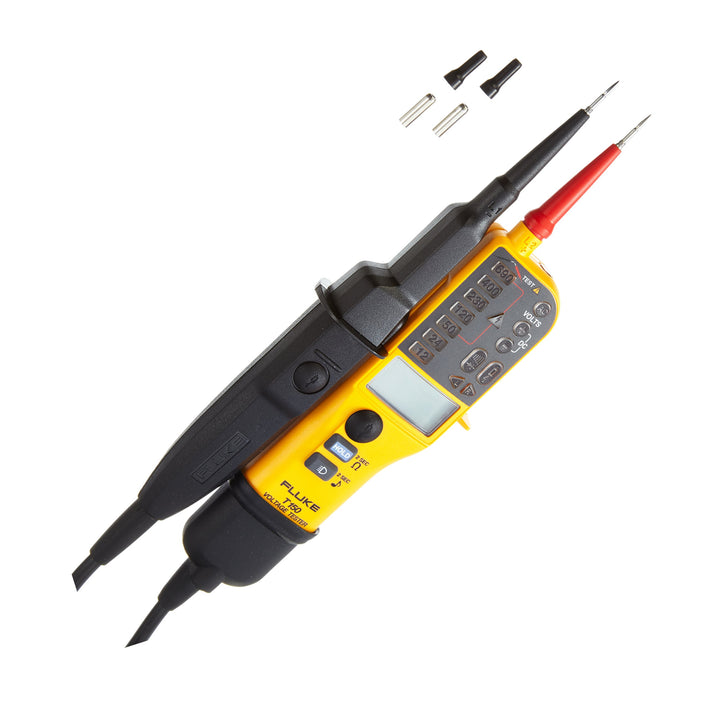

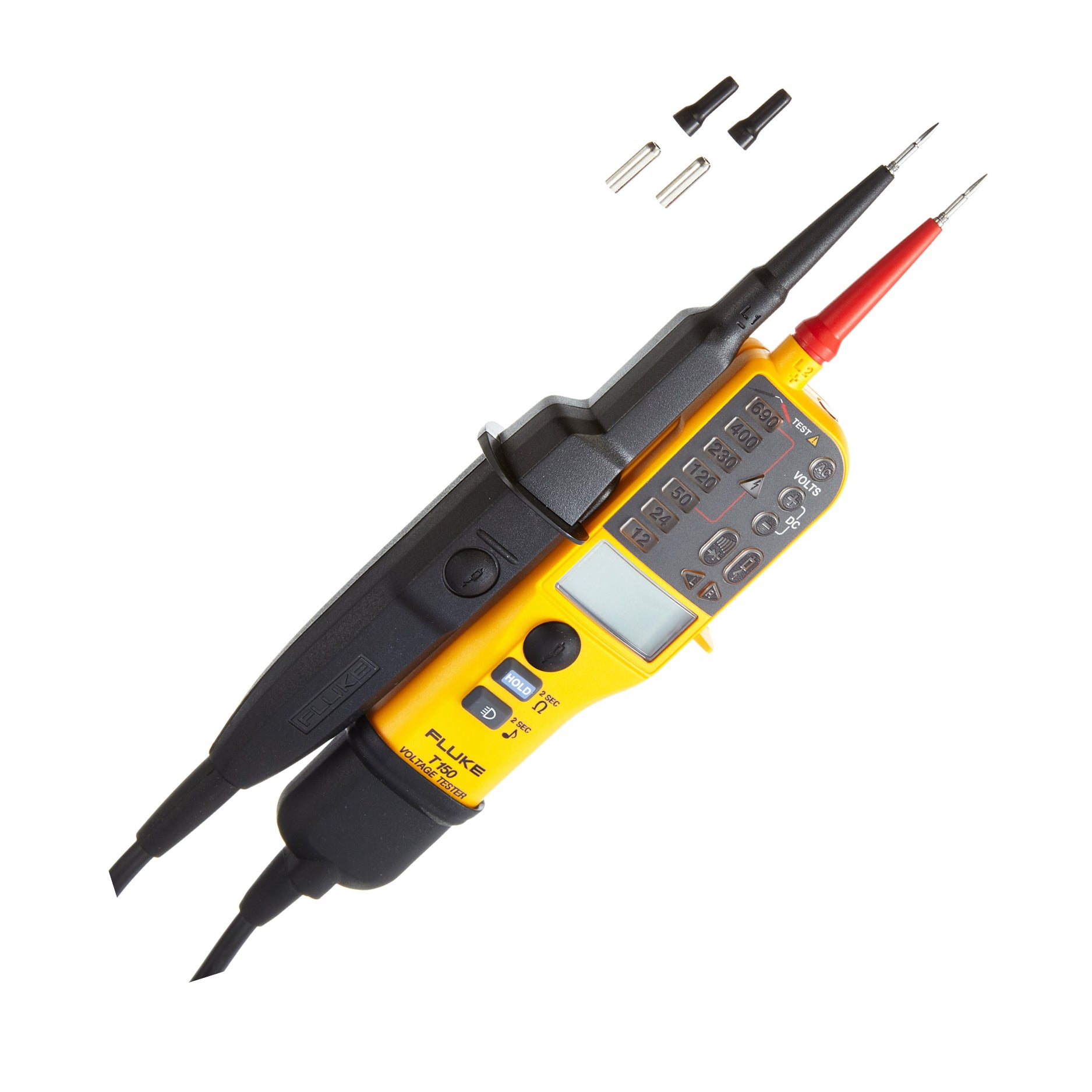

Fluke T150 – Voltage & Continuity Electrical Tester

Overview

The Fluke T150 is a durable two-pole tester for AC/DC voltage and continuity measurements. It features LCD display, resistance measurement to core values, switchable load to suppress ghost voltages, and multiple ways to indicate voltage presence. Built for reliable use in tough field conditions with safety ratings suitable for industrial environments.

Key Features

• Voltage detection AC/DC from ~6 V up to 690 V

• Continuity and resistance testing up to 1999 Ω

• Switchable load to help manage ghost voltages and test residual-current device (RCD) wiring

• LCD display for voltage / resistance plus multiple LED indicators

• Tactile/vibratory feedback, audible tone, and visual indicators for voltage presence

• Backlit display and buttons for low-light visibility

• Single-pole phase test, phase-rotation indicator (for 3-phase systems)

• Probe tip protection, secure probe docking; torch feature for dark areas

• IP64 protection rating; rugged cable and build for field use

Technical Specifications

• Model: T150

• Voltage Range (AC/DC): 6 V to 690 V

• Voltage Detection Resolution: ±1 V on LCD; categorical thresholds for LEDs (~12 V, 24 V, 50 V, etc.)

• Voltage Accuracy (LCD): approx. ±(3 % reading + 5 digits)

• Input Impedance: ~200 kΩ under no-load conditions; lowered (~7 kΩ) when switchable load is on

• Frequency Range for measurement: 0 or 40 to 400 Hz (depending on function)

• Resistance Range: 0 to 1999 Ω; continuity test up to ~400 kΩ

• Resistance Accuracy: approx. ±(5 % reading + 10 digits) at 20 °C

• Response Time (LED indication): ≤ 0.5 s under standard voltage conditions

• Power Supply: 2 × AAA batteries (Micro / LR03)

• Protection Rating / Safety Category: CAT IV 600 V / CAT III 690 V

• Environmental Protection: IP64 (dust and water spray protection)

• Operating Temperature: -15 °C … +45 °C

• Storage Temperature: -20 °C … +60 °C

• Physical Size & Weight: approx. 255 × 78 × 35 mm; ~0.27 kg

Applications

• Confirming presence or absence of voltage in circuits before maintenance

• Checking continuity, wiring connections, phase rotation in electrical installations

• Verifying outlets and device wiring under field conditions

• Utility work where safety, visibility and ruggedness are required

Why Choose the Fluke T150

• Multiple indicators (LED, LCD, audible, vibration) ensure safe detection even with discharged batteries

• Resistance measurement adds diagnostic value beyond simple voltage checks

• Switchable load helps reduce misleading readings and safer RCD testing

• IP64 rating and rugged design make it suited for outdoor or harsh industrial environments

Order Now

The Fluke T150 is part of Fluke’s basic voltage & continuity tester family. Available for purchase. Ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
