Fluke MS2-100

Fluke MS2-100 – Overview

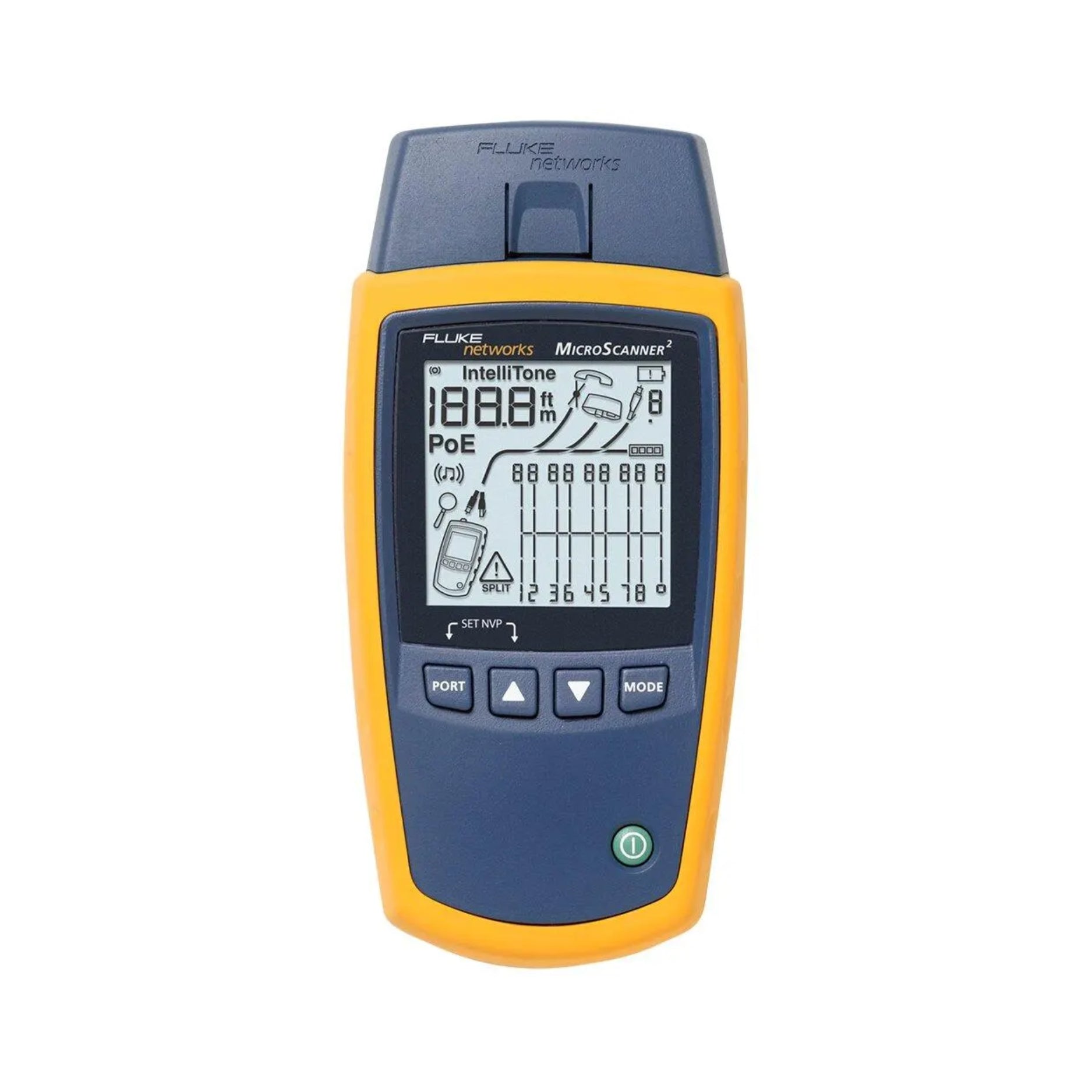

The Fluke MS2-100 MicroScanner2 Cable Verifier simplifies copper cable verification by displaying wiremap, cable length, and distance to fault in a single screen. It also detects service on active networks, including Ethernet, phone, and video, making it an indispensable tool for network technicians and installers. Its rugged design ensures durability in field conditions.

Key Features

• Wiremap testing for open, short, split, crossed, and reversed pairs

• Measures cable length and distance to fault

• Service detection for Ethernet, POTS, and video signals

• Backlit LCD with intuitive graphical interface

• Rugged housing with impact resistance

• Compact handheld design for field use

• Simple operation reduces testing time

Technical Specifications

• Model: Fluke MS2-100 MicroScanner2

• Cable Types: UTP, STP, Coax, RJ45, RJ11

• Maximum Cable Length: up to 460 m (1500 ft)

• Distance to Fault: precise TDR technology

• Wiremap: displays wiring errors (open, short, split, crossed, reversed)

• Service Detection: 10/100/1000 Mbps Ethernet, POTS, PoE, and video

• Display: Backlit LCD with icon-based navigation

• Connectors: RJ45, RJ11, Coax

• Power: 2 × AA batteries

• Operating Temperature: 0 °C to +45 °C

• Storage Temperature: –20 °C to +60 °C

• Dimensions: ~6.4 × 9.7 × 3.6 cm

• Weight: ~0.4 kg

Applications

• Verifying network cable integrity during installation

• Troubleshooting wiring faults and miswires

• Detecting active network services on lines

• Cable mapping and length validation for Ethernet and telecom systems

• Use in IT, telecom, and building infrastructure environments

Why Choose Fluke MS2-100

• Combines wiremap, length, and service detection in one tool

• Saves time with fast, graphical results

• Rugged and reliable for field technicians

• Industry-trusted accuracy and performance

Order Now

The Fluke MS2-100 MicroScanner2 Cable Verifier is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
