Fluke ii900

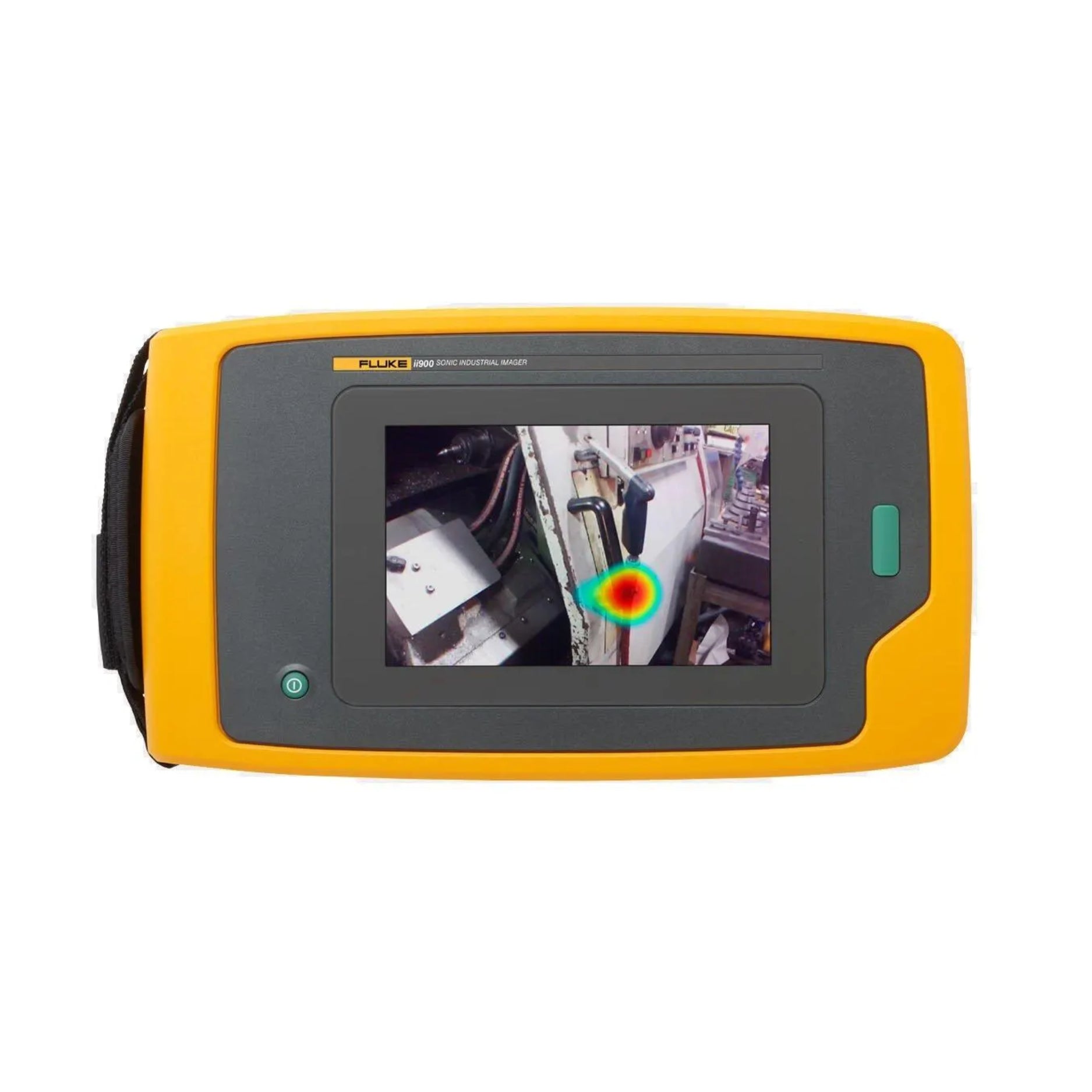

Fluke ii900 – Leak Detection via Acoustic Imaging

Overview

The Fluke ii900 is a handheld acoustic imager made to help maintenance teams find leaks in compressed air, gas, and vacuum systems quickly—even in noisy industrial environments. It uses a large array of microphones to capture ultrasound frequencies, overlays a SoundMap on a visual image, and provides tools for leak sizing, cost estimation, image tagging, and reporting. Its rugged enclosure and long battery life make it suitable for field use.

Key Features

• 64 digital MEMS microphones for wide acoustic coverage

• Frequency detection band: ~2 kHz to 52 kHz

• 7-inch capacitive touchscreen LCD, sunlight readable with backlight

• SoundMap overlay visualizes leak audio over live camera view

• LeakQ mode: estimates leak size, cost, and distance on the go

• CO₂ emission and cost reporting for leaks

• Image and video capture: tagging, annotation, storing & exporting

• Digital zoom (3×), fixed focus lens, field of view ~63° ± 5°

• Auto adjustable or manual frequency filtering to reduce background noise

Technical Specifications

• Model: ii900

• Number of Microphones: 64 digital MEMS

• Frequency Band: 2 kHz … 52 kHz

• Detection Range: ~0.5 m to >70 m (ambient conditions dependent)

• Field of View (camera): ~63° ± 5°

• Display: 7-inch LCD (1280 × 800 pixels), with capacitive touchscreen

• Camera: built-in visible-light, fixed lens

• Digital Zoom: 3×

• Frame Rate: ~25 fps

• Image Storage: large internal storage, accepts >5000 pictures, >999 videos

• Video Length per Clip: up to ~5 minutes

• Video/Image Formats: blended visual + SoundMap output in JPG/PNG for images, MP4 for video

• Sound Pressure Level Sensitivity: ranges from ~15 dB SPL to ~115 dB SPL at low-freq; higher levels at higher frequencies (approx. 40-133 dB SPL in upper bands)

• Battery: field-replaceable Li-ion; includes spare; ~6 hours runtime per battery; ~3 hours to charge

• Weight (with battery): ~1.8 kg

• Dimensions (H × W × D): ~186 × 322 × 68 mm

• Operating Temperature: -10 °C … +45 °C

• Storage Temperature: -20 °C … +70 °C (batteries removed)

• Relative Humidity: 10 % to 95 %, non-condensing

• IP Rating: IP40

• Warranty: 2 years

• Safety/Compliance: IEC 61010-1, EMC (IEC 61326), RoHS, etc

Applications

• Locating compressed air, vacuum, or gas leaks in industrial plants

• Verifying leak repairs and documenting savings in utilities

• Inspecting in noisy areas where traditional ultrasonic or acoustic sensors struggle

• Visualizing and quantifying leak volume and cost on site

Why Choose the Fluke ii900

• Fast visual leak detection with minimal training

• SoundMap overlay helps pinpoint precise leak location

• LeakQ cost/volume estimation aids in prioritizing repairs

• Rugged design, sunlight-readable display, and long battery life for field reliability

Order Now

The Fluke ii900 is part of Fluke’s industrial imaging line. Available for purchase. Ships worldwide.
