Fluke 9100S

Fluke 9100S – Overview

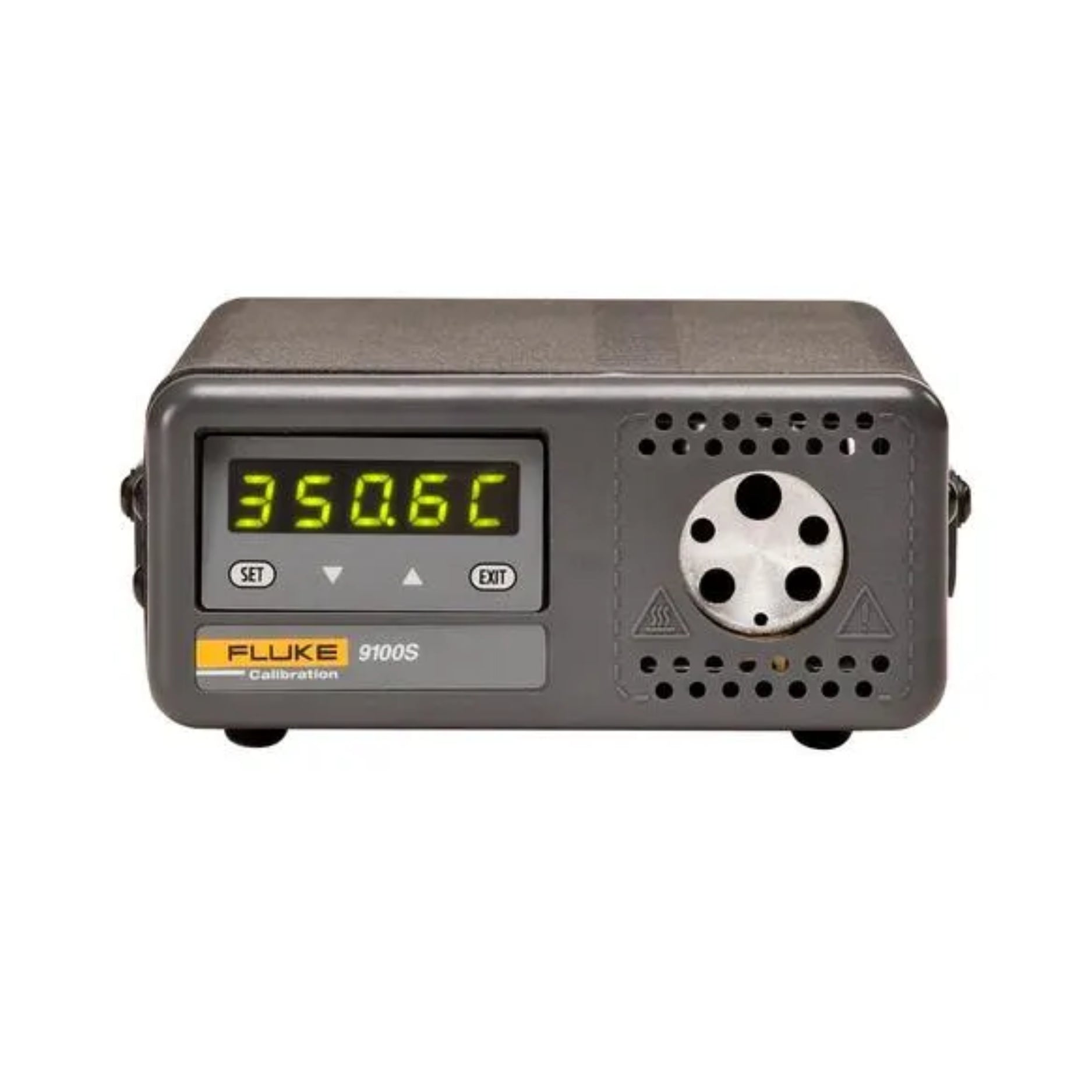

The Fluke 9100S is a portable dry-well temperature calibrator designed for field and workshop use. Compact and rugged, it provides stable and accurate temperature control for calibrating thermocouples, RTDs, and small temperature sensors. With fast stabilization, lightweight build, and simple operation, it’s ideal for professionals who need reliable temperature references on site.

Key Features

• Compact and portable handheld dry-well

• Temperature range: 35 °C to 375 °C

• High stability and uniformity for precise calibration

• Fast heating and cooling performance

• RS-232 interface for external control and logging

• Interchangeable well inserts for multiple probe types

• Easy-to-use front panel with clear display

• Lightweight design for field portability

Technical Specifications

• Model: Fluke 9100S

• Temperature Range: 35 °C to 375 °C

• Accuracy: ±0.25 °C (lower range), ±0.5 °C (upper range)

• Stability: ±0.07 °C at 50 °C, ±0.1 °C at 100 °C, ±0.3 °C at 375 °C

• Resolution: 0.1 °C

• Uniformity: ±0.2 °C well-to-well

• Heating Time: 35 °C to 375 °C in ~9.5 min

• Cooling Time: 375 °C to 100 °C in ~14 min

• Stabilization Time: ~5 min

• Well Depth: 102 mm, usable depth ~89 mm with small insert

• Power Supply: 115 V AC / 230 V AC, 12 V DC option

• Interface: RS-232

• Dimensions: 57 × 125 × 150 mm

• Weight: ~1.0 kg

Applications

• Calibration of thermocouples and RTD sensors

• On-site temperature probe verification

• Industrial process control diagnostics

• HVAC and instrumentation calibration tasks

• Portable reference in workshops or field conditions

Why Choose Fluke 9100S

• Combines portability with excellent performance

• High accuracy and stability in a small package

• Fast heat and cool times save testing time

• Designed for both lab and field environments

Order Now

The Fluke 9100S Handheld Dry-Well Temperature Calibrator is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
