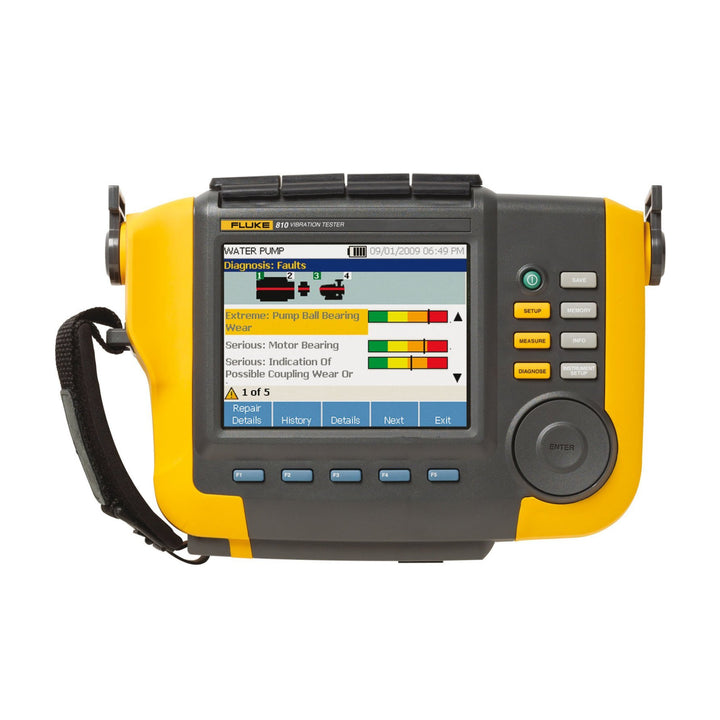

Fluke 810

Fluke 810 – Overview

The Fluke 810 is a powerful handheld vibration tester designed to help maintenance teams quickly identify common mechanical faults without requiring large amounts of historical data or extensive vibration analysis training. It provides plain-text diagnostics, severity levels, and repair recommendations—putting actionable insight into your hands. Ideal for motors, pumps, gearboxes, belts, and other rotating machinery.

Key Features

• Automatic detection and diagnosis of standard faults: unbalance, looseness, misalignment, bearing failures

• Overall vibration reading and spectral diagrams to assess machine health immediately

• Severity scale with four levels (slight, moderate, serious, extreme) for prioritizing repairs

• Plain-text diagnostic reports and guided repair recommendations

• Laser tachometer to measure machine speed precisely

• Context-sensitive help onboard to assist less-experienced users

• Rugged construction and accessories including tri-axial accelerometer and magnet mount kit

Technical Specifications

• Rotational Speed Range: 200 to 12,000 rpm

• Usable Frequency Bandwidth: ~5 Hz to 20 kHz

• Sampling Rates: 2.56 kHz to 51.2 kHz

• A/D Converter: 4-channel, 24-bit

• Dynamic Range: 128 dB

• Signal to Noise Ratio: 100 dB

• FFT Resolution: 800 lines; spectral window type: Hanning

• Display: 5.7-inch color TFT LCD, 320 × 240 pixels, LED backlight

• Memory: ~2 GB internal; user-accessible external memory slot

• Tachometer Range: 6 to 99,999 rpm; resolution 0.1 rpm; accuracy ±0.01 % / ±1 digit (lower rpm), ±0.05 % / ±1 digit (higher rpm)

• Power: Lithium-ion battery (~14.8 V, ~2.55 Ah), ~8 hours typical use, ~3 hours charge time

• Dimensions (HxDxW): ~18.56 × 7.00 × 26.72 cm

• Weight (with battery): ~1.9 kg

• Operating Temperature: 0 °C to +50 °C; Storage: -20 °C to +60 °C

• Environmental Conditions: 10 % to 95 % RH non-condensing; IP class suitable for industrial environments

Applications

• Industrial and mechanical maintenance: diagnosing motors, pumps, gearboxes, belts

• Prioritizing maintenance work by identifying severity of faults

• Commissioning and checking new rotating equipment

• Verifying repairs by comparing before/after vibration signature

Why Choose Fluke 810

• Delivers diagnostic capability even with minimal vibration history

• Helps non-specialists make informed repair decisions with plain-text recommendations

• High spectral resolution and broad frequency bandwidth reveal subtle degradation

• Includes accessories and rugged build for real-world field use

Order Now

The Fluke 810 Handheld Vibration Tester is available and ships worldwide.

New:

New product in original sealed packaging. The product may be of an older version or design. Packaging may show markings, discoloration, or signs of wear due to storage.

Refurbished:

Refurbished product fully tested, cleaned, and verified for proper operation. Not in original packaging. The item may show minor cosmetic signs resulting from previous handling or use.

Warranty:

DDPARTSSOLUTION Warranty: 1 Year.

Manufacturer’s warranty and support DO NOT apply.
