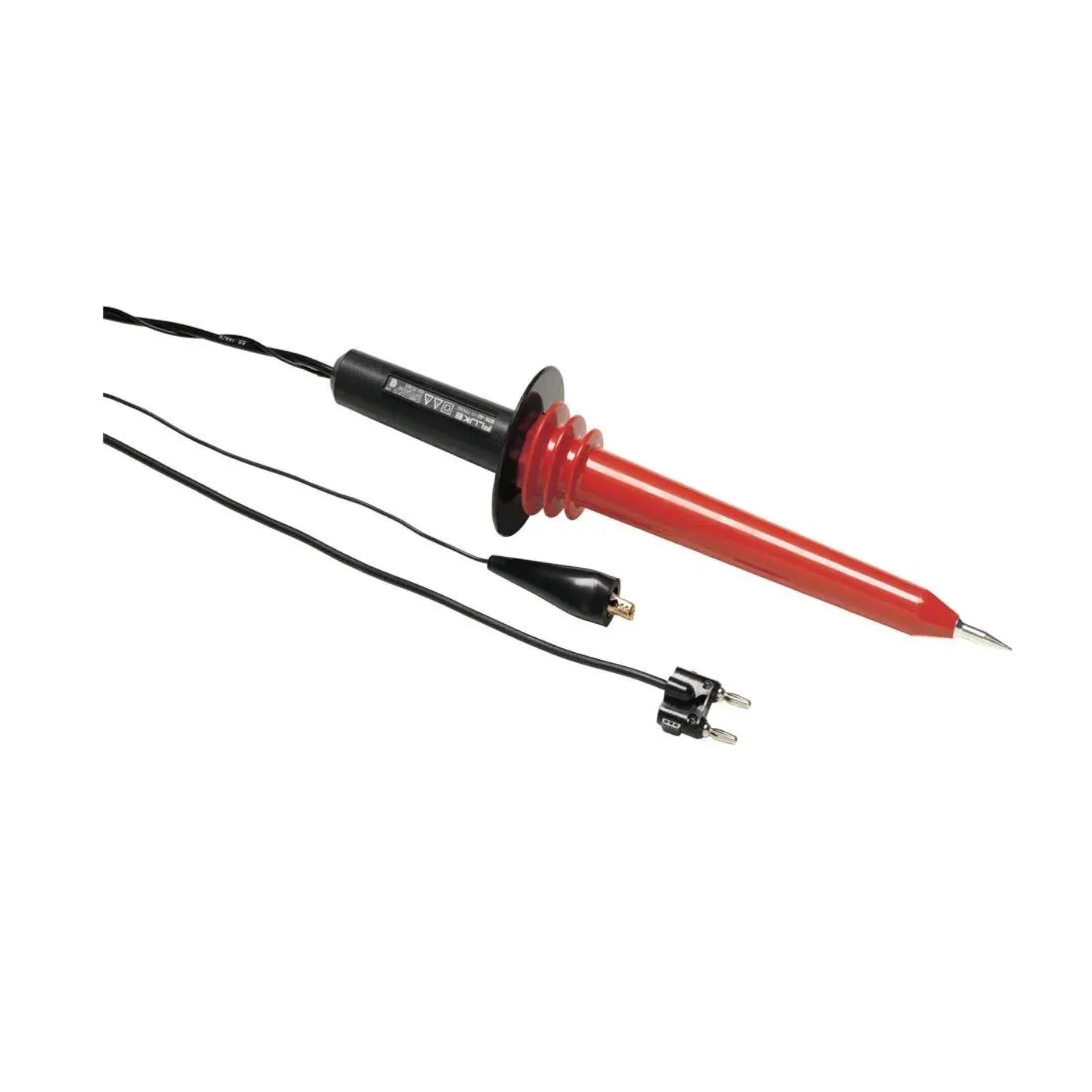

Fluke 80K-40

Fluke 80K-40 – Overview

The Fluke 80K-40 is a high-voltage probe designed to measure voltages up to 40 000 V by providing a 1000:1 attenuation ratio. It’s engineered to work with compatible digital multimeters and ScopeMeters, extending their reach into high-voltage domains such as power distribution, switchgear, and insulation testing. With its robust insulation and safety ratings, the 80K-40 helps professionals perform measurements in demanding electrical environments.

Key Features

• Measures up to 40 000 V DC or AC

• 1000:1 attenuation ratio, bringing high voltages into safe ranges for indicators

• Compatible with digital multimeters and scope inputs

• Rugged, insulated housing for high-voltage use

• Iconic safety features for HV probes

• Usable in power system diagnostics, medium- and high-voltage measurement

Technical Specifications

• Model: Fluke 80K-40

• Maximum Voltage: 40 000 V (DC or AC)

• Attenuation Ratio: 1000:1

• Input Voltage Range for Meter: up to 40 V on meter side

• Frequency Range: DC to ~400 Hz typical (verify for exact range)

• Accuracy: depends on meter + probe matching

• Impedance (meter + probe): combine per specification for correct loading

• Insulation: High-voltage rated insulation materials

• Safety Rating: designed for high-voltage environments per safety standards

• Connector Interface: typically standard HV connector to match meter

• Length / Build: probe body length suitable for standoff distance

• Operating Conditions: temperature, humidity as defined by manufacturer

Applications

• High-voltage measurements in substations, switchgear, and transformers

• Insulation testing and diagnostic measurements

• Power system maintenance and commissioning

• Calibration labs and high-voltage research

Why Choose Fluke 80K-40

• Allows existing multimeters and scopes to reach 40 kV safely

• High safety and insulation design for demanding HV use

• Trusted brand and compatibility with Fluke instruments

• Reduces need to carry dedicated high-voltage meters

Order Now

The Fluke 80K-40 high-voltage probe is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
