Fluke 805 FC

Fluke 805 FC – Overview

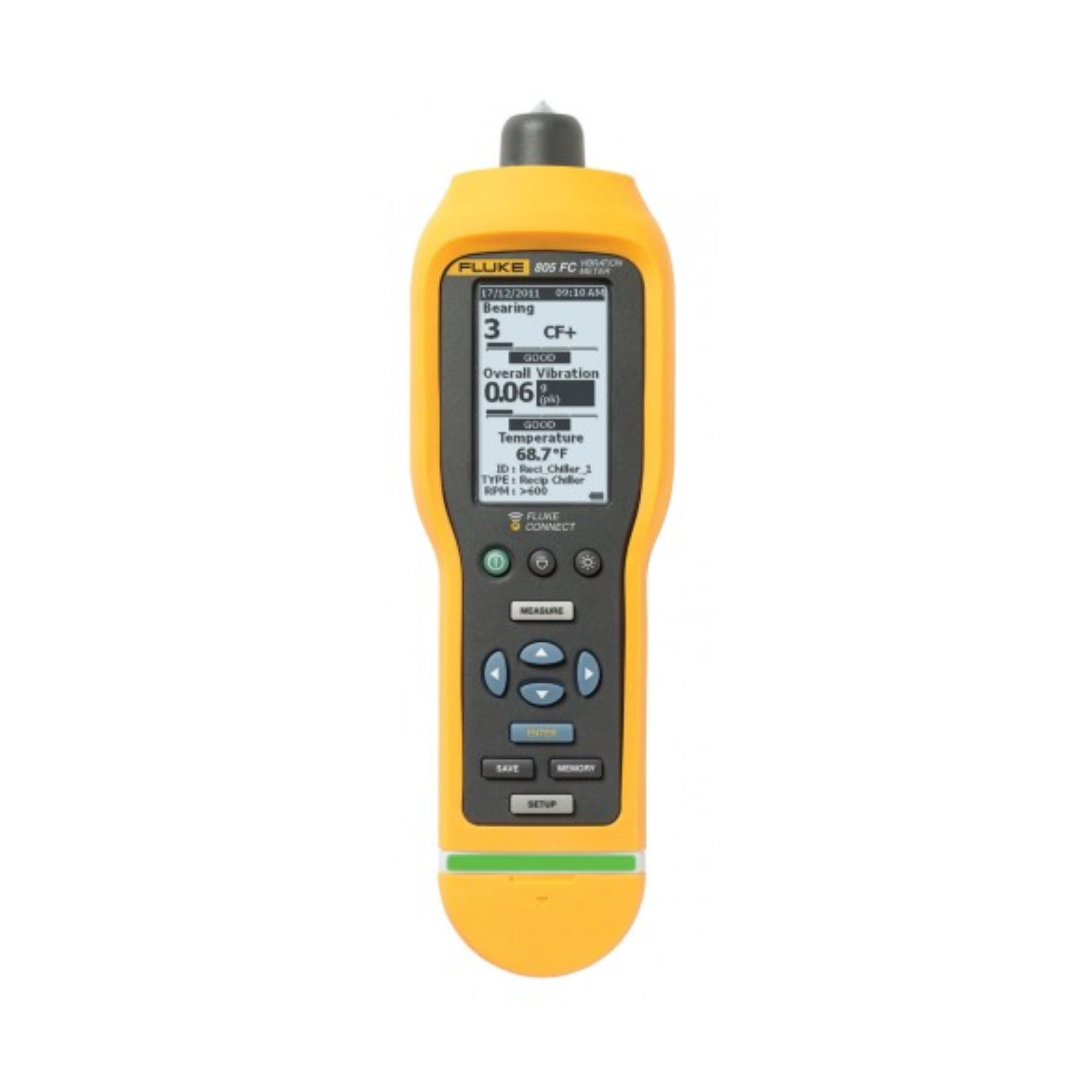

The Fluke 805 FC is a handheld vibration screening device that combines overall vibration measurement, bearing fault detection via CF+ (Crest Factor Plus), and infrared temperature in one tool. With Bluetooth wireless connectivity, it enables remote viewing and logging. This meter supports rapid go/no-go maintenance decisions by non-specialists while providing data for trending and diagnostics.

Key Features

• Measures both overall vibration (10–1,000 Hz) and bearing condition (CF+ 4–20 kHz)

• Infrared (IR) sensor for spot temperature measurement

• Bluetooth / wireless connectivity for data logging and remote display

• Built-in memory for ~3,500 readings

• Four severity levels (Good, Satisfactory, Unsatisfactory, Unacceptable)

• Color-coded display to indicate measurement quality

• Compact and rugged for field use

Technical Specifications

• Model: Fluke 805 FC

• Overall Vibration Frequency Range: 10 Hz to 1,000 Hz

• Bearing (CF+) Frequency Range: 4,000 Hz to 20,000 Hz

• Vibration Measurement Range: 0.01 g to 50 g

• Resolution: 0.01 g

• Accuracy: ±5 % (typical at ~100 Hz)

• IR Temperature Range: –20 °C to +200 °C

• IR Accuracy: ±2 °C

• Memory: ~3,500 readings

• Connectivity: Bluetooth / wireless for data export

• Display: Color LCD, intuitive user interface

• Battery: 2 × AA (Lithium Iron Disulfide or alkaline)

• Battery Life: ~250 measurements / use cycles

• Dimensions: ~24.1 × 7.1 × 5.8 cm

• Weight: ~0.40 kg

• Operating Temp: –20 °C to +50 °C

• Storage Temp: –30 °C to +80 °C

Applications

• Routine screening maintenance in factories, plants, and facilities

• Early detection of unbalance, misalignment, looseness, or bearing faults

• Trending of vibration and temperature over time

• Remote monitoring and condition-based maintenance tasks

Why Choose Fluke 805 FC

• Combines vibration and temperature measurements in one compact unit

• Bluetooth connectivity enables safe remote viewing

• Easy to use for non-specialists, with severity scales

• Memory and data logging support trending and analysis

Order Now

The Fluke 805 FC Wireless Vibration Meter is available and ships worldwide.
