Fluke 771

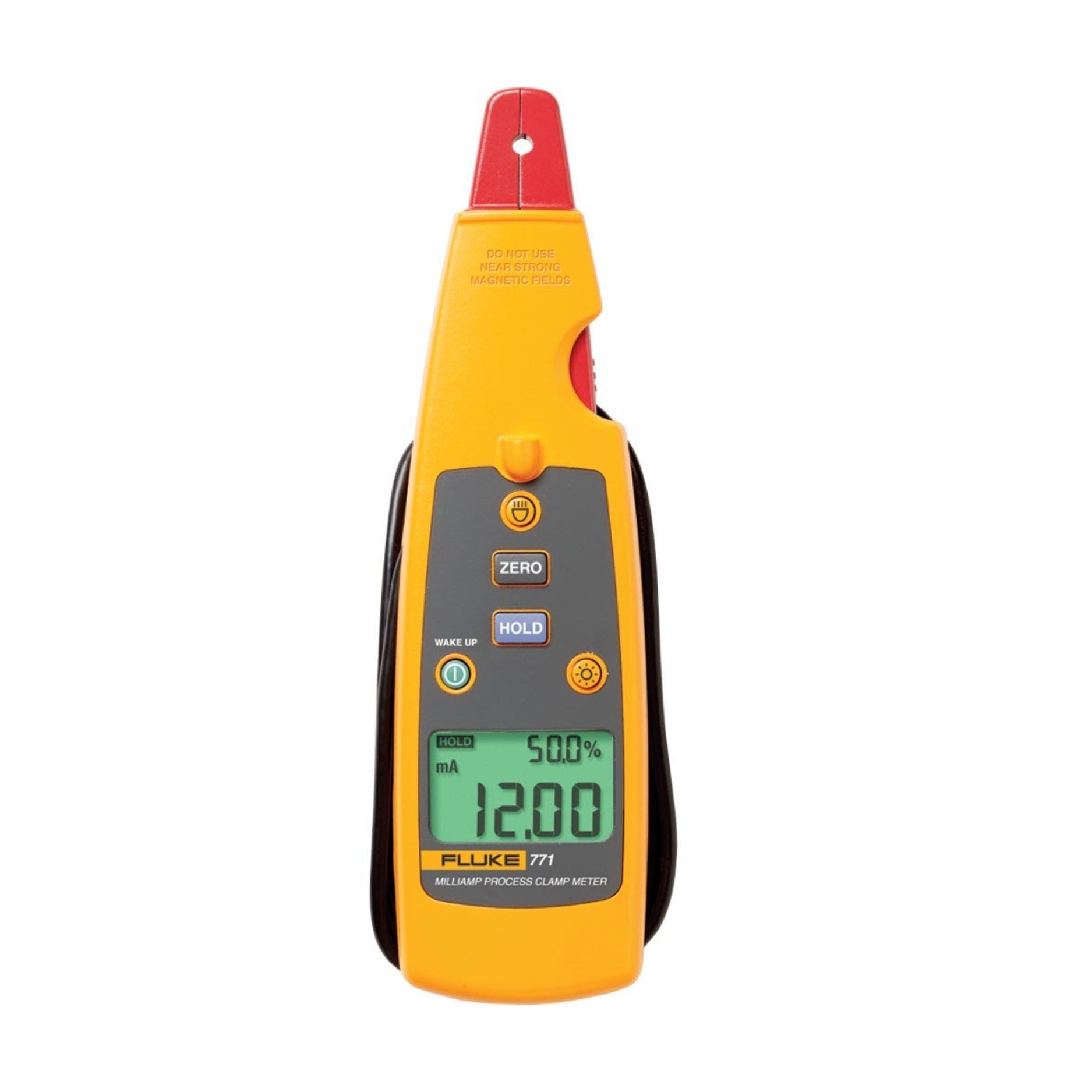

Fluke 771 – Milliamp Process Clamp Meter

Overview

The Fluke 771 is a clamp meter designed specifically for process control environments. It lets you measure milliamp current loops (4-20 mA and up to 100 mA) without breaking the loop, so you avoid interrupting critical systems. It has a remote detachable clamp for tight or awkward locations, a dual backlit display that shows mA and the percent of span of a 4-20 mA loop, and a built-in spotlight for working in low-light enclosures. It helps save time and improve safety for automation, PLC and instrumentation work.

Key Features

• Measure 4-20 mA signals without breaking the loop

• High accuracy of 0.20 % + 2 counts in lower range (0-20.99 mA)

• Resolution of 0.01 mA in the lower range

• Extended range up to 100.0 mA (99.9 mA) with reduced accuracy (1 % + 5 counts)

• Detachable remote clamp head with extension cable for tight areas

• Dual backlit display showing measured mA and percent of 4-20 mA span

• Hold function to freeze readings

• Integrated LED spotlight to illuminate wires in dark locations

• Soft carrying case included

• Trusted 3-year warranty for electronics; 1-year on clamp/cable assembly

Technical Specifications

• Model: 771

• Current Ranges (via clamp):
   - 0.00 to 20.99 mA, resolution 0.01 mA, accuracy 0.20 % + 2 counts
   - 21.0 to 100.0 mA, resolution 0.10 mA, accuracy 1 % + 5 counts

• Diameter of measurable conductor: up to 4.5 mm (0.177 in)

• Operating Temperature: -10 °C to +50 °C

• Storage Temperature: -25 °C to +70 °C

• Operating Humidity: < 90 % at < 30 °C; < 75 % at 30-55 °C

• Operating Altitude: 0 to 2000 m

• Ingress Protection Rating: IP 40

• Size (H × W × Depth): 59 × 38 × 212 mm

• Weight: ~260 g

• Vibration: Random 2 g, 5-500 Hz

• Shock: 1 m drop (except the clamp jaw)

• Electromagnetic Compatibility: Meets EN 61326-1

• Temperature Coefficient: 0.01 % per °C outside 18-28 °C range

• Power Supply: 2 × AA 1.5 V alkaline batteries

• Battery Life: ~40 hours typical use

• Warranty: 3 years on electronics; 1 year on cable/clamp assembly

Applications

• Troubleshooting 4-20 mA loops in process plants without interrupting control circuits

• Checking analog I/O status in PLCs and instrumentation without breaking loops

• Verifying old systems with 10-50 mA ranges using the 99.9 mA mode

• Field work in tight or recessed areas using the detachable clamp and spotlight

Why Choose the Fluke 771

• Saves downtime by allowing live loop measurements without circuit interruption

• High resolution and accuracy for precise process control diagnostics

• Remote clamp and clamp cable make it safer and more flexible in challenging spaces

• Robust design, safety protections and excellent warranty support

Order Now

The Fluke 771 is part of Fluke’s process clamp meter family. Available for purchase. Ships worldwide.
