Fluke 754

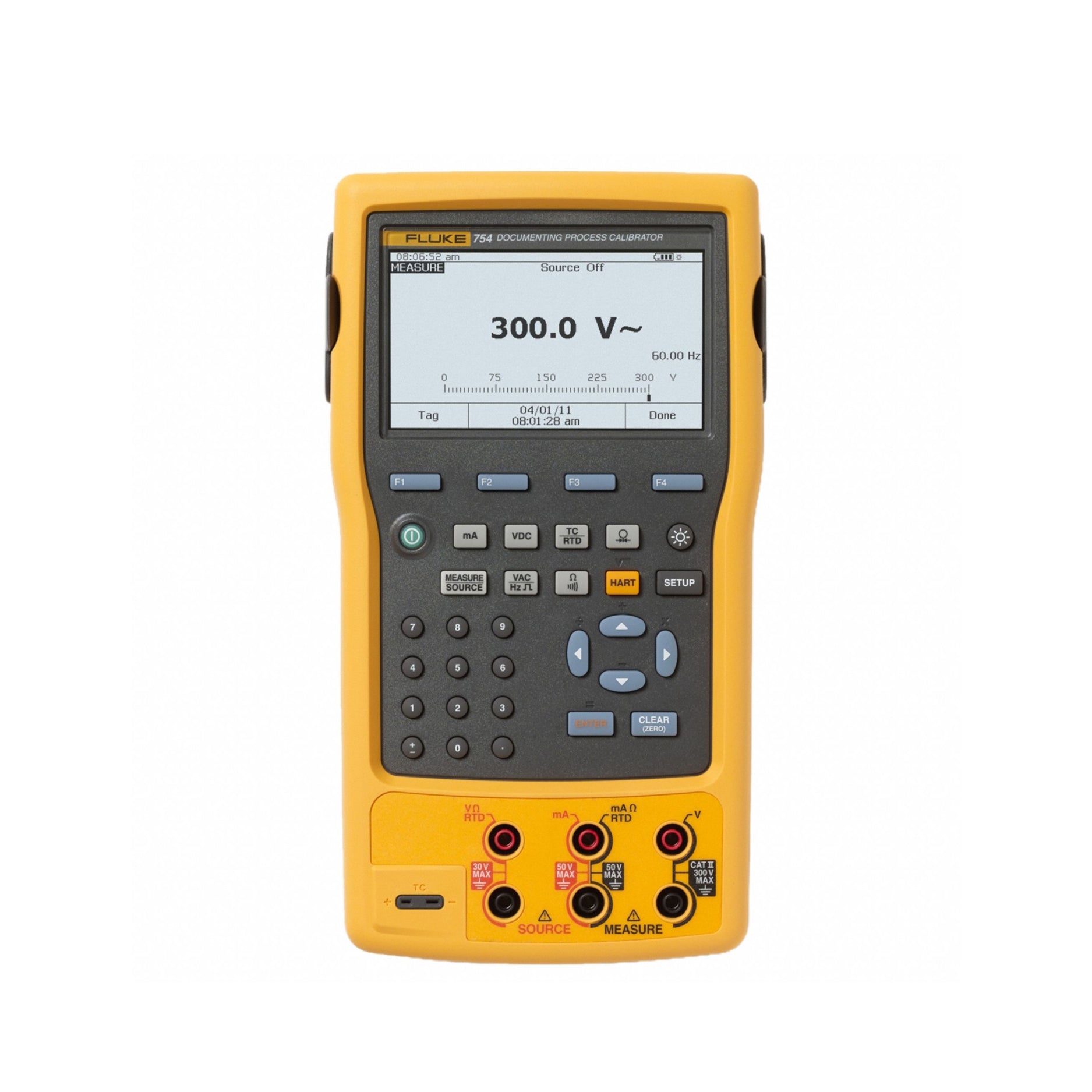

Fluke 754 – Documenting Process Calibrator-HART

Overview

The Fluke 754 is a rugged handheld calibrator that combines measuring, sourcing and simulating of electrical signals, temperature sensors, pressure modules and HART smart devices in one tool. It automates calibration procedures, records results for documentation, supports fast pulsed RTDs or PLC inputs and includes built-in HART communication. Designed for calibration, maintenance and field use in demanding environments.

Key Features

• Measure, source and simulate voltage, current, resistance, temperature, frequency and pressure

• Built-in HART communication for smart transmitter configuration and calibration

• Stores and documents calibration procedures with automatic recording

• Loop power with selectable 26 V to power field devices

• Handles fast pulses down to 1 ms for RTD or PLC inputs

• Dual display for viewing source and measure values simultaneously

• Rechargeable Li-ion battery providing more than 8 hours of typical operation

• Rugged design with IP52 rating, built for field environments

Technical Specifications

• Model: Fluke 754

• DC Voltage Measure Range: up to 300 V

• AC Voltage Measure Range: up to 300 V, 40–500 Hz

• Current Source/Simulate: up to 24 mA

• DC Voltage Source Range: up to 10 V

• Resistance Measure/Source Range: 0–10 kΩ depending on range selected

• Frequency Source/Measure: 0.1 Hz to 50 kHz

• Thermocouple and RTD support for multiple sensor types

• Pressure measurement with up to 29 pressure modules

• Data log capacity: up to one week of procedures and results

• Loop Power Output: 26 V

• Display: dual channel, backlit, multilingual interface

• Battery: rechargeable Li-ion pack, 7.2 V, 4400 mAh, life > 8 hours

• Size: 136 × 245 × 63 mm

• Weight: approximately 1.2 kg

• Operating Temperature: -10 °C to +50 °C

• Storage Temperature: -20 °C to +60 °C

• Protection Rating: IP52

• Safety: CAT II 300 V

Applications

• Calibration of transmitters, sensors and control devices

• Documentation of calibration for compliance and quality systems

• HART smart device configuration and testing

• Process loop troubleshooting with source and measure in one tool

• Field service in demanding industrial environments

Why Choose the Fluke 754

• Combines multiple calibration functions into a single rugged instrument

• Saves time with automatic documentation and stored procedures

• Built-in HART communication eliminates need for separate communicator

• Reliable accuracy, battery life and durability for industrial use

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
