Fluke 712B

Fluke 712B – Overview

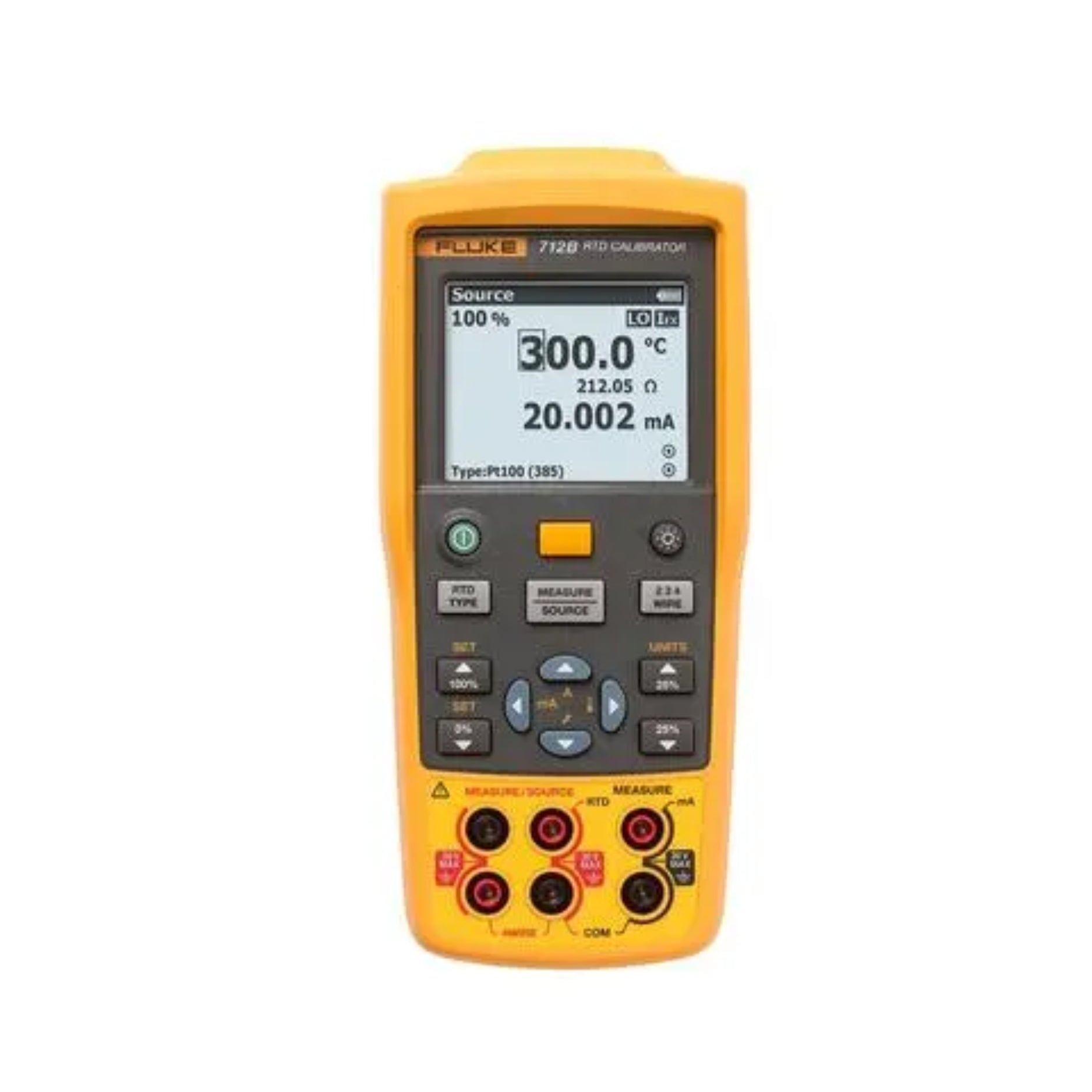

The Fluke 712B is a handheld RTD (Resistance Temperature Detector) calibrator that can both measure and simulate RTD signals, making it a valuable tool for field and laboratory calibration. It supports 13 RTD types, features simultaneous 4–20 mA measurement while sourcing RTD output, and includes ramp and step functionality for linearity testing and calibration procedures. Its rugged form, magnetic mounting, and memory of previous settings make it especially convenient for on-site use.

Key Features

• Measure and simulate 13 standard RTD sensor types

• Simultaneous 4–20 mA measurement while sourcing RTD output

• Ramp and 25% step functionality for performance tests

• Programmable 0 % / 100 % source modes for quick checks

• Magnetic hanger for hands-free operation

• Backlit dual-input display

• Remembers last settings upon power-off

• Durable design built for field conditions

Technical Specifications

• Model: Fluke 712B

• Maximum voltage between any terminal or to earth: 30 V

• Operating temperature range: –10 °C to +50 °C

• Storage temperature range: –30 °C to +60 °C

• Humidity: 90 % RH at 10–30 °C, decreasing to 45 % RH at 40–50 °C

• Drop resistance: 1 m

• Ingress protection: IP52

• Power: 4 × AA batteries

• Size: 52.5 × 84 × 188.5 mm

• Weight: ~515 g

RTD & Source Performance

• RTD types supported: 13 (e.g. Pt100, Pt500, Ni120, etc.)

• RTD simulation accuracy (typical): ±1.5 °C at 10 Ω Cu; ±0.15 °C for 120 Ω Ni

• Ohms source / measure range: up to 4000 Ω; accuracy ±0.015 % + offset

• 4–20 mA measurement accuracy: ±0.010 % + 2 µA

• Temperature coefficient outside 18–28 °C: ±(0.002 % reading + 0.002 % range) per °C

Applications

• Calibration and verification of RTD probes and sensors

• Commissioning and maintenance of temperature measurement loops

• Linearity and ramp testing of RTD / loop systems

• On-site calibration in industrial and HVAC environments

Why Choose Fluke 712B

• Combines simulation and measurement in one portable unit

• Wide RTD compatibility ensures flexibility

• Features like ramp/step and loop measurement streamline work

• Built for field use: rugged, memory recall, magnetic mount

Order Now

The Fluke 712B RTD Temperature Calibrator is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
