Fluke 62 MAX

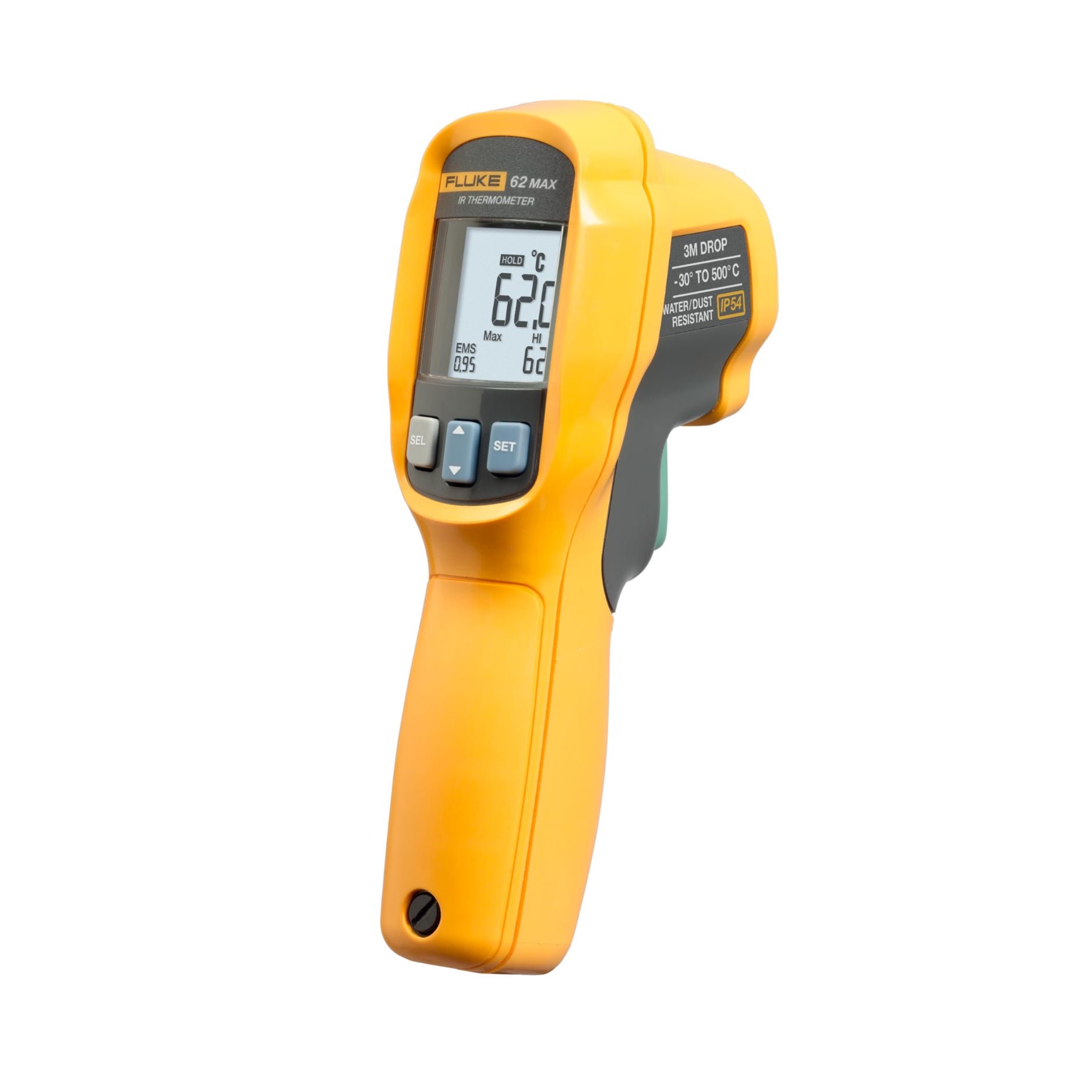

Fluke 62 MAX – Mini Infrared Thermometer

Overview

The Fluke 62 MAX is a tough, compact infrared thermometer for non-contact surface temperature measurements. Designed for electrical, HVAC, mechanical, and industrial environments, it includes laser targeting, backlighting, and rugged protection. It measures temperatures from -30 °C to 500 °C, offers good accuracy, and is built to withstand drops, dust, and moisture so it can endure harsh job site conditions.

Key Features

• Temperature range: -30 °C … +500 °C (-22 °F to 932 °F)

• 10:1 distance-to-spot ratio for accurate targeting

• Single laser aiming for precise measurements

• Backlit display for readings in dim conditions

• Min / Max / Average / Difference functions

• IP54 rated for protection from dust and splashes

• Drop tested to 3 meters for rugged durability

• Powered by one standard AA battery

• Lightweight, ergonomic form factor

Technical Specifications

• Model: 62 MAX

• Measurement Range: -30 °C … +500 °C (-22 °F … +932 °F)

• Accuracy: ±1.5 °C or ±1.5 % of reading, whichever is greater

• Sub-ranges:
   - From -10 °C to 0 °C: ±2.0 °C
   - From -30 °C to -10 °C: ±3.0 °C

• Response Time (95 % of value): < 500 ms

• Spectral Response: 8 to 14 microns

• Emissivity Range: 0.10 to 1.00 (adjustable or fixed)

• Optical Resolution (D:S): 10:1 (calculated at 90 % energy)

• Display Resolution: 0.1 °C (0.2 °F)

• Repeatability: ±0.8 % of reading or < ±1.0 °C, whichever is greater

• Power Source: 1 × AA battery

• Battery Life: approx. 10 hours with laser & backlight on

• Operating Temperature: 0 °C to +50 °C

• Storage Temperature: -20 °C to +60 °C (without battery)

• Weight: ~255 g

• Size: approx. 175 × 85 × 75 mm

• Operating Humidity: 10 % to 90 % RH non-condensing at 30 °C

• Altitude (operation): up to 2000 m

• Altitude (storage): up to 12,000 m

• IP Rating: IP54 per IEC 60529

• Drop Resistance: 3 m (9.8 ft)

• Vibration & Shock: meets IEC vibration & shock standards

• Safety / Laser: Complies with IEC/EN 61010-1 & class II laser safety

Applications

• Checking surface temperatures on electrical panels, motors, pipes, HVAC equipment

• Predictive maintenance and detecting hot spots

• Working in dusty, damp, or rough‐use environments

• Situations where non-contact temperature measurement is safer or more convenient

Why Choose the Fluke 62 MAX

• Compact yet rugged design tolerates harsh job-site conditions

• Good accuracy and range for many industrial and mechanical use cases

• Features like Min/Max/Average/Difference help monitor trending or anomalies

• IP54 rating, drop resistance, and battery power make it portable and reliable

Order Now

The Fluke 62 MAX is part of Fluke’s IR thermometer lineup. Available for purchase. Ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
