Fluke 376

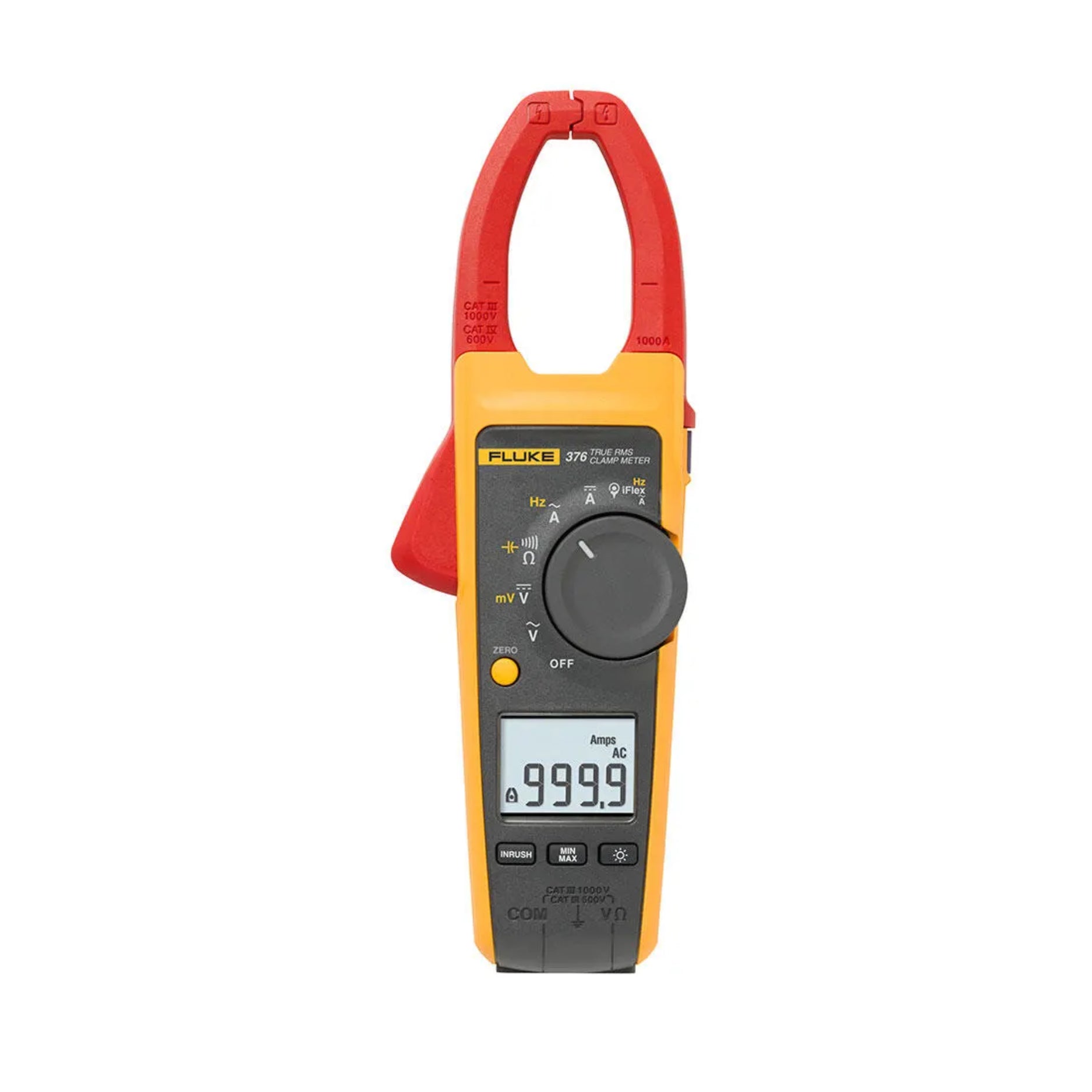

Fluke 376 – AC DC Clamp Meter with Extended Range

Overview

The Fluke 376 is a high-performance clamp meter designed for industrial electricians and maintenance technicians. It measures true-RMS AC and DC voltage and current, with extended range through the iFlex flexible current probe. Features include inrush capture, low-pass filter for variable frequency drives, and resistance and capacitance measurement. Built tough for demanding environments with CAT safety ratings.

Key Features

• True-RMS measurement for both AC and DC voltage and current

• Voltage up to 1000 V AC or DC

• Current up to 1000 A with jaw clamp

• Up to 2500 A AC with included iFlex flexible probe

• iFlex probe allows access to large conductors and tight spaces

• Inrush capture for motor startup analysis

• Low-pass filter for accurate VFD measurements

• Resistance, capacitance, continuity testing

• Min, Max, and Average recording

• Large backlit display with ergonomic design

Technical Specifications

• Model: Fluke 376

• AC Current (Jaw): up to 1000 A, accuracy ~2 percent ± 5 digits (10–100 Hz)

• AC Current (iFlex): up to 2500 A, accuracy ~3 percent ± 5 digits (5–500 Hz)

• DC Current: up to 1000 A, accuracy ~2 percent ± 5 digits

• AC Voltage: up to 1000 V, accuracy ~1.5 percent ± 5 digits (20–500 Hz)

• DC Voltage: up to 1000 V, accuracy ~1 percent ± 5 digits

• Resistance Range: up to 60 kΩ

• Capacitance Range: up to 1000 µF

• Frequency Range: 5 Hz to 500 Hz

• Jaw Opening: 34 mm

• iFlex Cable Length: 1.8 m

• Operating Temperature: 10 °C to 50 °C

• Storage Temperature: -40 °C to +60 °C

• Humidity (non-condensing): up to 90 percent at 10–30 °C

• Altitude (Operating): up to 3000 m

• Safety Rating: CAT IV 600 V / CAT III 1000 V

Applications

• Industrial troubleshooting with high current and voltage

• Measuring current in large conductors with flexible probe

• Startup and inrush current diagnostics

• Electrical panels and equipment powered by VFDs

• Maintenance checks with capacitance and resistance

Why Choose the Fluke 376

• Extended current range with iFlex probe up to 2500 A

• True-RMS accuracy for noisy or distorted signals

• Inrush capture for analyzing equipment startup

• Rugged design with strong safety certification

Order Now

The Fluke 376 is part of the 370-series clamp meters. Available for purchase. Ships worldwide.
