Fluke 376 FC

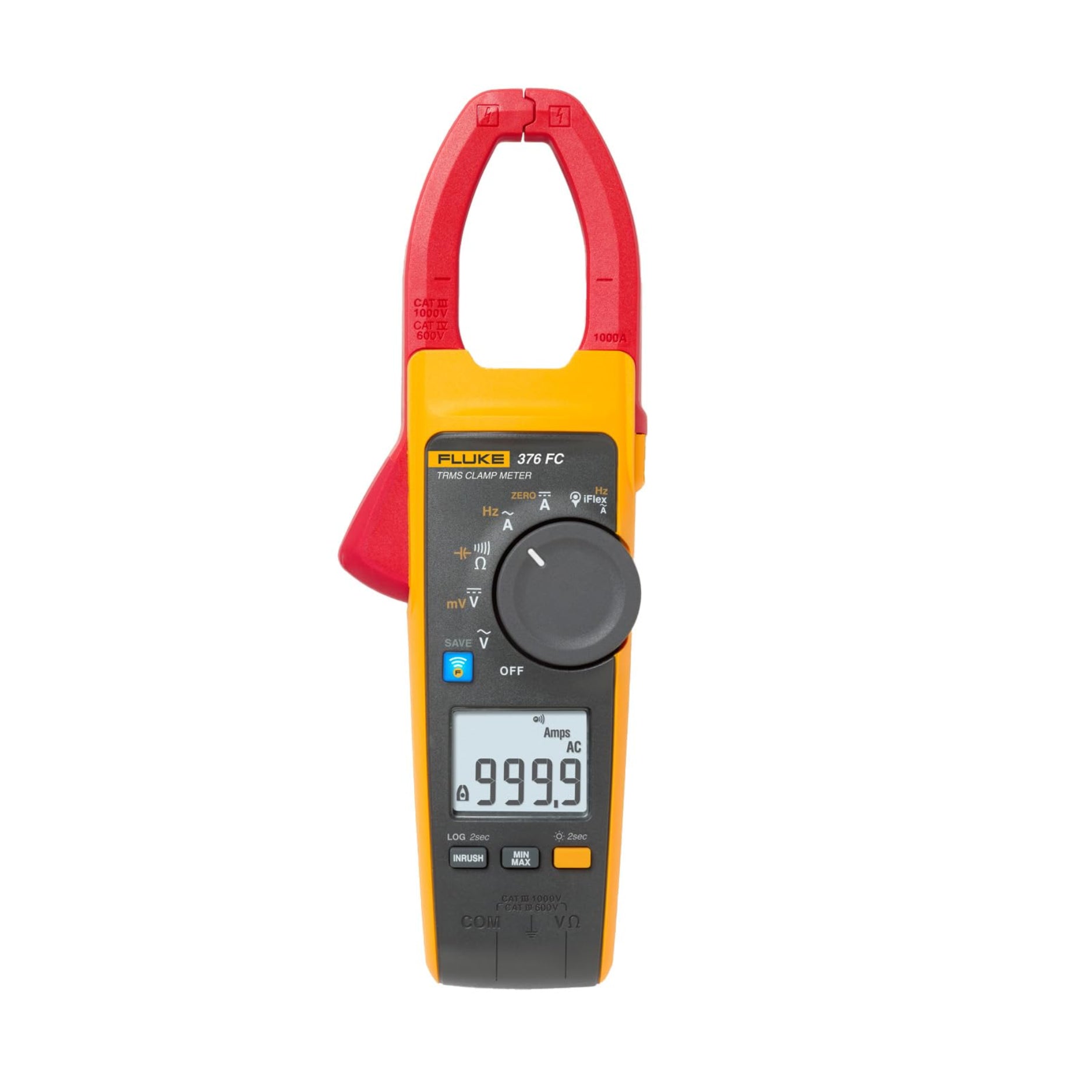

Fluke 376 FC – AC DC Clamp Meter with Extended Range

Overview

The Fluke 376 FC is a high-performance clamp meter for industrial and commercial electricians. It features true-RMS measurement of AC and DC current and voltage, VFD low-pass filter for non-linear loads, inrush capture, and an included flexible current probe (iFlex) for large conductors or awkward locations. It supports resistance, capacitance, frequency, has Bluetooth connectivity for remote logging and trending, and is built for safety with rugged ratings.

Key Features

• True-RMS AC and DC measurements for voltage and current

• Fixed jaw current up to 1000 A AC or DC

• iFlex probe extends AC current range to 2500 A for large conductors

• VFD low-pass filter for cleaner readings under distorted waveforms

• Inrush measurement to capture motor startup current accurately

• Measure resistance, capacitance, frequency and DC millivolts

• Min, Max and Average recording functions

• Bluetooth connectivity to log, trend and monitor remotely

• Large backlit display with auto ranging

• Strong safety rating for user protection

Technical Specifications

• Model: 376 FC

• AC Current via Fixed Jaw: range to 999.9 A; resolution 0.1 A; accuracy ~2 % ±5 digits (10-100 Hz), ~2.5 % ±5 digits (100-500 Hz) (Farnell)

• AC Current via iFlex Probe: up to 2500 A; resolution 0.1 A ≤ ~600 A, 1 A above; accuracy around 3 % ±5 digits (5-500 Hz) (Farnell)

• DC Current: up to 999.9 A; resolution 0.1 A; accuracy ~2 % ±5 digits (Fluke)

• AC Voltage: up to 1000 V; resolution 0.1 V (≤ 600 V), 1 V (1000 V); accuracy ~1.5 % ±5 digits (20-500 Hz) (Farnell)

• DC Voltage: up to 1000 V; resolution 0.1 V; accuracy ~1 % ±5 digits (Farnell)

• Frequency: via jaw and via iFlex; 5.0 Hz to 500.0 Hz; resolution 0.1 Hz; accuracy ~0.5 % ±5 digits (Farnell)

• Resistance Range: up to 60 kΩ; resolution varies (0.1 Ω at low range up to 10 Ω at high range) (Farnell)

• Capacitance: up to 1000 µF; resolution 1 µF; accuracy ~1 % ±4 digits (Farnell)

• DC Millivolts: range to 500 mV; resolution 0.1 mV (fluke-direct.com)

• Jaw Opening: 34 mm (Farnell)

• Flexible Probe Cable Length: ~1.8 m from head to electronics connector (Farnell)

• Operating Temperature: -10 °C to +50 °C (Farnell)

• Storage Temperature: -40 °C to +60 °C (Farnell)

• Humidity (non-condensing): up to 90 % RH from 10-30 °C; decreasing at higher temps (e.g. 75 % at 30-40 °C; 45 % at 40-50 °C) (Farnell)

• Size (L × W × H): ~249 × 85 × 45 mm (Farnell)

• Weight: ~395 g (My Fluke Store)

• Maximum Voltage between any Terminal and Earth Ground: 1000 V (Farnell)

• Safety Ratings: CAT III 1000 V and CAT IV 600 V; Pollution Degree 2 (Farnell)

Applications

• Industrial troubleshooting where high currents and large conductors are common

• Measuring in environments with variable frequency drives or distorted waveforms

• Capturing motor startup inrush current for predictive maintenance

• Remote logging and trend analysis via Bluetooth for safety and efficiency

• Checking resistance, capacitance, frequency in the same tool

Why Choose the Fluke 376 FC

• Combines wide current and voltage ranges with high safety protections

• iFlex probe gives flexibility and reach for large cables or hard to access places

• Features like inrush capture and low-pass filtering ensure accuracy under challenging conditions

• Wireless logging helps document work without compromising safety

Order Now

The Fluke 376 FC is part of Fluke’s 370-FC clamp meter series. Available for purchase. Ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
