Fluke 324

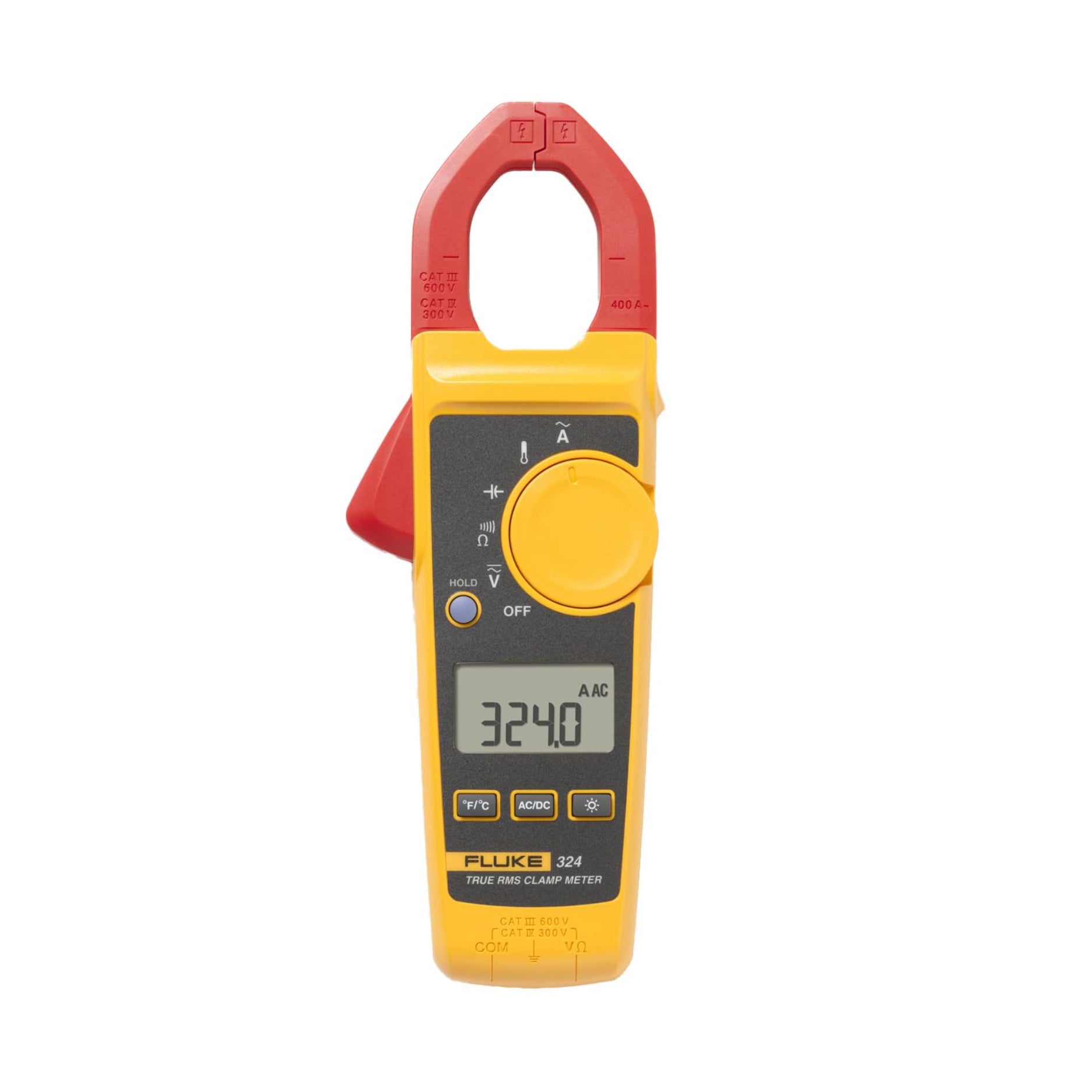

Fluke 324 – Clamp Meter with Expanded Function for HVAC and Maintenance

Overview

The Fluke 324 is a rugged clamp meter for electricians and HVAC professionals. It provides true-RMS measurements for AC current (up to 400 A) and AC/DC voltage (up to 600 V), along with resistance, continuity, temperature, and capacitance functions. It includes a backlight and data hold for field convenience, a slim jaw design, and strong safety ratings, making it suited for tough environments and a wide variety of test tasks.

Key Features

• True-RMS measurement for AC voltage and AC current

• AC current range up to 400 A through the clamp jaw

• AC/DC voltage measurement up to 600 V

• Resistance up to 4 kΩ with continuity detection below 30 Ω

• Temperature measurement from -10 °C to +400 °C (14 °F to 752 °F)

• Capacitance measurement from 0 to 1000 µF

• Large backlight display for use in dim conditions

• Data hold function to freeze reading on display

• Soft carrying case and two-year warranty included

Technical Specifications

• Model: 324

• AC Current Range (Jaw): 40.00 A / 400.0 A

• AC Current Accuracy: 1.5 % ± 5 digits (45 Hz to 400 Hz)

• AC/DC Voltage Range: up to 600 V

• Voltage Accuracy: AC 1.5 % ± 5 digits; DC 1.0 % ± 5 digits

• Resistance Range: 400 Ω / 4000 Ω

• Resistance Accuracy: 1.0 % ± 5 digits

• Continuity Threshold: ≤ 30 Ω

• Capacitance Range: 0-100 µF / 100-1000 µF

• Temperature Range: -10 °C to +400 °C; resolution 0.1 °C

• Response: True-RMS for AC voltage and current

• Size (H × W × D): 207 × 75 × 34 mm

• Maximum Wire Diameter: 30 mm (600 MCM)

• Weight: ~208 g

• Safety Category Rating: CAT III 600 V / CAT IV 300 V

Applications

• HVAC system diagnostics involving both electrical and temperature checks

• Residential and commercial electrical maintenance

• Verifying current and voltage on load circuits and panels

• Capacitance testing for components in industrial machinery

Why Choose the Fluke 324

• Adds temperature and capacitance to standard clamp meter functions, increasing versatility

• True-RMS ensures accurate readings under non-linear or distorted signals

• Robust safety ratings and rugged build suitable for field and heavy-use conditions

Order Now

The Fluke 324 is part of the Fluke 320 series clamp meters. Available for purchase. Ships worldwide.
