Fluke 289

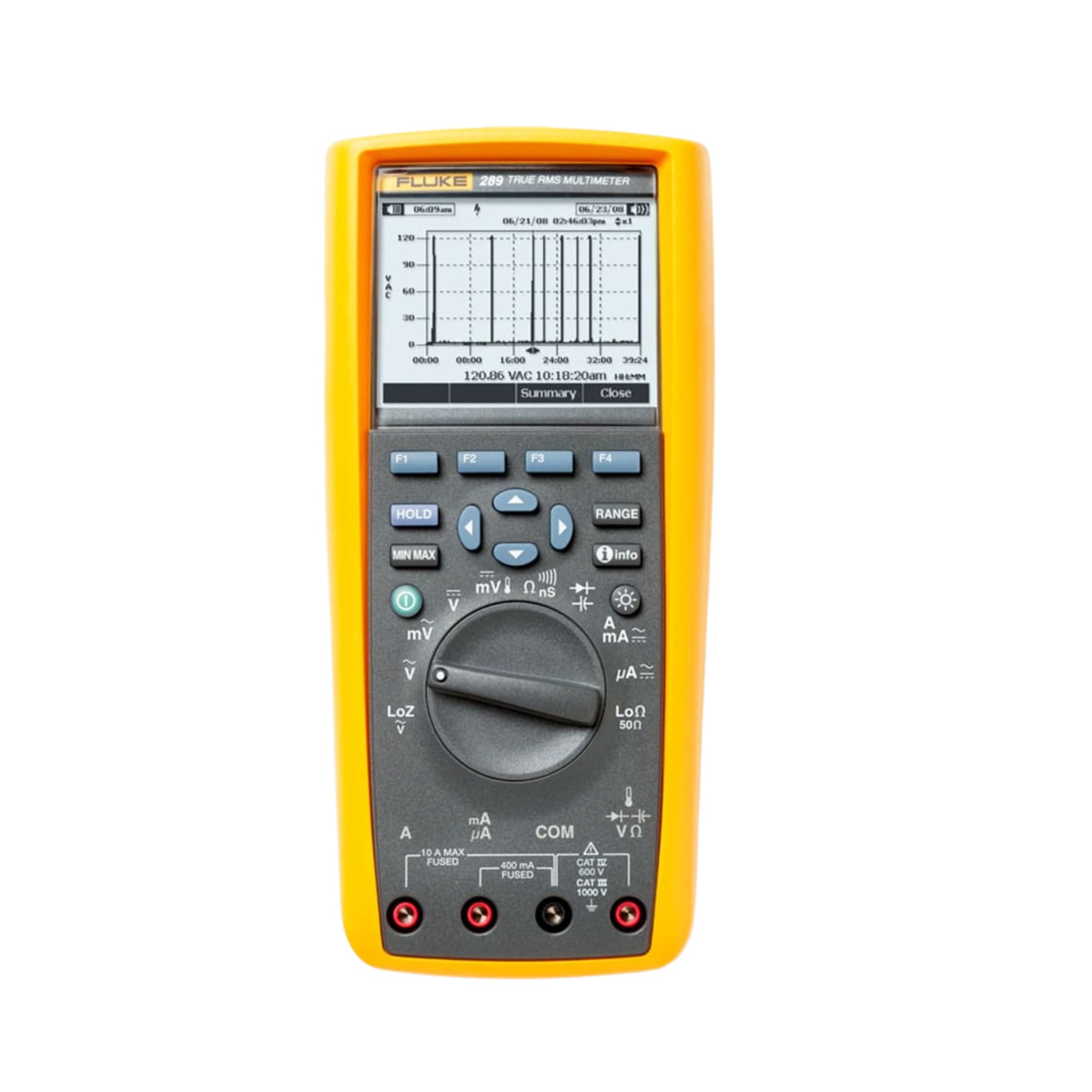

Fluke 289 – True-RMS Industrial Logging Multimeter

Overview

The Fluke 289 is an industrial-grade logging multimeter with advanced features for data capture and diagnosis. It offers true-RMS AC/DC measurements, a low impedance voltage function to eliminate ghost voltages, and built-in logging memory with “TrendCapture” for graphing logged data onsite. Suitable for power distribution, automation, electronics, and electro-mechanical diagnostics. It includes standard safety ratings and durable build quality.

Key Features

• True-RMS AC and DC voltage and current measurements

• LoZ (“Low Impedance”) voltage mode to avoid ghost/phantom voltages

• TrendCapture feature to graph logged data on-screen

• Ability to log up to ~15,000 events or readings

• Peak capture (transients) as fast as 250 µs

• Selectable AC filter for smoothing noisy signals (e.g., from VFDs)

• Relative mode to subtract lead resistance for low-ohm or capacitance measurements

• LoZ and low pass filter both useful for accurate voltage/frequency measurement in noisy environments

Technical Specifications

• Model: Fluke 289

• DC Voltage Ranges & Resolution: 50.000 mV; 500.00 mV; 5.0000 V; 50.000 V; 500.00 V; 1000.0 V

• DC Voltage Accuracy: ~0.025 %

• AC Voltage (True-RMS) Ranges: same as DC voltage ranges

• AC Voltage Accuracy: ~0.4 %

• DC Current Ranges & Resolution: 500.00 µA; 5000.0 µA; 50.000 mA; 400.00 mA; 5.0000 A; 10.000 A

• DC Current Accuracy: ~0.05 %

• AC Current Ranges: same as DC current ranges

• AC Current Accuracy: ~0.6 %

• Resistance Ranges: up to 500 MΩ, with multiple sub-ranges (e.g. 50 Ω to 500 MΩ)

• Capacitance Ranges: up to 100 mF

• Frequency Ranges: from ~99.999 Hz up to 999.99 kHz

• Temperature (excluding probe): -200 °C to +1350 °C; accuracy ≈ 1.0 %

• Battery Type: 6 × AA alkaline

• Battery Life: ~100 hours for normal use; ~200 hours while logging mode

• Operating Temperature: -20 °C to +55 °C

• Storage Temperature: -40 °C to +60 °C

• Safety Category: CAT III 1000 V / CAT IV 600 V

• Max Voltage between any terminal and earth ground: 1000 V

• Size (H × W × D): ~22.2 × 10.2 × 6.0 cm

• Weight: ~871 g

Applications

• Logging voltage and current trends in industrial automation systems

• Detecting intermittent faults or performance drifts over time

• Measuring noisy signals (from motor drives, power supplies) with low impedance mode

• Electromechanical/electrical maintenance, power distribution diagnostics

Why Choose the Fluke 289

• Combines logging, trend capture, and high accuracy in one handheld unit

• Helps find small anomalies before they become serious failures

• Low impedance voltage mode and selectable filtering improve measurement reliability

• Solid safety ratings and rugged construction for industrial use

Order Now

The Fluke 289 is part of Fluke’s industrial logging multimeter line. Available for purchase. Ships worldwide.
