Fluke 1777

Fluke 1777 – Overview

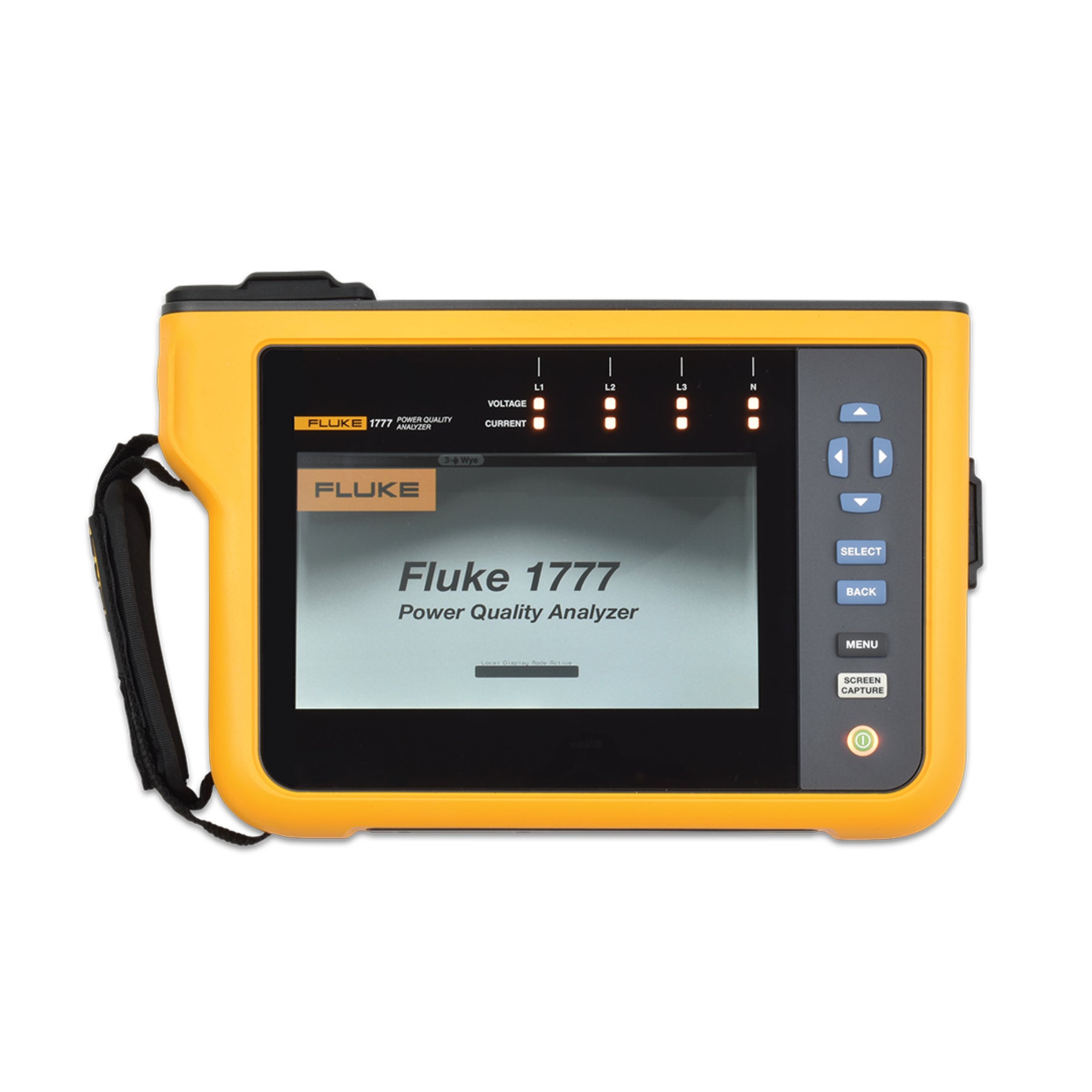

The Fluke 1777 is a rugged, high-performance three-phase power quality analyzer designed to simplify diagnostics and long-term monitoring of electrical systems. It captures a wide range of power parameters, fast transients up to ±8 kV, detailed harmonic content to 30 kHz, and offers both live meter mode and long recording/logging functionality. It's built for field-use, with solid safety ratings and versatile connectivity options.

Key Features

• Three-phase + neutral voltage and current inputs

• Captures high-speed transients up to ±8 kV

• Harmonic analysis up to 30 kHz

• 24-bit synchronous sampling; automatic scaling for voltage & current sensors

• Supports common power topologies (wye, delta, split phase, open delta, etc.)

• Multiple log and record modes with large memory and micro-SD support

• Live on-screen data: V, A, Hz, power, dips, swells, harmonics

• Powerful analysis/reporting via software for compliance (EN 50160, IEEE 519, IEC 61000 series)

Technical Specifications

• Number of Voltage Inputs: 4 (3 phases + neutral)

• Voltage Rating: up to 1000 V rms / 1000 V DC (1700 V peak)

• Overvoltage Rating: CAT III 1000 V / CAT IV 600 V

• Harmonic Bandwidth: DC to 30 kHz

• Transient Capture Sampling Frequency: up to 20 MS/s for fastest transients

• Standard Sampling Rate (50/60 Hz): ~80 kSamples/s

• Resolution: 24-bit synchronous sampling

• Input Impedance (Voltage): ~10 MΩ (between phase-phase/phase-neutral)

• Current Inputs: automatic range depending on sensor (coil/clamp etc), same bandwidth & resolution as voltage

• Memory: internal + micro-SD card, supports multiple logging sessions (weeks) with event capture

• Power Supply: Li-ion battery + mains + measurement circuit powering

• Operating Temperature: -10 … +50 °C

• Storage Temperature: -20 … +60 °C

• Size / Weight: approx. 28.0 × 19.0 × 6.2 cm; ~2.1 kg

Applications

• Power quality audits and harmonics evaluation

• Troubleshooting voltage transients, dips, swells in industrial installations

• Measuring and validating compliance with power quality standards (EN 50160, IEEE 519, etc.)

• Long-term monitoring of power systems in utilities, manufacturing, or big infrastructure

Why Choose the Fluke 1777

• Combination of very high transient capture plus wide harmonic bandwidth

• Live-meter and logging mode in one device gives flexibility

• Strong safety category lets you work at service entrance or downstream panels

• Robust memory, build quality, and analysis software simplify both testing and reporting

Order Now

The Fluke 1777 Three-Phase Power Quality Analyzer is available for purchase. Ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
