Fluke 1775

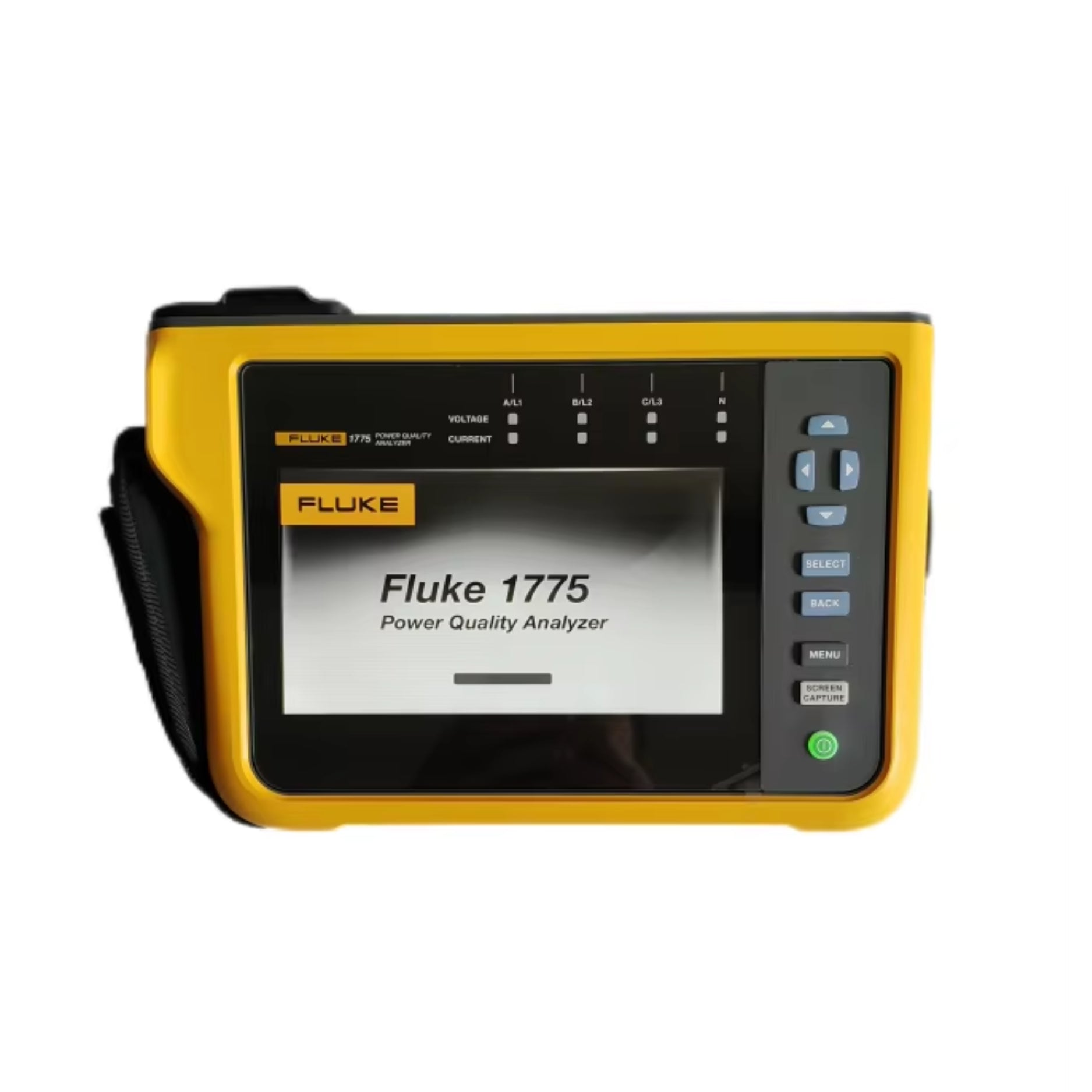

Fluke 1775 – Overview

The Fluke 1775 is a high-precision power quality analyzer designed for three-phase electrical systems. It delivers advanced logging of power, voltage, current, harmonics, and power quality events. With excellent transient capture and wide bandwidth, it helps identify problems like spikes, dips, swells, and harmonic distortion before they damage equipment.

Key Features

• Full three-phase + neutral measurement capability

• High transient capture up to ±8 kV for detecting damaging voltage spikes

• Wide PQ measurement bandwidth from DC to 30 kHz

• 24-bit synchronous sampling with high resolution and accuracy

• Compatible with flexible current probes for extended current ranges

• Color touchscreen for intuitive field operation

• Includes automatic capture of 500+ PQ parameters, dips/swells, harmonics

• Supports USB, Ethernet, WiFi/Bluetooth for data/log transfers

Technical Specifications

• Model: Fluke 1775

• Voltage Input (rms): up to 1000 V AC/DC

• Bandwidth for PQ measurements (excluding transients): DC to 30 kHz

• Transient Sampling Rate: 1 MS/s for high-frequency pulse capture

• Resolution: 24-bit synchronous sampling

• Current Input Ranges (with probes or clamps):
   - iFlex probes: up to ~1500 A to 6000 A depending on probe type
   - Clamp sensors: lower ranges down to tens of amperes

• Safety Rating: CAT IV 600 V / CAT III 1000 V

• Input Impedance (voltage): ~10 MΩ between phase-to-phase or phase-to-neutral

• Number of Logged Parameters: over 500 by default

• Storage / Memory: large internal memory for logging long-term power quality events

• Display: Color touchscreen interface

• Operating Temperature: -10 … +50 °C

• Size / Weight: approx. 28 × 19 × 6.2 cm; ~2.1 kg

Applications

• Power quality audits in industrial and commercial sites

• Monitoring and diagnosing harmonics, transients, and waveform distortion

• Investigating power disturbances, dips, swells, and energy irregularities

• Utility compliance (standards like EN 50160, IEEE 519) and preventive maintenance

Why Choose Fluke 1775

• Excellent transient resolution helps catch harmful spikes before damage occurs

• Wide bandwidth and high resolution support accurate harmonic analysis

• Flexible current probe options allow measuring large conductors and different scenarios

• Robust safety ratings make it safe for use at service entrances or high voltage panels

• Modern interface and connectivity simplify data logging and reporting

Order Now

The Fluke 1775 Three-Phase Power Quality Analyzer is available for purchase. Ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
