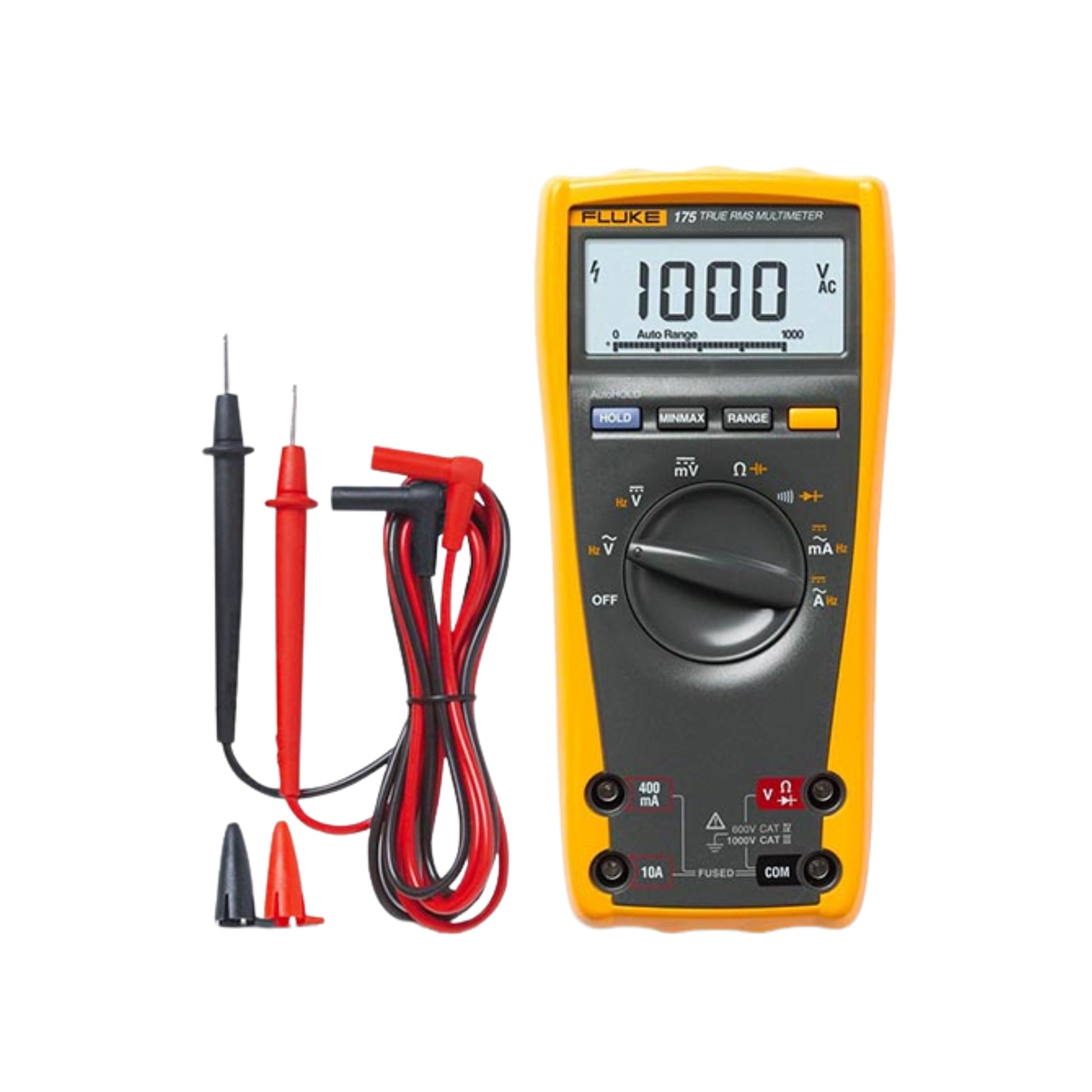

Fluke 175

Fluke 175 – Rugged Industrial True-RMS Multimeter

Overview

The Fluke 175 is built for professionals needing reliable, accurate measurements across electrical and electronic systems. It delivers true-RMS AC and DC voltage and current, plus resistance, capacitance, frequency, continuity, diode testing. It includes features like automatic/manual ranging, Display Hold, Auto Hold, and Min/Max-Average capture. Designed with safety in mind, with CAT IV / CAT III ratings and high overvoltage protection.

Key Features

• True-RMS measurement for AC & DC voltage and current

• Measures up to 1000 V (AC/DC) and up to 10 A

• Frequency, capacitance, resistance, continuity, diode test functions

• Manual and autoranging modes

• Display Hold and Auto Hold functions

• Min/Max-Average recording mode

• Rugged overmold case with built-in probe holders

• Lifetime warranty

• Safety rated CAT IV 600 V / CAT III 1000 V

Technical Specifications

• Model: Fluke 175

• DC Voltage Accuracy: ±(0.15 % + 2)

• DC Voltage Maximum: 1000 V

• AC Voltage Accuracy: ±(1.0 % + 3)

• AC Voltage Maximum: 1000 V

• DC Current Accuracy: ±(1.0 % + 3)

• DC Current Maximum: 10 A

• AC Current Accuracy: ±(1.5 % + 3)

• AC Current Maximum: 10 A

• Resistance Accuracy: ±(0.9 % + 1)

• Resistance Maximum: 50 MΩ

• Capacitance Accuracy: ±(1.2 % + 2)

• Capacitance Maximum: 10,000 µF

• Frequency Accuracy: ±(0.1 % + 1)

• Frequency Maximum: 100 kHz

• Operating Temperature: -10 °C … +50 °C

• Storage Temperature: -30 °C … +60 °C

• Humidity (non-condensing): 0-90 % at 0-35 °C; 0-70 % at 35-50 °C

• Size: 43 × 90 × 185 mm

• Weight: 420 g

• Battery: 9 V alkaline; battery life ~200 hours typical (without backlight)

Applications

• Electrical maintenance and troubleshooting in industrial and commercial settings

• Verification of power supplies, motors, control circuits

• Panel, wiring, and component testing

• Use where ruggedness and safety are required

Why Choose the Fluke 175

• High voltage & current range with safety ratings suited for industrial environments

• Diverse measurement capabilities reduce need for multiple tools

• Strong accuracy and robust construction for long term reliability

Order Now

The Fluke 175 is part of Fluke’s True-RMS multimeter lineup. Available for purchase. Ships worldwide.
