Fluke 1738

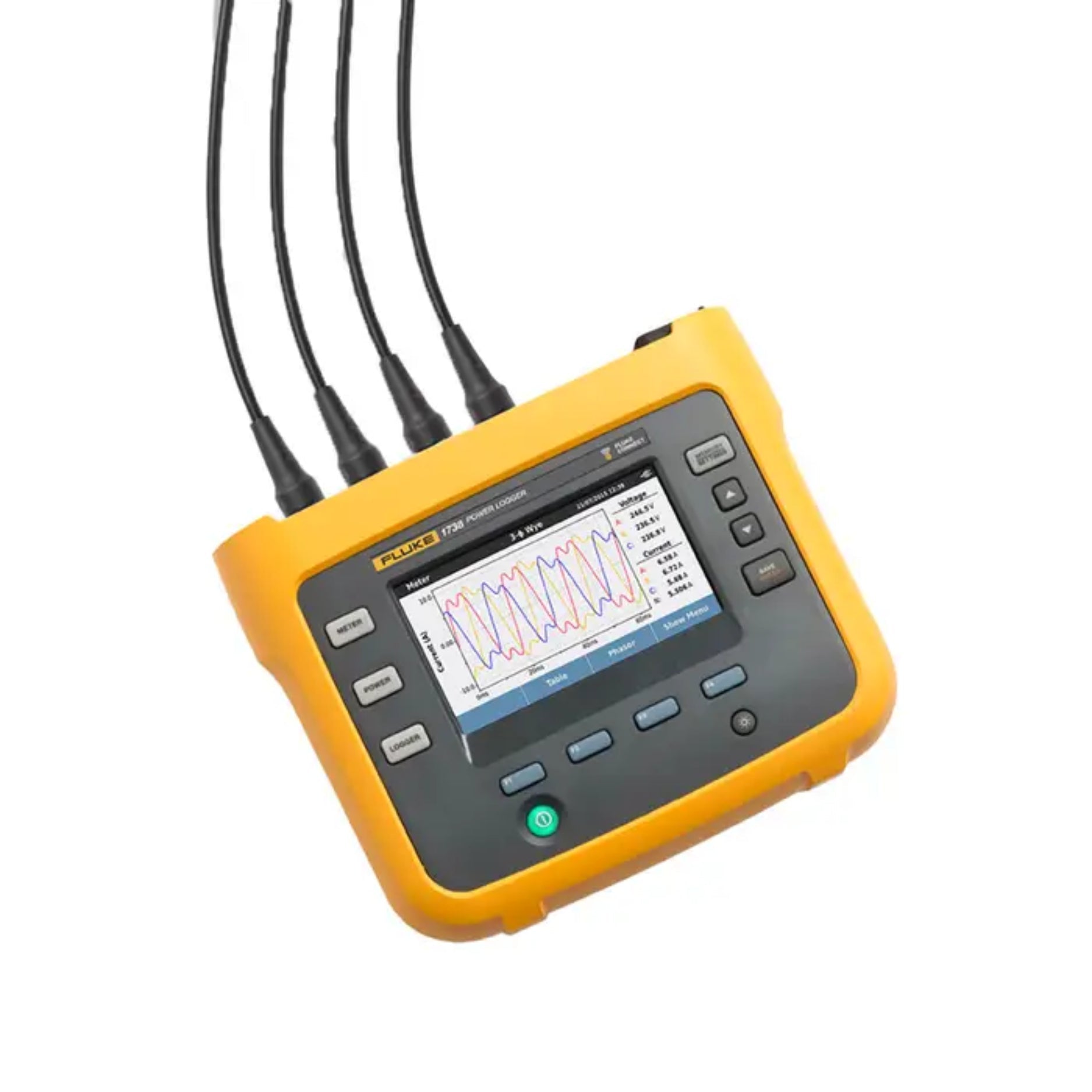

Fluke 1738 – Overview

The Fluke 1738 is a high-performance power quality logger designed for monitoring and diagnosing three-phase electrical systems. It includes four flexible current probes (for three phases + neutral), offers a vivid color touchscreen for field use, built-in logging of hundreds of parameters, and advanced event capture features such as waveform snap shots to catch power quality disturbances. Ideal for energy studies, power quality analysis, and long-term monitoring.

Key Features

• Measures all three phases plus neutral with four flexible current probes

• Logs extensive power quality parameters: voltage, current, harmonics, total harmonic distortion, active/reactive/apparent power, power factor, unbalance, etc.

• Captures dips, swells, inrush currents, and provides waveform snapshots with timestamps

• Color touchscreen allows real-time viewing and operation in the field

• Intelligent interface helps verify connections and reduce measurement error

• Integration with Fluke Connect® and Energy Analyze Plus software for reporting and data analysis

• Multiple logging sessions stored onboard; review data before download

• Can be powered directly from measured circuit; supports different voltage input options

Technical Specifications

• Model: Fluke 1738 Advanced Power Logger

• Voltage Measurement Range: up to 1000 V

• Current Probe Options: iFlex probes of various ranges (e.g. 150 A, 300 A, 600 A, etc.)

• Input Types: Voltage, current, neutral, auxiliary inputs

• Harmonic Measurement: 2nd through 50th harmonics for voltage and current

• Frequency Range: ~42.5 Hz to 69 Hz

• Sampling & Resolution: 16-bit synchronous sampling; high resolution RMS profiles

• Battery: Li-Ion, replaceable, ~4 hours runtime in normal mode; extended in power-saving mode

• Power Supply Options: directly from circuit or standard power cord input

• Memory: internal flash for many logging sessions, event storage, waveform data

• Display: Color touch screen, graphical interface

• Operating Temperature: -10 … +50 °C

• Storage Temperature: -20 … +60 °C

• Humidity & Environmental: certified for industrial use

• Safety Category: High safety ratings (CAT IV / CAT III depending on configuration)

Applications

• Long-term monitoring of three-phase systems for energy use and cost tracking

• Power quality checks to identify harmonics, voltage dips, swells, inrush currents

• Validation against standards (e.g. EN 50160) and utility compliance

• Industrial and utility panels, switchgears, motor loads, renewable generation setups

Why Choose the Fluke 1738

• Combines flexible current probes with advanced logging making it very versatile

• Large parameter set and event capture allow deep insight into power system health

• Color touchscreen and guided setup reduce user error in field setup

• Integrated reporting tools simplify analysis after measurement

• Strong safety and build quality for demanding environments

Order Now

The Fluke 1738 Advanced Three-Phase Power Logger with current probes is available for purchase. Ships worldwide.
