Fluke 1662

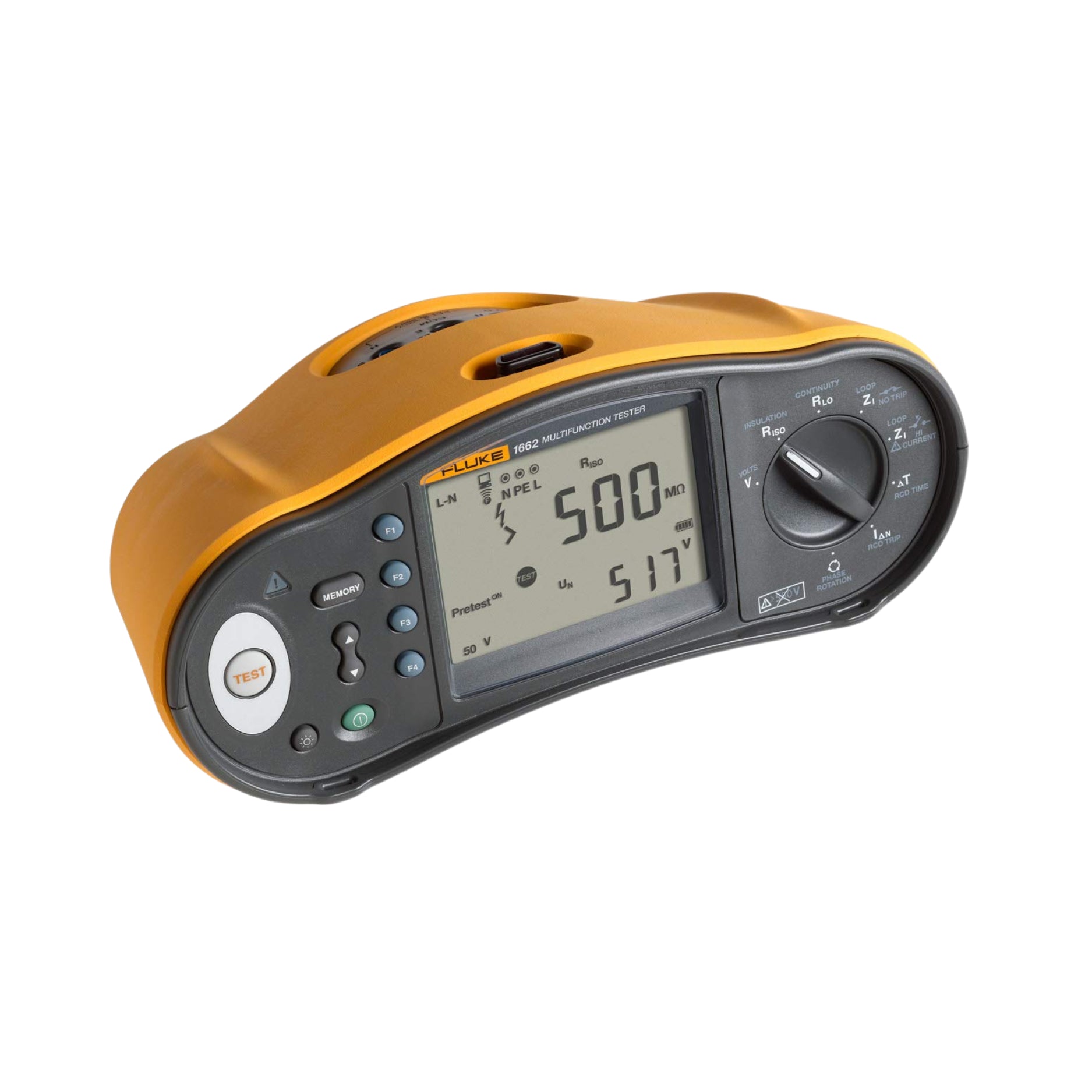

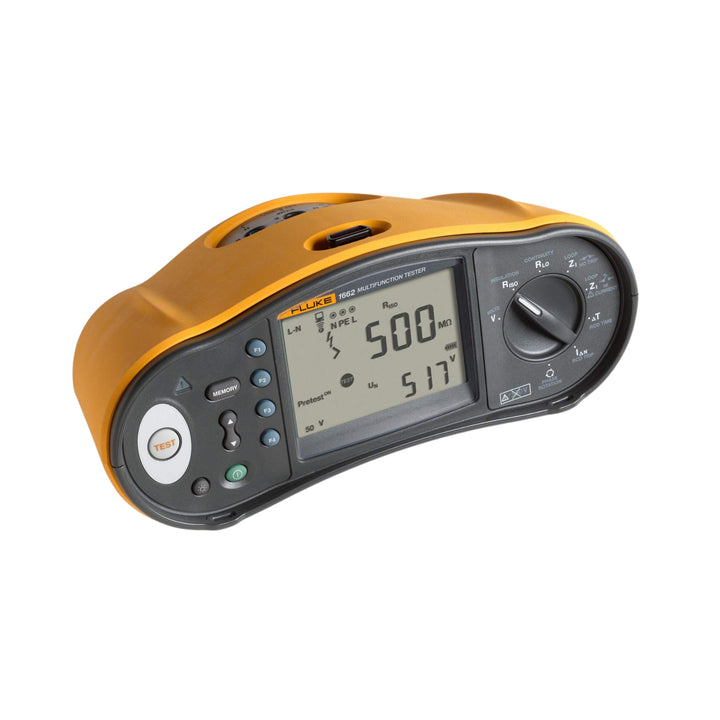

Fluke 1662 – Multifunction Installation Tester

Overview

The Fluke 1662 is a reliable installation tester built for everyday electrical installation verification. It measures AC/DC voltage and frequency, checks wiring polarity including broken neutral conductors, tests insulation and loop and line resistance, and includes RCD test routines. Designed for safety, speed and compliance with local installation standards, it comes with practical features like auto-start for certain tests and memory (Z-Max) for loop tests.

Key Features

• AC/DC voltage measurement with true-rms

• Frequency measurement

• Wiring polarity check to detect broken neutral wires

• Insulation resistance test at multiple voltages (100 V, 250 V, 500 V, 1000 V)

• Loop and line impedance tests

• Prospective earth fault current calculation and prospective short-circuit current calculation

• RCD (Residual Current Device) trip time and current measurement, including variable current and ramp test

• Phase sequence indicator

• Memory for maximum loop values (Z-Max)

• Zero adapter to compensate for test leads and mains cord resistance

• Hard carrying case, remote control probe, lead set and strap included

Technical Specifications

• Model: 1662

• Voltage Range: up to 500 V AC/DC

• Voltage Resolution: 0.1 V

• Voltage Accuracy (45-66 Hz): ±0.8 % + 3 digits

• Input Impedance: 360 kΩ

• Overload Protection: 660 V rms

• Continuity Testing (Autoranging): 20 Ω / 200 Ω / 2000 Ω

• Continuity Resolution: 0.01 Ω / 0.1 Ω / 1 Ω

• Open Circuit Voltage for continuity: greater than 4 V

• Insulation Test Voltages: 100 V, 250 V, 500 V, 1000 V

• Insulation Resistance Ranges: up to 100 MΩ depending on test voltage

• Insulation Resolution: depending on range, down to 0.01 MΩ or 0.1 MΩ

• Loop and Line Impedance Range and Resolution: includes high current mΩ mode, autorange 10 Ω / 20 Ω / 200 Ω / 2000 Ω with corresponding resolutions 0.001 Ω / 0.01 Ω / 0.1 Ω / 1 Ω

• Prospective Earth Fault Current / Prospective Short-Circuit Current Range: up to tens of kiloamps (institutional values)

• RCD Types Tested: Type AC, Type A, Type G, Type S

• RCD Trip Current Range: includes 10, 30, 100, 300, 500, 1000 mA depending on type and mode

• RCD Trip Time Ranges: varies by type (AC / A / S)

• Phase Sequence Indication: for voltages between ~100-500 V

• Power Supply: 6 × AA batteries

• Size (L × W × H): 10 × 25 × 12.5 cm

• Weight (with batteries): ~1.3 kg

• Sealing / Protection: IP-40

• Safety Category: CAT III 500 V / CAT IV 300 V

• Standards Compliance: EN/IEC 61010-1, relevant installation safety standards EN61557-1 to EN61557-7 and EN61557-10

Applications

• Electrical installations verification in residential, commercial and light industrial settings

• RCD test routines for safety compliance

• Testing insulation integrity during commissioning or safety inspections

• Verifying loop/line resistance and fault current capabilities

• Troubleshooting wiring polarity issues

Why Choose the Fluke 1662

• Broad test coverage in one device reduces need for multiple tools

• True-rms voltage and frequency give accurate readings under varied supply conditions

• RCD testing and loop memory features save time on repeat jobs

• Rugged design built for field conditions with accessory kit included

Order Now

The Fluke 1662 is part of Fluke’s installation tester series. Available for purchase. Ships worldwide.
