Fluke 1555

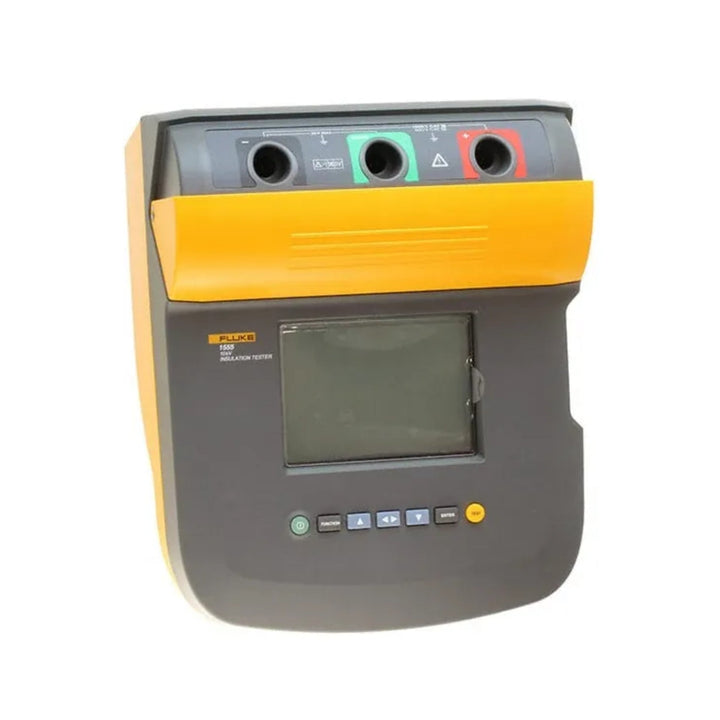

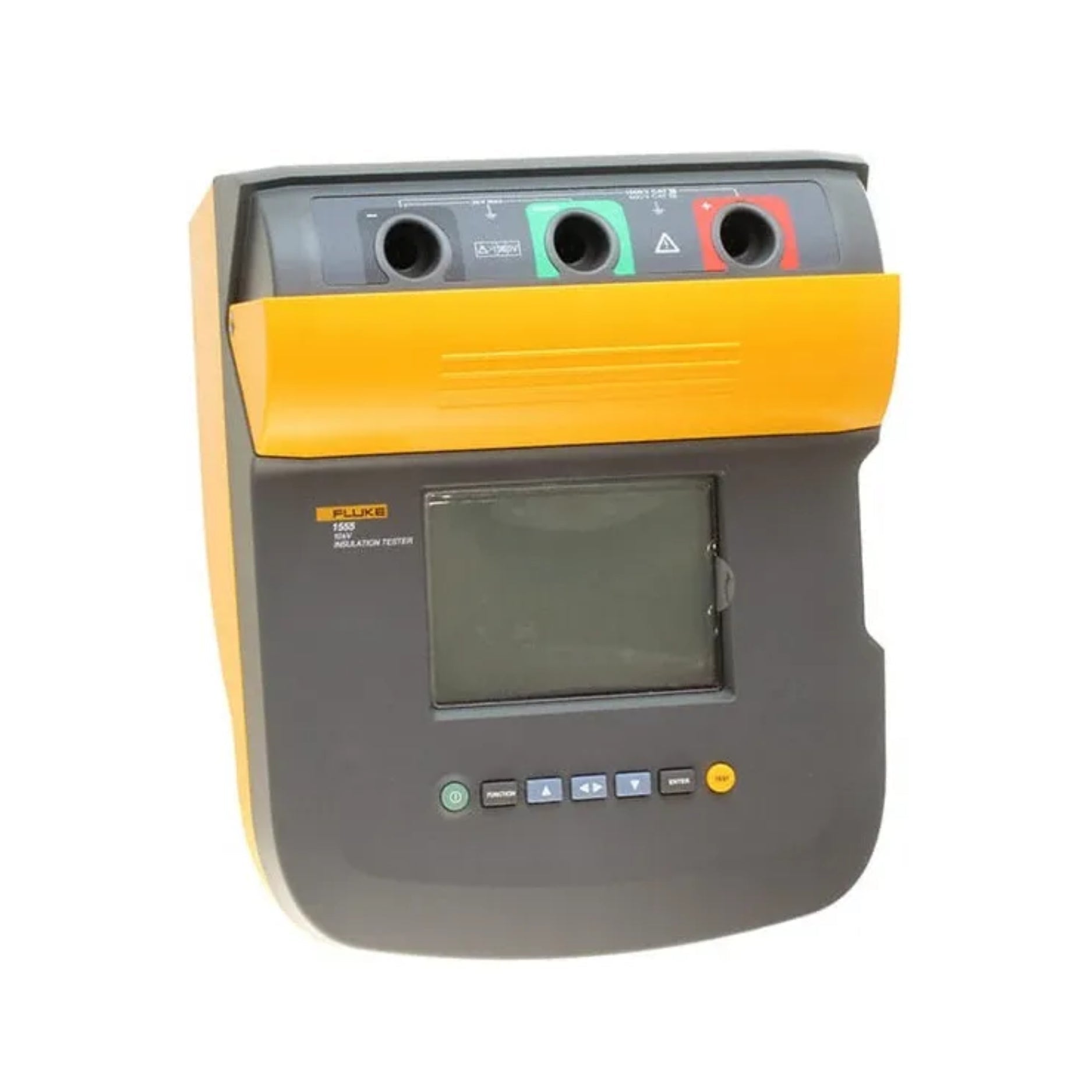

Fluke 1555 – Overview

The Fluke 1555 is a high-voltage insulation resistance tester designed for critical industrial and utility applications. It delivers insulation testing up to 10 kV, with measurement capability up to 2 TΩ. The instrument includes built-in DAR/PI ratio calculation, ramp testing, leakage current measurement, and live voltage detection, making it a reliable choice for predictive and preventive maintenance.

Key Features

• Insulation test voltages from 250 V to 10 kV

• Insulation resistance measurement up to 2 TΩ

• Leakage current measurement from 1 nA to 2 mA

• Built-in DAR (Dielectric Absorption Ratio) and PI (Polarization Index)

• Ramp function for advanced testing diagnostics

• Programmable timer (0–99 minutes)

• Large analog/digital display with bar graph

• Stores up to 99 test results with time stamps

• Over 750 insulation tests per battery charge

• CAT IV 600 V / CAT III 1000 V rated

Technical Specifications

• Model: Fluke 1555

• Display: Analog/digital LCD with bar graph, 75 × 105 mm

• Insulation Resistance Range: up to 2 TΩ

• Test Voltage: Selectable from 250 V to 10,000 V

• Voltage Accuracy: –0% to +10% at 1 mA load

• Leakage Current Range: 1 nA to 2 mA

• Capacitance Range: 0.01 µF to 15 µF

• Ramp Function: Programmable adjustable increase in voltage

• Timer: 0 to 99 minutes, resolution 1 second

• Live Circuit Detection: 30 V to 660 V AC/DC

• Battery Type: 12 V rechargeable lead-acid

• Battery Life: >750 insulation tests per charge

• Charging Requirements: 85 V to 250 V AC, 50/60 Hz

• Operating Temperature: –20 °C to +50 °C

• Storage Temperature: –20 °C to +65 °C

• Humidity: 80% RH at 31 °C, 50% at 50 °C

• Dimensions: 269 × 277 × 160 mm

• Weight: approx. 3.7 kg

• Safety Rating: CAT IV 600 V / CAT III 1000 V

• Enclosure Protection: IP40

Applications

• Insulation testing for transformers, motors, generators, and cables

• Predictive and preventive maintenance in industrial plants

• High-voltage diagnostic testing with DAR/PI evaluation

• Field use for long-term asset reliability

Why Choose Fluke 1555

• High test voltage range up to 10 kV for industrial insulation systems

• Wide resistance measurement capability up to 2 TΩ

• Built-in diagnostic functions including DAR, PI, ramp, and timer

• Long-lasting battery for extended field use

• Designed for safety with CAT IV 600 V rating

Order Now

The Fluke 1555 10 kV Insulation Resistance Tester is available and ships worldwide.
