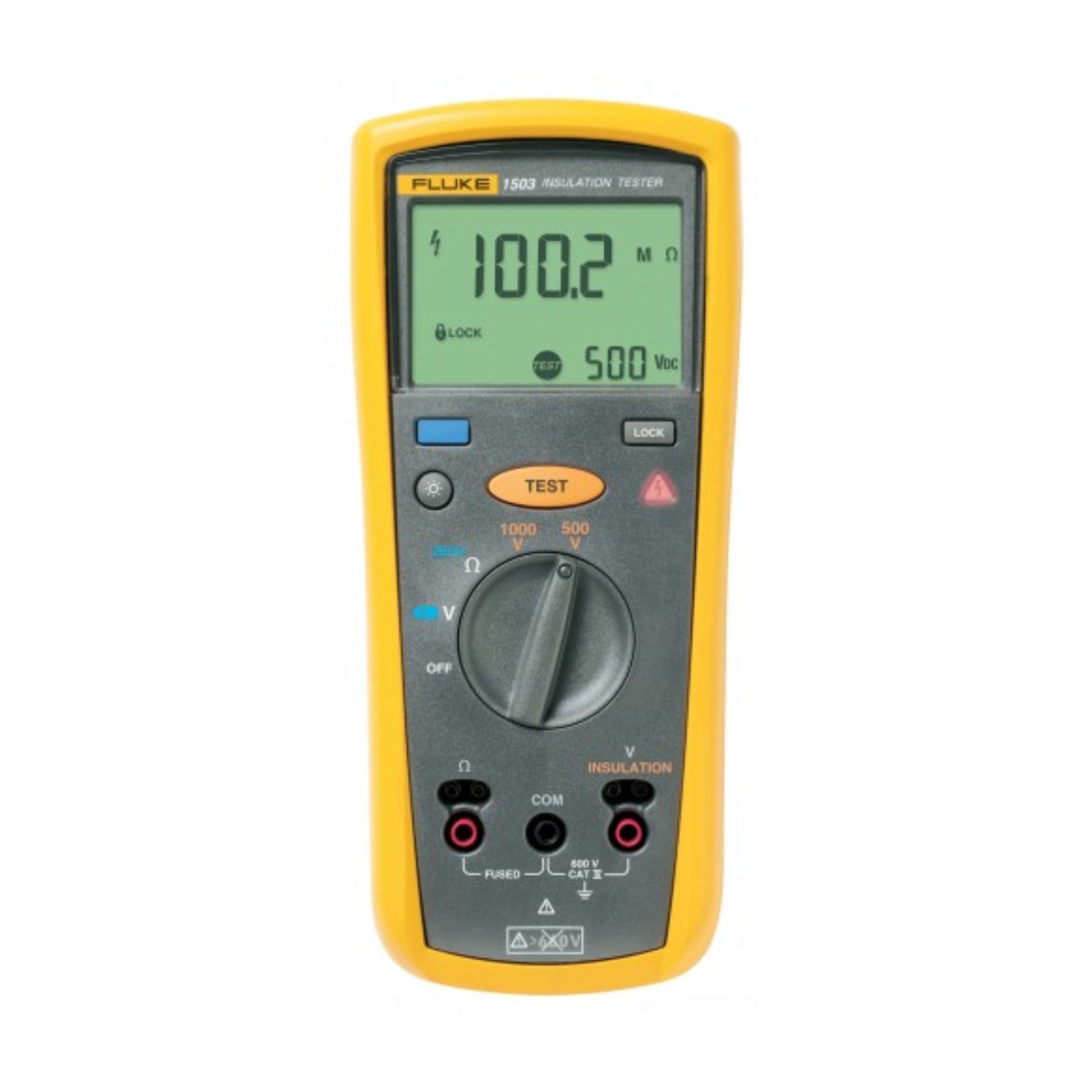

Fluke 1503 – Compact Insulation Tester

Overview

The Fluke 1503 is a rugged and compact insulation resistance tester suited for industrial, commercial and maintenance use. It supports high voltage insulation tests at 500 V and 1000 V, live-circuit detection to prevent unsafe testing, auto discharge for capacitive loads, and remote probe capability for hard-to-reach areas. It meets strong safety ratings and is designed for durability and reliability in harsh environments.

Key Features

• Insulation test voltages of 500 V and 1000 V for measuring insulation resistance

• Insulation resistance range from 0.01 MΩ up to 2000 MΩ

• Live circuit detection inhibits test if terminal voltage above ~30 V is present

• Auto discharge of capacitive voltage for safety

• Remote probe included for testing in hard or repetitive test locations

• Overload protection up to 600 V AC or DC on any terminal

• Large backlit display for easy reading in low light

• Battery powered (four AA batteries) for field portability

• Rugged design: vibration, shock, IP40 rated

Technical Specifications

• Model: 1503

• Insulation Resistance Range: 0.01 MΩ to 2000 MΩ

• Test Voltages: 500 V DC, 1000 V DC

• Insulation Test Voltage Accuracy: +20 % / −0 %

• Short-Circuit Current (at insulation test): ~1 mA nominal

• Maximum Capacitive Load: operates properly up to ~1 µF

• Maximum Terminal Voltage Rated: 600 V AC rms or DC

• Operating Temperature: −20 °C to +55 °C

• Storage Temperature: −40 °C to +60 °C

• Relative Humidity:
   - 0 to 95% at 10-30 °C
   - 0 to 75% at 30-40 °C
   - 0 to 40% at 40-55 °C

• Size (H × W × D): approximately 5.0 × 10.0 × 20.3 cm

• Weight: ~550 g

Applications

• Checking insulation integrity on motors, cables, switchgear

• Preventive maintenance to detect worn or failing insulation early

• Testing insulation after installation or repairs

• Field use where safety features like live-circuit detection and auto-discharge are important

Why Choose the Fluke 1503

• High test voltages with wide resistance range for many insulation challenges

• Strong safety protections to protect user and equipment

• Remote probe and rugged build make it efficient in field work

Order Now

The Fluke 1503 is part of Fluke’s insulation tester family. Available for purchase. Ships worldwide.
