Fluke 116

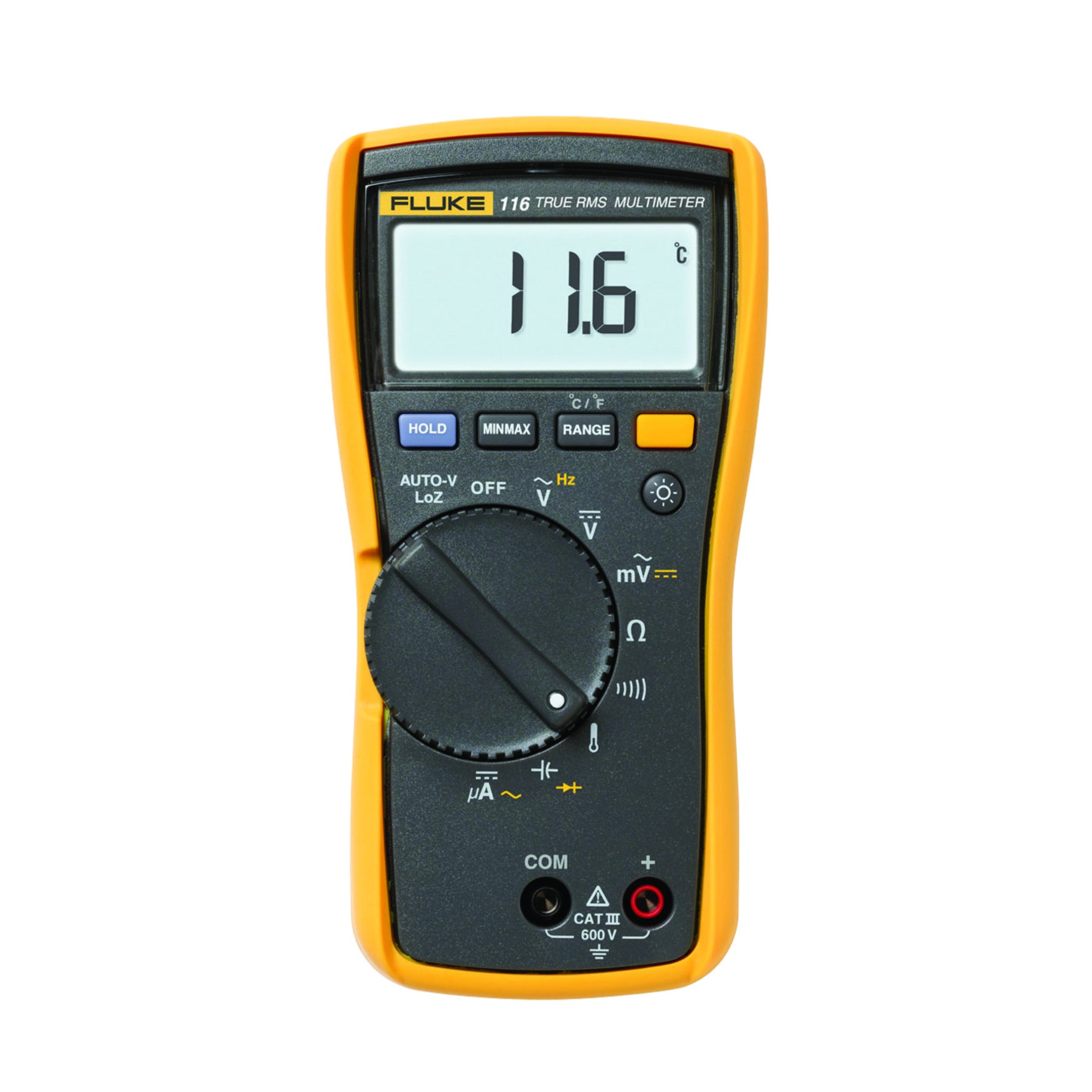

Fluke 116 – HVAC Digital Multimeter

Overview

The Fluke 116 is designed for HVAC/R technicians. It combines true-RMS AC/DC voltage and current measurement up to 600 V, a built-in thermometer for temperature readings, and microamp measurement for flame sensors. It includes functions for resistance, continuity, frequency, and capacitance. Its rugged design and safety rating make it suitable for demanding field service work in HVAC systems.

Key Features

• True-RMS measurement for AC and DC voltage and current

• Built-in thermometer (Type-K) for measuring temperature from -40 °C to +400 °C (or -40 °F to +752 °F)

• Microamp input for testing flame sensors down in µA ranges

• Low input impedance “Lo-Z” mode to prevent ghost voltage readings

• Large white LED backlit display for visibility in dim work areas

• Measures resistance, continuity with audible beeper, frequency, and capacitance

• Min/Max/Average to record signal fluctuations over time

• Compact ergonomics for one-handed use, rugged housing

• Safety rating: CAT III 600 V

Technical Specifications

• Model: Fluke 116

• Maximum AC/DC Voltage: 600 V

• AC/DC Voltage Accuracy: 2.0 % + 3 counts (45-500 Hz DC mode), 4.0 % + 3 counts (500 Hz-1 kHz)

• AC Millivolts True-RMS Range: 600.0 mV; Resolution: 0.1 mV

• Continuity Test Range: 600 Ω; Indicates beeper on less than 20 Ω, off greater than 250 Ω; Detects opens or shorts of 500 µs or longer

• Resistance Ranges: 600 Ω; 6 kΩ; 60 kΩ; 600 kΩ; 6 MΩ; 40 MΩ

• Resistance Accuracy: ~0.9 % + 1 count on lower ranges

• Diode Test: up to 2.000 V; Resolution 0.001 V; Accuracy ~0.9 % + 2 counts

• Capacitance Ranges: from ~1 nF through ~9999 µF; Accuracy varies with range (typical ~0.9 % for smaller, larger error for >1000 µF)

• Temperature (Type-K Thermocouple): Range -40 °C to +400 °C; Resolution 0.1 °C; Accuracy ~1 % + offset

• Microamp Ranges: AC/DC µA ranges to 600.0 µA; Resolution 0.1 µA

• Frequency (Voltage Input): up to ~50.00 kHz; Accuracy ~0.1 % + 2 counts

• Display: 6000 counts, white LED backlight, updates ~4 times per second; bar graph ~33 segments

• Operating Temperature: -10 °C to +50 °C

• Storage Temperature: -40 °C to +60 °C

• Size: ~167 × 84 × 46 mm

• Weight: ~550 g

• Warranty: 3 years

Applications

• Diagnosing HVAC system electrical circuits, flame sensor behavior, and temperature conditions

• Verifying voltage, current, frequency in heating, ventilation, air conditioning and refrigeration equipment

• Capturing temperature trends and fluctuations with Min/Max/Average functions

• Field work where ruggedness, accuracy and safety are essential

Why Choose the Fluke 116

• Combines temperature and microamp measurements specific to HVAC technician needs

• True-RMS and Lo-Z features improve reliability in noisy or complex electrical environments

• Strong safety rating ensures dependable performance in high voltage situations

• Durable build and backlight display make it suitable for both indoor and harsher field use

Order Now

The Fluke 116 belongs to Fluke’s HVAC/R multimeter series. Available for purchase. Ships worldwide.
