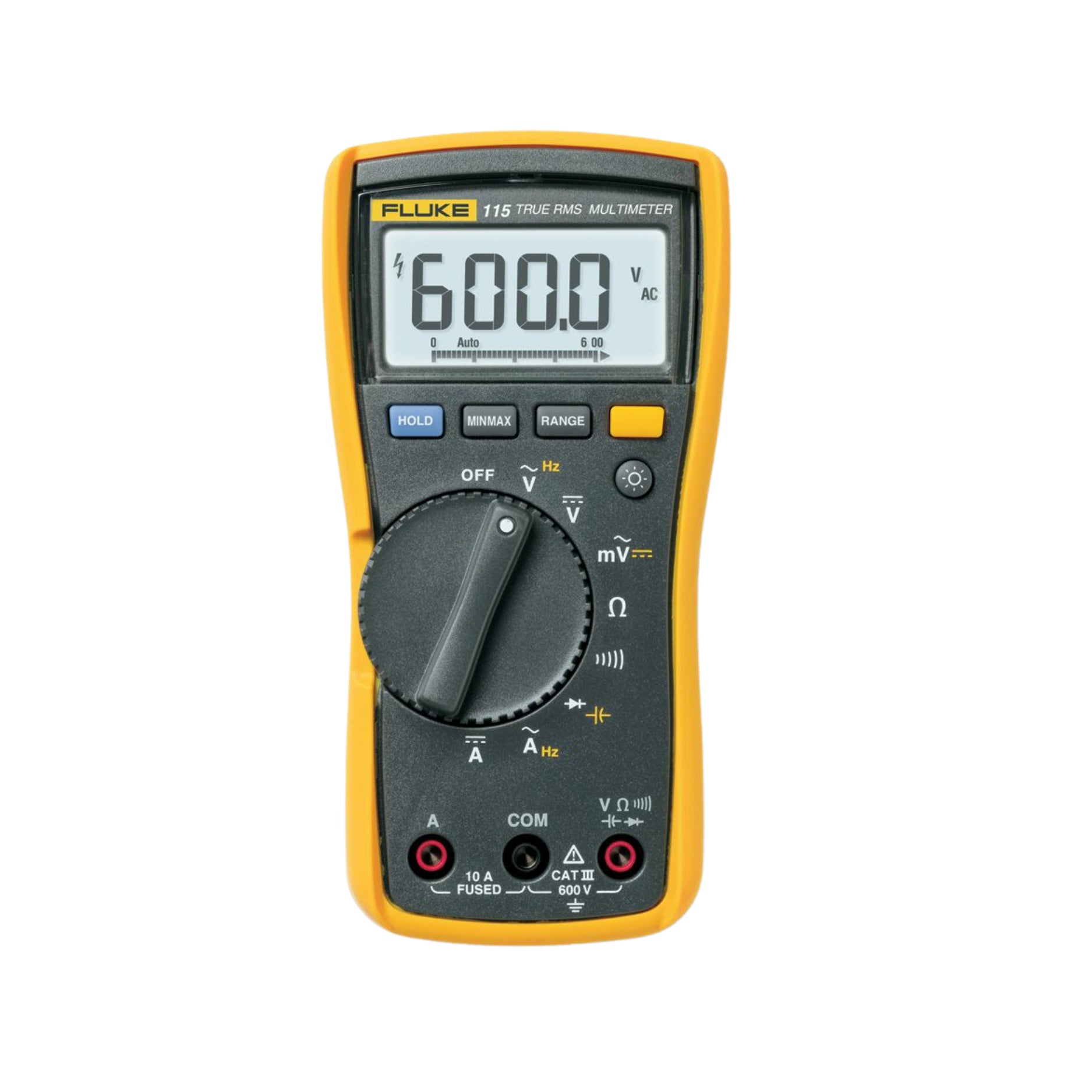

Fluke 115 – True-RMS Field Technician Digital Multimeter

Overview

The Fluke 115 is a true-RMS digital multimeter designed for field technicians. It provides accurate measurements for AC and DC voltage & current, resistance, frequency, capacitance, continuity and diode tests. It features a compact ergonomic design, large backlit display, and functions like Min/Max/Average to capture signal variations. It is safe for use up to 600 V environments and built for tough daily use.

Key Features

• True-RMS measurement for AC/DC voltage and current

• Measures up to 600 V (AC/DC); up to 10 A current with overload protection

• Resistance, continuity, frequency, capacitance, and diode test functions

• Min/Max/Average with elapsed time to record fluctuations

• Large white LED backlight for low-light conditions

• Compact, ergonomic one-hand operation design

• CAT III 600 V safety rating

• 6,000-count resolution with bar graph display

Technical Specifications

• Model: Fluke 115

• Voltage DC Ranges & Resolution: 600.0 mV / 0.1 mV; 6.000 V / 0.001 V; 60.00 V / 0.01 V; 600.0 V / 0.1 V

• Voltage DC Accuracy: ±(0.5 % + 2 counts)

• Voltage AC (True-RMS) Ranges: 6.000 V; 60.00 V; 600.0 V

• Voltage AC Accuracy (45-500 Hz): ±(1.0 % + 3); at 500-1,000 Hz: ±(2.0 % + 3)

• Current DC Ranges: 6.000 A; 10.00 A (20 A overload for 30 seconds)

• Current DC Accuracy: ±(1.0 % + 3)

• Current AC (True-RMS) Ranges: 6.000 A; 10.00 A (20 A overload for 30 seconds)

• Current AC Accuracy (45-500 Hz): ±(1.5 % + 3)

• Resistance Range: up to 40 MΩ; various sub-ranges (600 Ω, 6 kΩ, etc.)

• Continuity: Beeper (threshold approx. <20 Ω), detects opens/shorts ≥ 500 µs

• Capacitance Range: up to 9,999 µF; accuracy varies by range

• Frequency (Voltage/Current input): up to 50 kHz; accuracy approx. ±(0.1 % + 2)

• Diode Test: ~2.000 V range; accuracy ±(0.9 % + 2)

• Display: 6,000 counts; 33-segment bar graph; updates ~4 / sec for digits; ~32 / sec for bar graph

• Safety: CAT III 600 V; Pollution Degree 2

• Operating Temperature: -10 … +50 °C

• Storage Temperature: -40 … +60 °C

• Power Source: 9 V alkaline battery; battery life ~400 hours (no backlight)

Applications

• General electrical & electronic testing

• Field service and troubleshooting of voltages, motors, and control circuits

• HVAC and appliance diagnostics

• Tasks needing capacitance and frequency measurement in addition to basic voltage/current

Why Choose the Fluke 115

• True-RMS ensures accuracy even with nonsinusoidal waveforms

• Overload capability and durability for field environment

• Feature-rich (Min/Max/Average, capacitance, frequency, diode) for cost savings vs. buying separate tools

• Safe and reliable with strong safety rating CAT III 600 V

Order Now

The Fluke 115 is part of Fluke’s True-RMS multimeter line, made for field technicians. Available for purchase. Ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
