Fluke 114

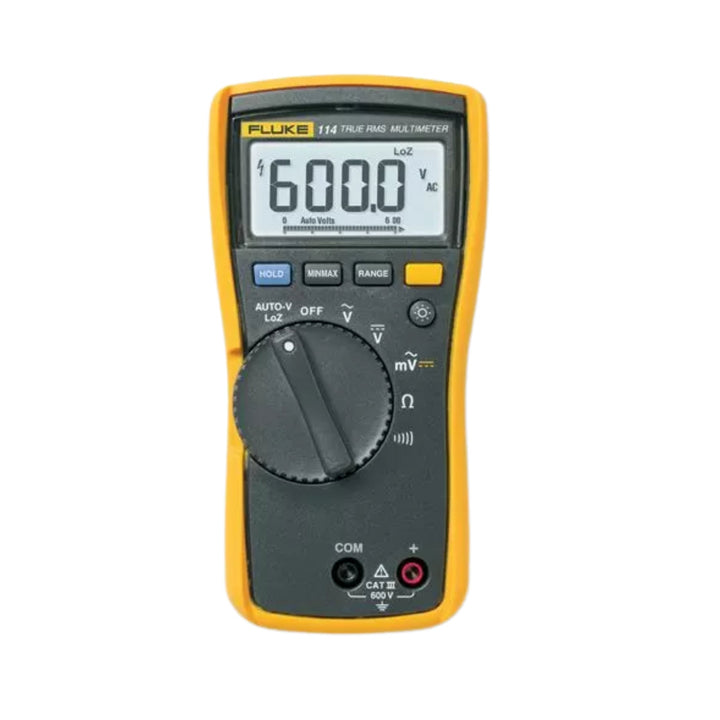

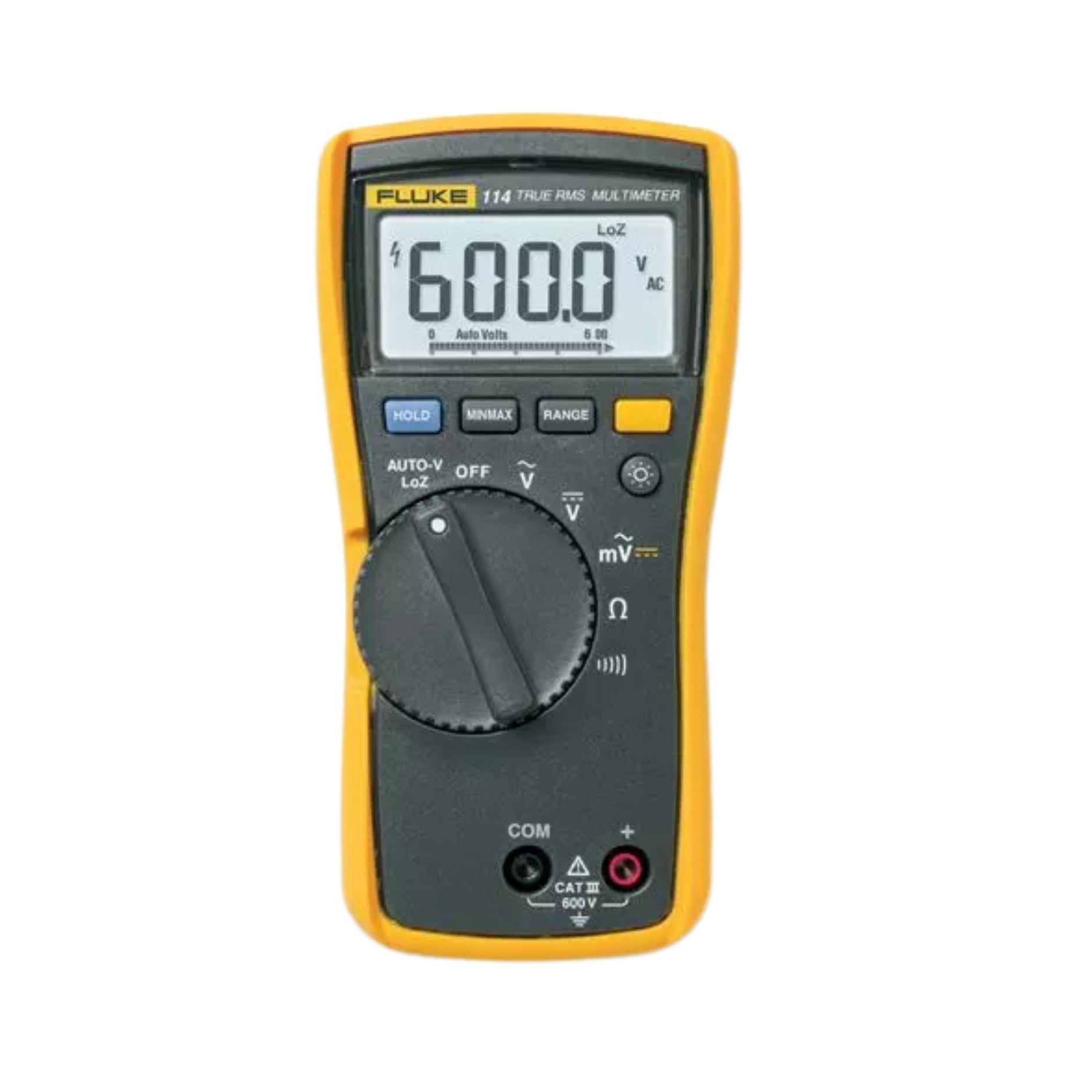

Fluke 114 – Compact Multimeter for Go/No-Go Testing

Overview

The Fluke 114 is a compact True-RMS multimeter designed for everyday electrical troubleshooting and go/no-go testing. It comes with AutoVolt which switches automatically between AC and DC voltage, a Low-Z mode to avoid false readings from ghost voltages, and a large LED backlight for visibility in poor lighting. It is safety rated for CAT III 600 V, and includes features like resistance, continuity, and Min/Max/Average recording of fluctuations. It fits easily into one hand for field use.

Key Features

• AutoVolt automatic AC/DC voltage selection

• Low-Z mode to help prevent false readings from ghost or phantom voltage

• White LED backlight for visibility in low light conditions

• Measures resistance and continuity

• Records Min, Max and Average readings to track signal fluctuations

• Compact ergonomic design suitable for one-hand operation

• Includes holster with probe holders for safe storage of test leads

• CAT III 600 V safety rating

Technical Specifications

• Model: 114

• Maximum Voltage Between Any Terminal and Earth Ground: 600 V

• Safety Rating: CAT III 600 V, Pollution Degree 2

• Display: 6000 counts, updates 4 times per second

• Bar Graph: 33 segments, updates 32 times per second

• Operating Temperature: −10 °C to +50 °C

• Storage Temperature: −40 °C to +60 °C

• Battery: 9 V alkaline battery

• Battery Life: approximately 400 hours without backlight

• DC Millivolts: up to 600.0 mV; resolution 0.1 mV; accuracy ±0.5% + 2 counts

• DC Voltage: ranges 6.000 V / 60.00 V / 600.0 V; accuracy ±0.5% + 2 counts

• AC Voltage (True-RMS): up to 600.0 V; accuracy 1.0% + 3 counts (45-500 Hz), 2.0% + 3 counts (500 Hz-1 kHz)

• Continuity: range up to 600 Ω; beeper on under ~20 Ω; detects opens or shorts ≥500 µs

• Resistance: ranges 600.0 Ω to 40.00 MΩ; accuracy 0.9% + 1 count on lower ranges, 5% + 2 on highest range

Applications

• Routine electrical troubleshooting in residential, commercial or industrial settings

• Checking voltage safely, avoiding ghost readings

• Testing continuity and resistance in wiring and components

• Capturing variations of voltage for diagnosing intermittent or fluctuating circuits

Why Choose the Fluke 114

• True-RMS accuracy ensures reliable readings even with distorted signals

• AutoVolt and Low-Z features improve safety and reduce misdiagnosis

• Long battery life and rugged build for reliable field performance

• Compact design allows easy single-handed operation

Order Now

The Fluke 114 is part of Fluke’s 110-series electrical multimeters. Available for purchase. Ships worldwide.
