Fluke 113

Fluke 113 – Overview

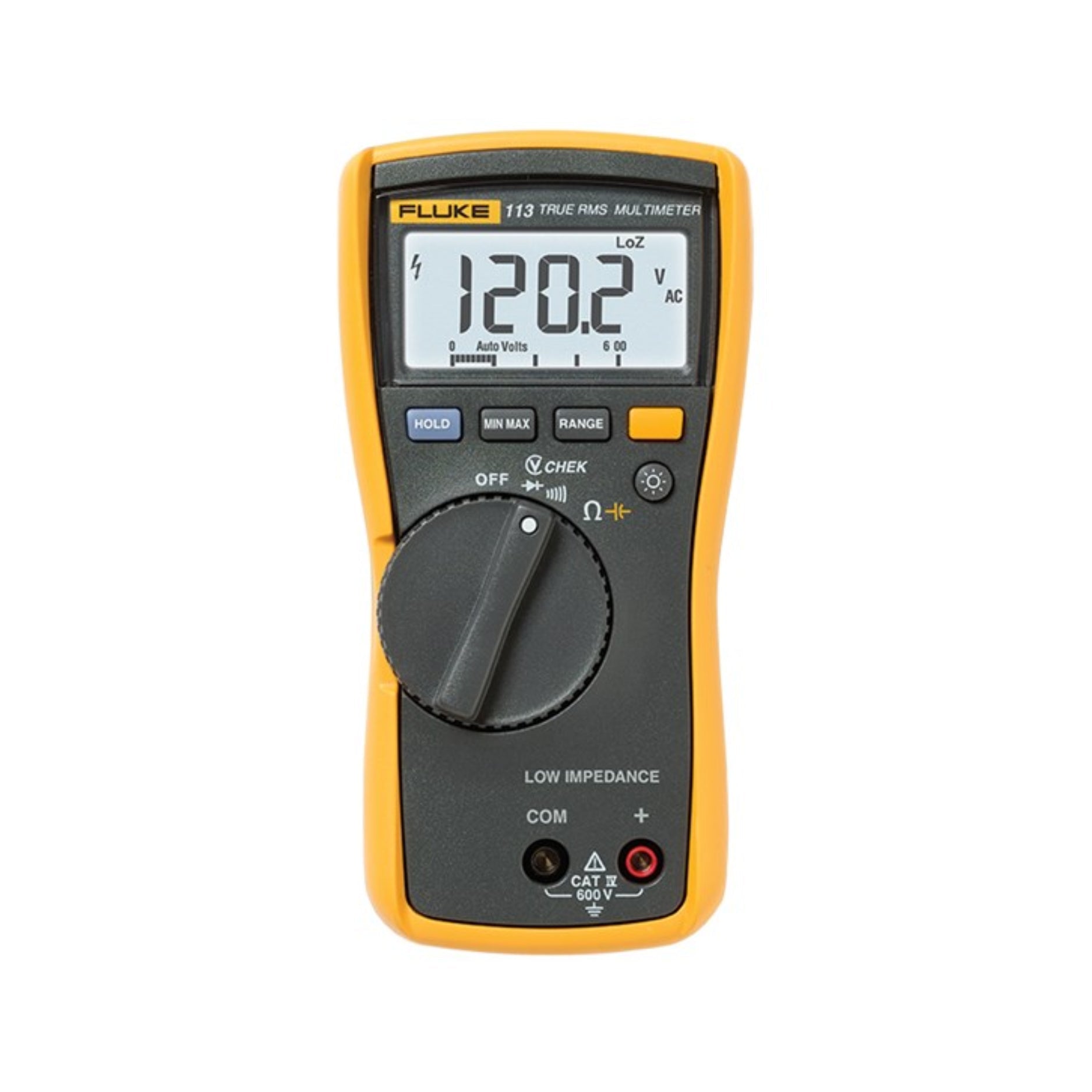

The Fluke 113 Utility Multimeter is a rugged, easy-to-use instrument designed for basic electrical testing. It offers low-impedance voltage detection (VCHEK) to avoid ghost voltages, measures both AC/DC voltage with True-RMS, tests continuity and diodes, and includes a large, backlit display and built-in holster with probe holders—perfect for field technicians, electricians, or general maintenance tasks.

Key Features

• VCHEK™ low-impedance (LoZ) function for detecting voltage or continuity in same dial position

• True-RMS AC voltage for accurate measurements on non-linear loads

• Large backlit display for visibility in low light

• Diode test, continuity test with audible beeper

• Min/Max recording of fluctuating signals

• Auto and manual ranging modes

• Triple safety category rating: CAT IV 600 V

• Integral holster with probe storage

Technical Specifications

• Part Number: Fluke 113

• AC/DC Voltage Ranges (VCHEK): 6.000 V / 60.00 V / 600.0 V

• Resolution (Voltage): 0.001 V / 0.01 V / 0.1 V

• AC/DC Voltage Accuracy:
    • DC & 45-500 Hz: ±(2.0 % + 3 counts)
    • 500 Hz - 1 kHz: ±(4.0 % + 3 counts)

• Diode Test Range: 2.000 V, Resolution 0.001 V, Accuracy ~2.0 % + 3

• Continuity: Beeper threshold < 20 Ω, off > 250 Ω, detect opens/shorts ≥ 500 µs

• Resistance Ranges: 600 Ω, 6 kΩ, 60 kΩ; Resolution varies (0.1 Ω to 0.01 kΩ)

• Resistance Accuracy: ~0.9 % + 1 to +2 counts depending on range

• Capacitance Ranges: 1,000 nF; 10 µF; 100 µF; 9,999 µF

• Capacitance Accuracy: ~1.9 % + 2 counts (higher error on largest range)

• Max Voltage Rating: 600 V between any terminal and earth ground

• Display: 3¾ digits, 6,000 counts, refresh ~4 readings/sec

• Operating Temp: -10 … +50 °C

• Storage Temp: -40 … +60 °C

• Battery: 9 V alkaline (installed)

• Battery Life: ~300 hours typical (without backlight)

• Dimensions: ~167.1 × 85.1 × 46.0 mm

• Weight: ~404 g

• Safety Standards: IEC/EN 61010-1, Pollution Degree 2

• Altitude (Use): up to ~2,000 m; Storage up to ~10,000 m

Applications

• Utility and field inspection work where safety and accuracy matter

• Diagnosing electrical circuits in residential or commercial environments

• Detecting ghost voltages, verifying voltage presence or absence safely

• Basic component testing (diodes, resistors) and fluctuations in signal monitoring

Why Choose the Fluke 113

• Combines essential meter features with safety and durability for everyday use

• LoZ-mode (VCHEK) helps avoid false voltage readings, increasing safety

• True-RMS ensures better accuracy with complex waveforms

• Long battery life and robust build make it reliable in the field

Order Now

The Fluke 113 Utility Multimeter is available now. Ships worldwide.
