Fluke 107

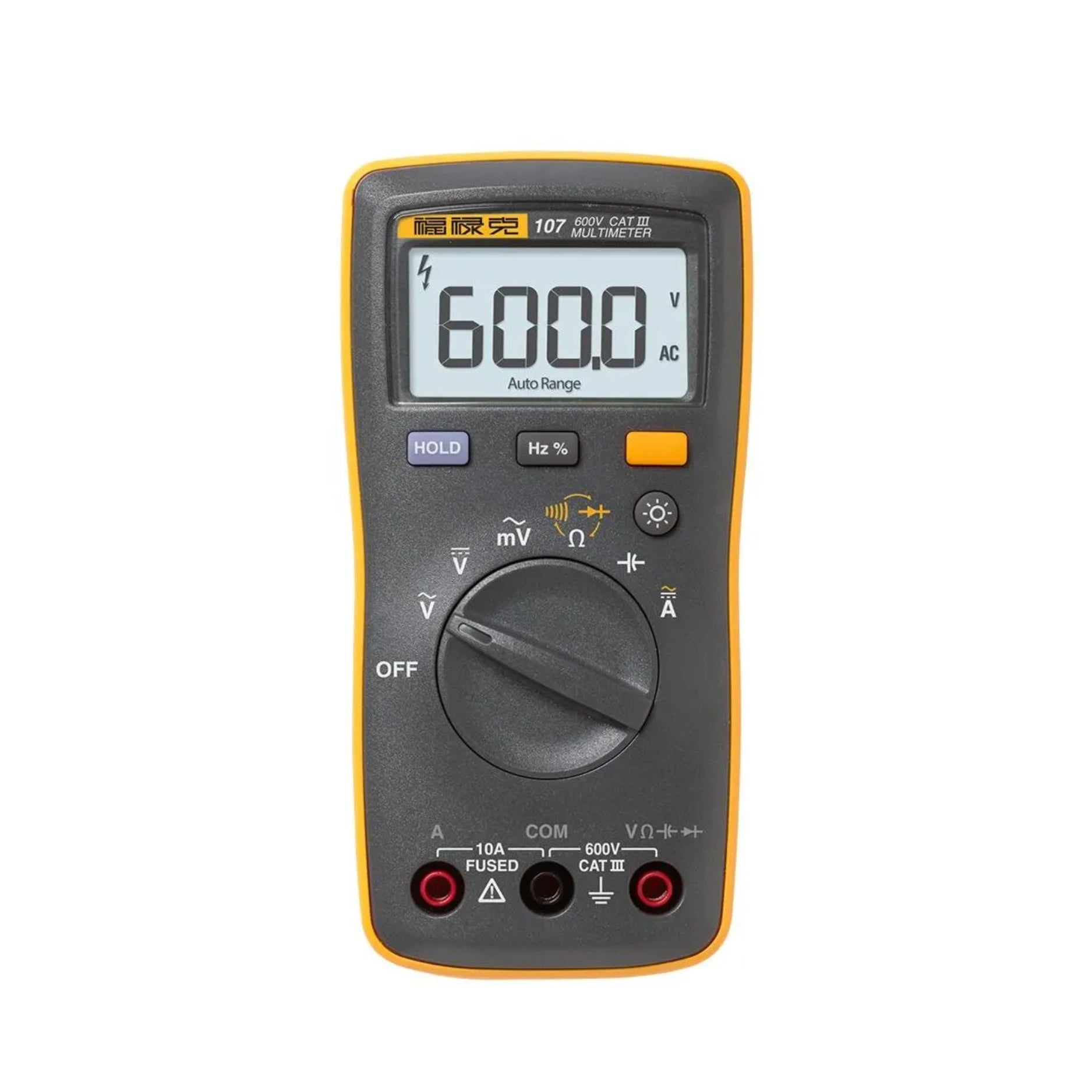

Fluke 107 – Palm-Sized Digital Multimeter

Overview

The Fluke 107 is a compact, lightweight, and reliable multimeter designed for essential electrical testing. Despite its small size, it provides all core functions needed for everyday troubleshooting, including AC and DC voltage and current, resistance, capacitance, diode test, frequency, and duty cycle. With CAT III 600 V safety rating, rugged build, and a backlit display, it is a trusted pocket tool for professionals.

Key Features

• Measures AC and DC voltage up to 600 V

• Measures AC and DC current up to 10 A

• Resistance measurement with continuity detection

• Capacitance measurement for electronic and motor testing

• Frequency and duty cycle measurement

• Diode test function

• Data hold and backlit display for improved usability

• Compact, portable, and lightweight design (~200 g)

• CAT III 600 V safety rating

Technical Specifications

• Model: 107

• DC Voltage Range: 6 V, 60 V, 600 V; accuracy ±0.5% + 3 counts

• AC Voltage Range: 6 V, 60 V, 600 V; accuracy ±1.0% + 3 counts

• DC Current Range: 4.000 A, 10.00 A; accuracy ±1.5% + 3 counts

• AC Current Range: 4.000 A, 10.00 A; accuracy ±1.5% + 3 counts

• Resistance: 400.0 Ω to 40.00 MΩ, resolution by range; accuracy ±0.5% to ±1.5%

• Capacitance: 50.00 nF to 1000 μF

• Frequency: 10 Hz to 100 kHz

• Duty Cycle: 1% to 99%

• Diode Test Range: up to 2.000 V

• Display: LCD, 6000 counts, 3 updates per second

• Operating Temperature: 0 °C to +40 °C

• Storage Temperature: −30 °C to +60 °C

• Power Supply: 2 AAA alkaline batteries

• Battery Life: up to 200 hours

• Dimensions: 142 × 69 × 28 mm

• Weight: ~200 g

• Safety Rating: CAT III 600 V

Applications

• Everyday troubleshooting in residential and commercial wiring

• Verifying circuits, fuses, and components

• Quick field diagnostics where portability is essential

• Backup tool for electricians and electronics technicians

Why Choose the Fluke 107

• Compact and pocket-sized yet full of essential test functions

• Reliable accuracy with True-RMS measurements

• Rugged safety design for professional use

• Easy to carry and use in tight spaces

Order Now

The Fluke 107 is part of Fluke’s pocket digital multimeter family. Available for purchase. Ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
