Overview

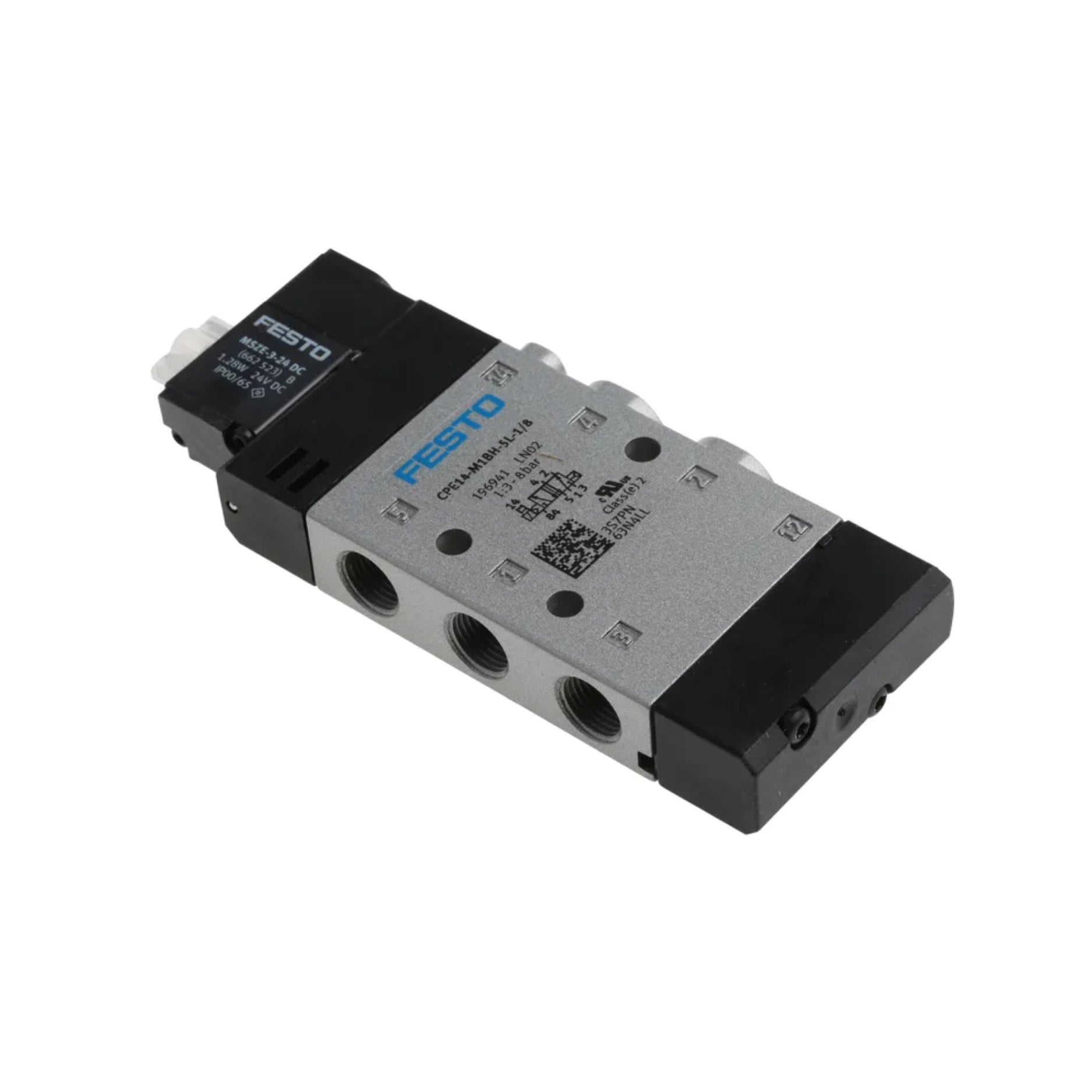

The Festo CPE14-M1BH-5L-1/8 is a compact and efficient 5/2-way monostable solenoid valve designed for precise control in pneumatic systems. With a 14 mm width, it is suitable for applications where space is limited. The valve offers a standard nominal flow rate of 800 l/min, ensuring reliable performance in various industrial automation settings.

Key Features

• Valve Function: 5/2-way, monostable
• Actuation Type: Electric
• Construction Width: 14 mm
• Standard Nominal Flow Rate: 800 l/min
• Pneumatic Working Ports: G1/8
• Operating Voltage: 24V DC
• Operating Pressure: 3 to 8 bar
• Design: Piston gate valve
• Reset Type: Pneumatic spring
• Degree of Protection: IP65 with plug socket

Technical Specifications

• Nominal Size: 6 mm
• Exhaust-Air Function: With flow control option
• Sealing Principle: Soft
• Mounting Position: Optional
• Manual Override: Detenting via accessory, non-detenting
• Type of Piloting: Pilot actuated
• Pilot Air Supply: Internal
• Flow Direction: Non-reversible
• Switching Time On: 24 ms
• Switching Time Off: 32 ms
• Duty Cycle: 100% in conjunction with holding current reduction
• Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
• Media Temperature: -5°C to 50°C
• Ambient Temperature: -5°C to 50°C
• Product Weight: 95 g
• Electrical Connection: 2-pin
• Type of Mounting: With through-hole
• Pneumatic Connections:
  • Port 1: G1/8
  • Port 2: G1/8
  • Port 3: G1/8
  • Port 4: G1/8
  • Port 5: G1/8
• Materials:
  • Housing: Die-cast aluminum
  • Seals: NBR
• Certifications:
  • c UL us - Recognized (OL)
  • Maritime classification (see certificate)
• Protection Class: IP65 with plug socket

Technical data sourced from Festo's official datasheet.

Applications

• Industrial Automation: Controls actuators in manufacturing processes.
• Material Handling: Manages pneumatic systems in conveyor operations.
• Packaging Machinery: Ensures precise movement in packaging lines.
• Robotics: Facilitates accurate control of pneumatic components in robotic systems.

Why Choose the Festo CPE14-M1BH-5L-1/8?

• Compact Design: Slim 14 mm width ideal for space-constrained installations.
• High Flow Rate: 800 l/min flow rate suitable for demanding pneumatic applications.
• Reliable Performance: Durable construction ensures longevity and consistent operation.
• Flexible Installation: Optional mounting positions and comprehensive port configurations enhance adaptability.

Order Now

Enhance your pneumatic control systems with the Festo CPE14-M1BH-5L-1/8 solenoid valve. Experience precise control, reliable performance, and seamless integration into your industrial automation applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
