CPE18-M1H-5J-1/4 | High-Performance 5/2-Way Pneumatic Solenoid

CPE18-M1H-5J-1/4 | High-Performance Pneumatic Solenoid Valve

Overview

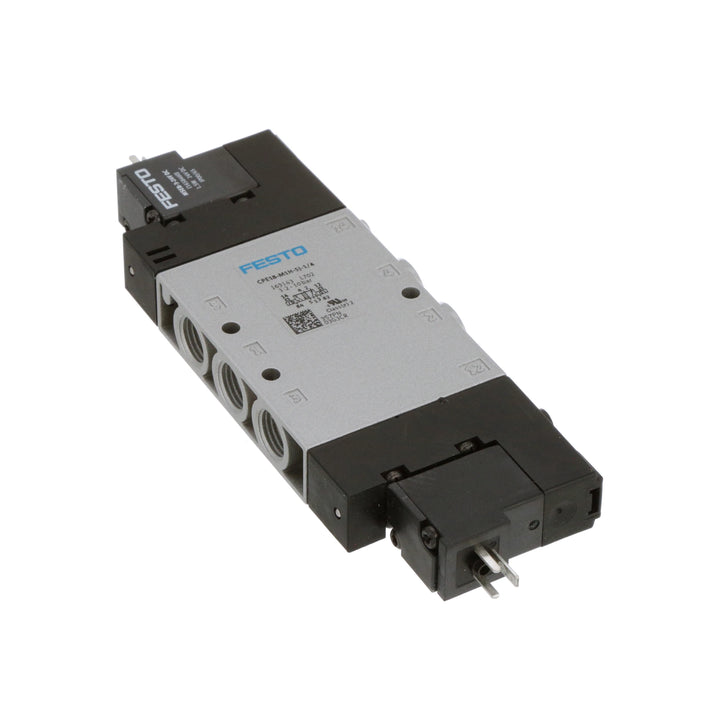

The CPE18-M1H-5J-1/4 is a robust and efficient 5/2-way monostable solenoid valve, designed for precise airflow control in industrial automation systems. Featuring a compact 18 mm construction width, G1/4 pneumatic ports, and fast switching performance, this valve ensures optimal actuation for cylinders and pneumatic control systems.

Key Features

• Valve Function: 5/2-way monostable solenoid valve
• Actuation Type: Electrical
• Construction Width: 18 mm for compact integration
• Pneumatic Working Ports: G1/4 for seamless system compatibility
• Flow Rate: High-efficiency airflow optimization
• Operating Pressure Range: Designed for industrial pneumatic applications
• Design: Piston spool valve for enhanced durability
• Reset Method: Pneumatic spring for reliable operation
• Degree of Protection: IP65 (when used with an appropriate plug socket)
• Manual Override: Available for flexible operation control
• Mounting Position: Multiple installation options
• Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]

Technical Specifications

• Nominal Size: Designed for optimized pneumatic efficiency
• Exhaust-Air Function: With flow control option
• Sealing Principle: Soft-seal design for leak-free operation
• Pilot Air Supply: Internal for streamlined actuation
• Switching Time: Fast response for precision control
• Duty Cycle: 100% (with holding current reduction)
• Electrical Connection: Standard 2-pin connection
• Weight: Compact and lightweight for easy installation
• Material Composition:
  • Seals: High-quality NBR
  • Housing: Durable die-cast aluminum

Applications

• Factory Automation: Controls actuators and pneumatic systems efficiently
• Manufacturing Processes: Enhances precision in assembly lines
• Pneumatic Control Systems: Ensures smooth and stable airflow regulation
• Robotic Motion Control: Provides fast and accurate pneumatic actuation

Why Choose the CPE18-M1H-5J-1/4?

• Compact 18 mm width for space-saving installation
• High-performance flow control with G1/4 connectivity
• Reliable and durable operation for industrial environments
• Flexible mounting and manual override options for system adaptability

Order Now

Optimize your pneumatic automation system with the CPE18-M1H-5J-1/4 solenoid valve. Designed for high efficiency, precision control, and long-lasting industrial performance.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
