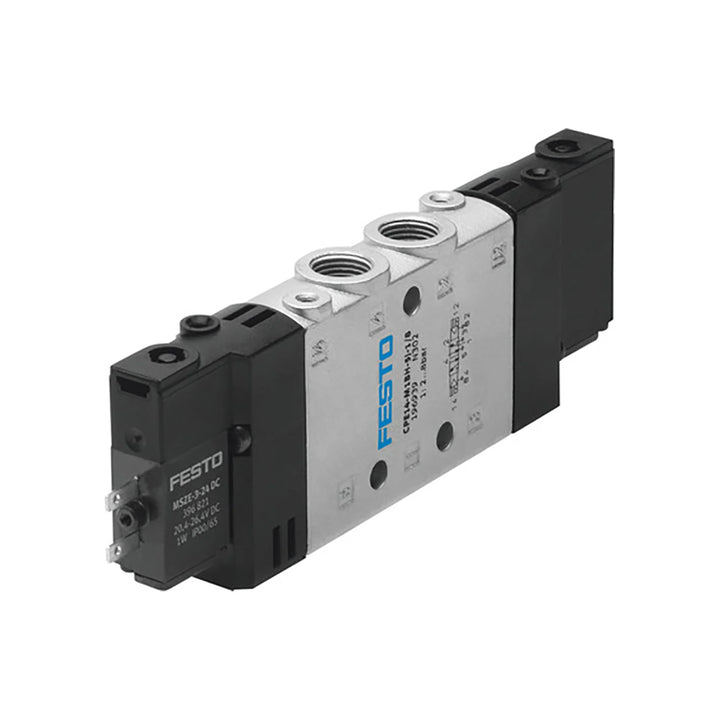

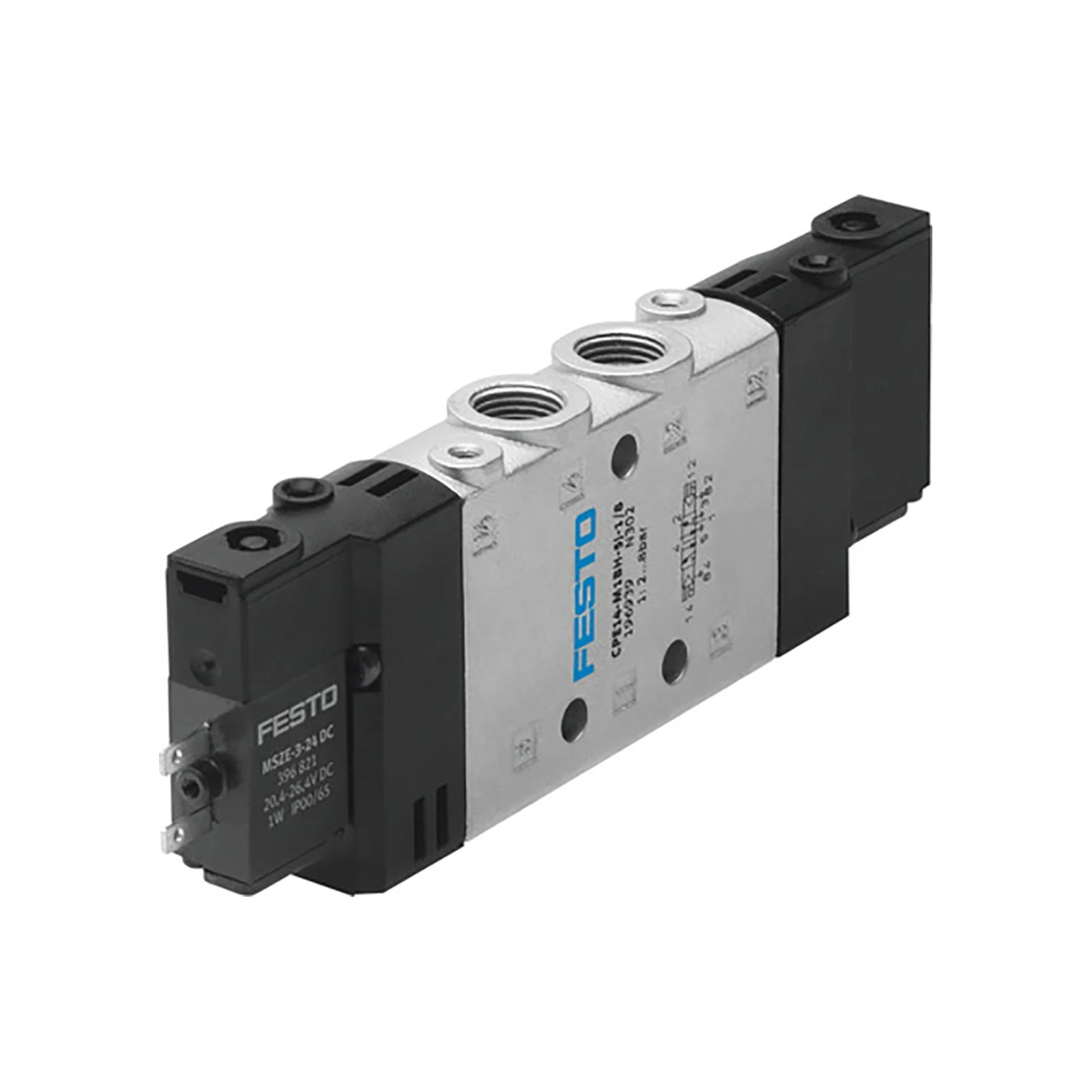

CPE14-M1BH-5J-1/8 | 5/2-Way Pneumatic Solenoid Valve

CPE14-M1BH-5J-1/8 | High-Performance Pneumatic Solenoid Valve

Overview

The CPE14-M1BH-5J-1/8 is a compact and efficient 5/2-way solenoid valve engineered for precise pneumatic control in industrial automation. With a 14 mm construction width, G1/8 ports, and optimized flow efficiency, this valve ensures fast and reliable actuation for pneumatic cylinders and automation systems.

Key Features

• Valve Function: 5/2-way, monostable solenoid valve
• Actuation Type: Electrical
• Construction Width: 14 mm for compact integration
• Pneumatic Working Ports: G1/8 for standard pneumatic systems
• Flow Rate: Optimized for high-performance airflow
• Operating Pressure: Suitable for industrial applications
• Design: Piston spool valve for durable and reliable performance
• Reset Method: Pneumatic spring for consistent operation
• Degree of Protection: IP65 (when used with appropriate plug socket)
• Manual Override: Available for flexible control options
• Mounting Position: Versatile installation options
• Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]

Technical Specifications

• Nominal Size: Engineered for high-efficiency airflow
• Exhaust-Air Function: Flow control options available
• Sealing Principle: Soft-seal design for reliable performance
• Pilot Air Supply: Internal for seamless actuation
• Switching Time: Fast response for precise control
• Duty Cycle: 100% (with holding current reduction)
• Electrical Connection: Standard 2-pin connection
• Weight: Compact and lightweight for easy installation
• Material Composition:
  • Seals: High-quality NBR
  • Housing: Durable die-cast aluminum

Applications

• Factory Automation: Controls actuators and pneumatic systems in automated production
• Manufacturing Processes: Enhances efficiency in assembly lines
• Pneumatic Control Systems: Ensures precise and reliable airflow management
• Robotics and Motion Control: Provides stable and fast pneumatic actuation

Why Choose the CPE14-M1BH-5J-1/8?

• Compact 14 mm design for space-saving installation
• High-performance flow control with G1/8 connectivity
• Reliable and durable operation for industrial environments
• Flexible mounting and manual override options for customization

Order Now

Enhance your pneumatic automation system with the CPE14-M1BH-5J-1/8 solenoid valve. Designed for efficiency, precision, and long-lasting performance in industrial applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
