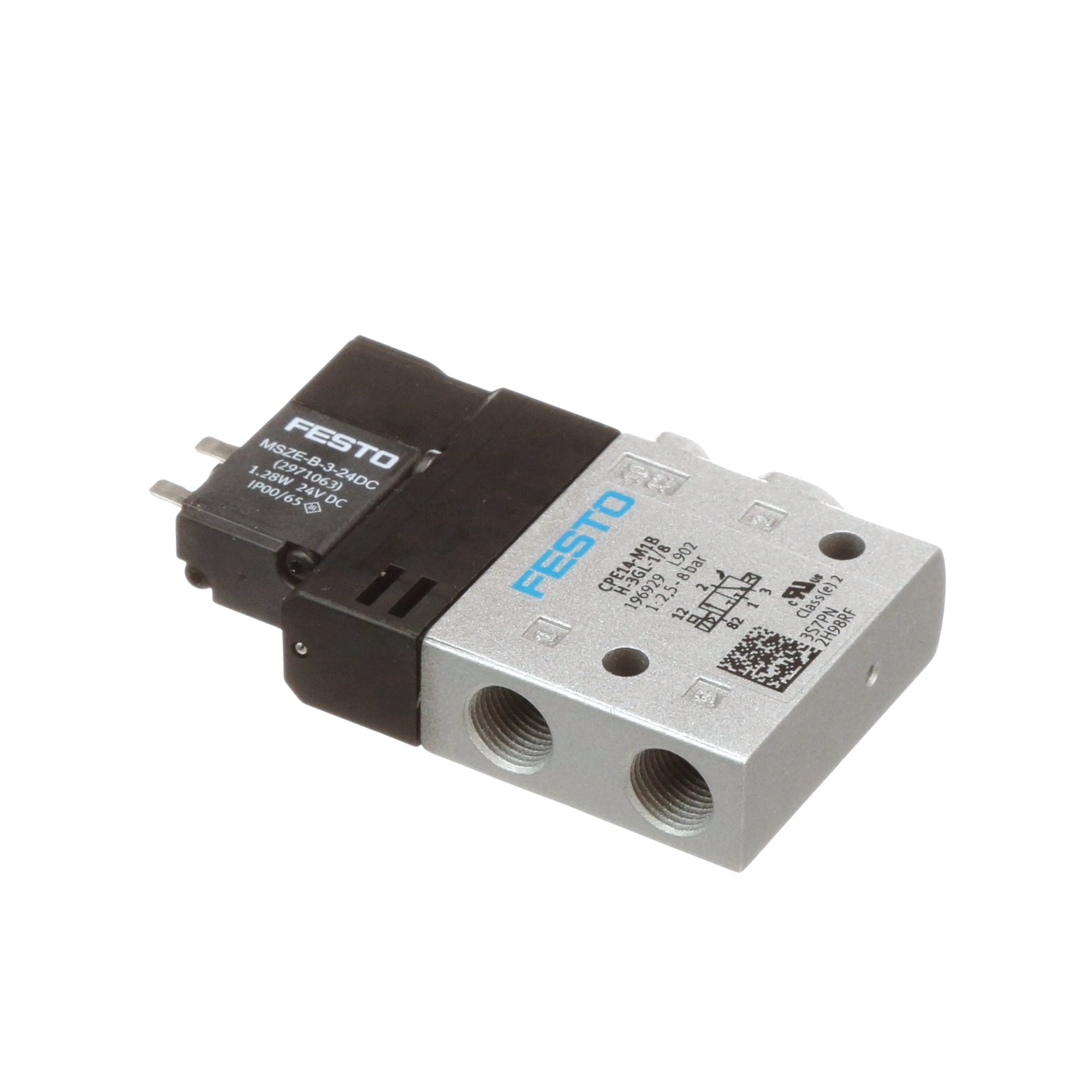

CPE14-M1BH-3GL-1/8 | 3/2-Way Pneumatic Solenoid Valve

CPE14-M1BH-3GL-1/8 | 3/2-Way Pneumatic Solenoid Valve

Overview

The CPE14-M1BH-3GL-1/8 is a compact and efficient 3/2-way pneumatic solenoid valve, designed for industrial automation applications that require precise airflow control. With a 14 mm construction width, G1/8 ports, and high flow efficiency, this valve is ideal for systems that demand reliability and rapid response.

Key Features

• Valve Function: 3/2-way, normally closed
• Actuation Type: Electrical
• Construction Width: 14 mm for space-saving design
• Pneumatic Working Ports: G1/8 for easy integration
• Standard Nominal Flow Rate: Optimized for industrial use
• Operating Pressure: Suitable for pneumatic automation applications
• Design: Piston spool valve for enhanced durability
• Reset Method: Pneumatic spring for reliable operation
• Degree of Protection: IP65 (with appropriate plug socket)
• Manual Override: Optional accessory for flexible control
• Mounting Position: Various mounting options for versatile installations
• Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]

Technical Specifications

• Nominal Size: Designed for precision airflow control
• Exhaust-Air Function: Flow control option available
• Sealing Principle: Soft-seal design for leak-free operation
• Pilot Air Supply: Internal for seamless actuation
• Switching Time: Engineered for rapid response
• Duty Cycle: 100% (with holding current reduction)
• Electrical Connection: Standard 2-pin configuration
• Weight: Lightweight and compact for easy installation
• Material Composition:
  • Seals: High-quality NBR
  • Housing: Durable die-cast aluminum

Applications

• Industrial Automation: Controls actuators and pneumatic systems
• Manufacturing Processes: Enhances efficiency in assembly lines
• Pneumatic Control Systems: Ensures precise and reliable airflow management
• Robotics and Motion Control: Provides rapid and stable pneumatic actuation

Why Choose the CPE14-M1BH-3GL-1/8?

• Compact and lightweight design for easy integration
• High-performance flow control with G1/8 connectivity
• Reliable and durable operation for industrial environments
• Flexible mounting and manual override options for customization

Order Now

Enhance your pneumatic control system with the CPE14-M1BH-3GL-1/8 solenoid valve. Designed for industrial applications requiring efficient and reliable pneumatic operation.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
