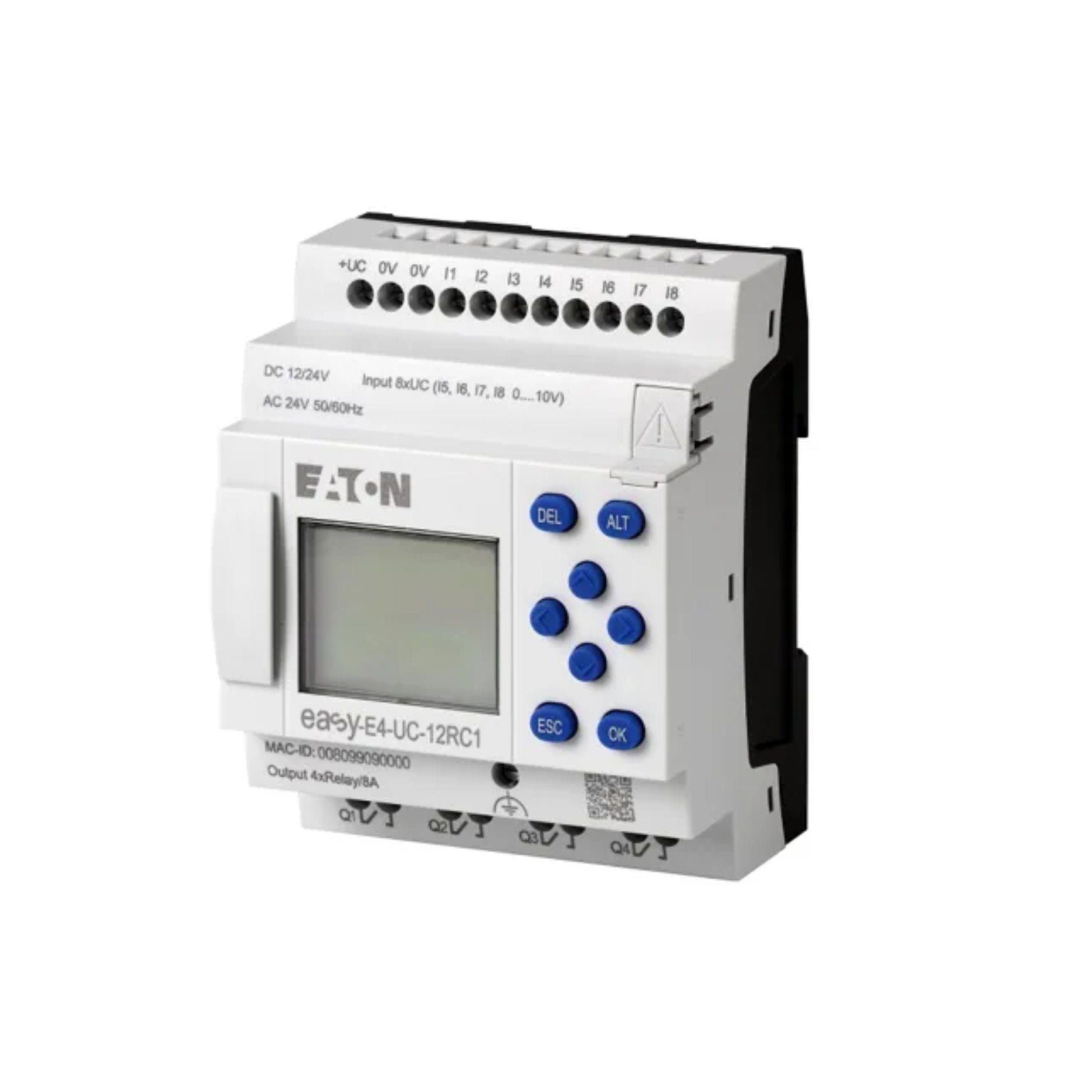

Eaton EASY-E4-UC-12RC1 | easyE4 Control Relay with Display, 12/24V DC, 24V AC, 12 I/O

Overview

The Eaton EASY-E4-UC-12RC1 is a versatile and compact control relay from the easyE4 series, designed to simplify and enhance automation tasks across various applications. Equipped with a display and an integrated Ethernet interface, this device offers flexibility and ease of use for both simple and complex control tasks.

Key Features

• Flexible Power Supply Options: Operates on 12/24V DC or 24V AC, accommodating diverse power environments.
• Comprehensive I/O Configuration:
  • 8 Digital Inputs: Four of which can be configured as analog inputs, allowing for versatile signal processing.
  • 4 Relay Outputs: Suitable for controlling various actuators and devices.
• Integrated Ethernet Interface: Enables seamless networking and remote access capabilities.
• Expandable Design: Supports expansion with additional easyE4 modules to accommodate growing system requirements.
• User-Friendly Display and Keypad: Facilitates easy programming, monitoring, and manual control directly on the device.
• Real-Time Clock: Allows for precise time-based control operations.

Technical Specifications

• Model: EASY-E4-UC-12RC1
• Power Supply: 12/24V DC or 24V AC
• Digital Inputs: 8 (4 configurable as analog inputs)
• Analog Input Range: 0-10V DC
• Relay Outputs: 4
• Ethernet Port: RJ45, 10/100 Mbps
• Programming Languages Supported: Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), and Easy Programming (EDP)
• Dimensions (W x H x D): 71.5 mm x 90 mm x 58 mm
• Mounting: DIN rail (IEC/EN 60715) or screw mounting with optional brackets
• Operating Temperature: -25°C to +55°C

Applications

• Industrial Automation: Ideal for controlling machinery, conveyors, and process systems.
• Building Automation: Suitable for managing lighting, HVAC systems, and access control.
• Energy Management: Facilitates monitoring and control of energy consumption and distribution.
• Home Automation: Enables intelligent control of home appliances and security systems.

Why Choose the Eaton EASY-E4-UC-12RC1?

• Versatility: Combines multiple functions such as logic operations, timing, counting, and real-time control in a single compact device.
• Ease of Use: The intuitive display and keypad, along with the easySoft programming software, make setup and operation straightforward.
• Scalability: The ability to expand the system with additional modules ensures adaptability to future requirements.
• Connectivity: Integrated Ethernet interface allows for remote monitoring and control, enhancing system integration capabilities.

Order Now

Fast shipping and worldwide delivery available. Enhance your automation solutions with the Eaton EASY-E4-UC-12RC1 control relay.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
