Schneider Electric LXM62DU60D21000

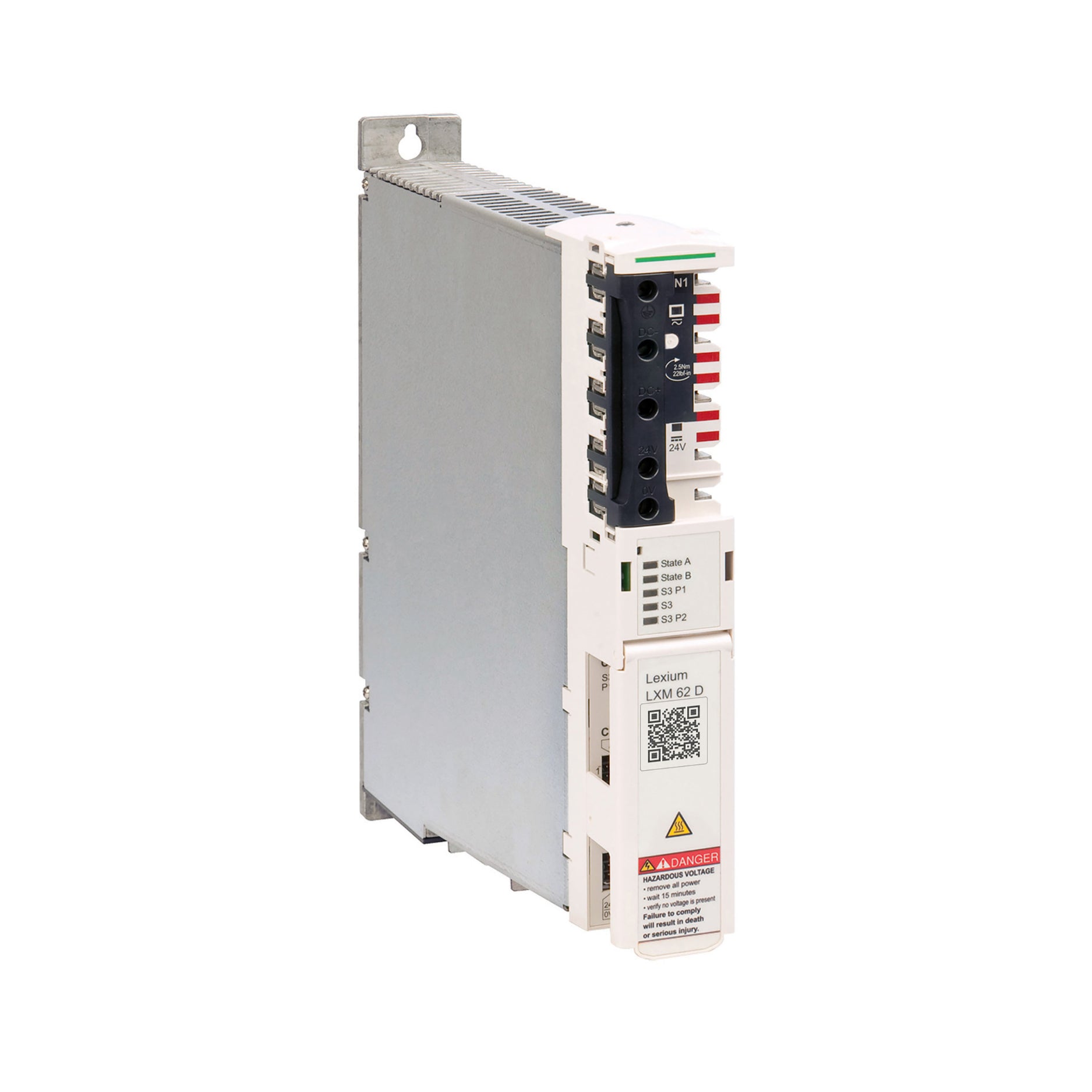

Schneider Electric LXM62DU60D21000 – Lexium 62 Double Drive

Overview

The Schneider Electric LXM62DU60D21000 is a Lexium 62 double drive from the PacDrive 3 automation platform, delivering 0.95 kW continuous power with 2 A output current at 4 kHz. Designed for high-performance multi-axis servo systems, it enables compact and reliable machine automation.

With integrated SERCOS III communication, the drive offers seamless connectivity and is equipped with 2 digital inputs, 2 touch probe inputs, and 2 digital outputs. Weighing only 3 kg, the compact IP20-rated unit is optimized for general machine control, packaging automation, and material handling applications.

Key Features

• Brand: Schneider Electric

• Range: Lexium 62 & Motors

• Model: LXM62DU60D21000

• Device Type: Double Drive

• Rated Power: 0.95 kW

• Rated Supply Voltage: 24 V DC

• Continuous Output Current: 2 A at 4 kHz

• Peak Output Current: 6 A (3 s)

• Switching Frequency: 8 kHz

• I/O:

  • 2 digital inputs

  • 2 touch probe inputs

  • 2 digital outputs

• Communication: Integrated SERCOS III

• Electrical Connection: Terminals CN4, CN5, CN6, CN7

• Degree of Protection: IP20 (IEC 60529)

• Net Weight: 3 kg (6.6 lb)

Motor Compatibility

• SH3 servo motor (55 mm, 1–3 stacks)

• SH3 servo motor (70 mm, 1–3 stacks, high torque optimized)

• SH3 servo motor (100 mm, 1 stack, high torque)

• MH3 servo motor (70 mm, 1 stack)

• SHS servo motors

Technical Specifications

• Continuous Power: 0.95 kW

• Nominal Power: 0.95 kW

• Supply Voltage Options:

  • 400 V three-phase (±10 %)

  • 230 V three-phase (±10 %)

  • 230 V single-phase (±10 %)

• Supply Frequency: 50/60 Hz (±5 %)

• Output Current: 2 A continuous, 6 A peak (3 s)

• Overvoltage Category: III

• Standards:

  • UL 508C

  • EN 61800-5-1

  • EN 62061

  • EN/ISO 13849-1

  • EN/ISO 13849-2

  • CSA C22.2 No 14

• Certifications: CE, CSA, EAC, TÜV, UL

Applications

• High-speed packaging machinery

• General industrial machine control

• Material handling and conveyor systems

• Multi-axis synchronization in PacDrive 3 environments

Why Choose Schneider Electric LXM62DU60D21000

• Double drive design reduces panel space

• Compact 0.95 kW unit optimized for entry-level axes

• Seamless SERCOS III communication integration

• Global compliance with CE, UL, CSA, TÜV, EAC certifications

• Broad compatibility with SH3, MH3, and SHS servo motors

Order Now

The Schneider Electric LXM62DU60D21000 Lexium 62 double drive is available and ships worldwide.
