Schneider Electric LXM62DU60C21000

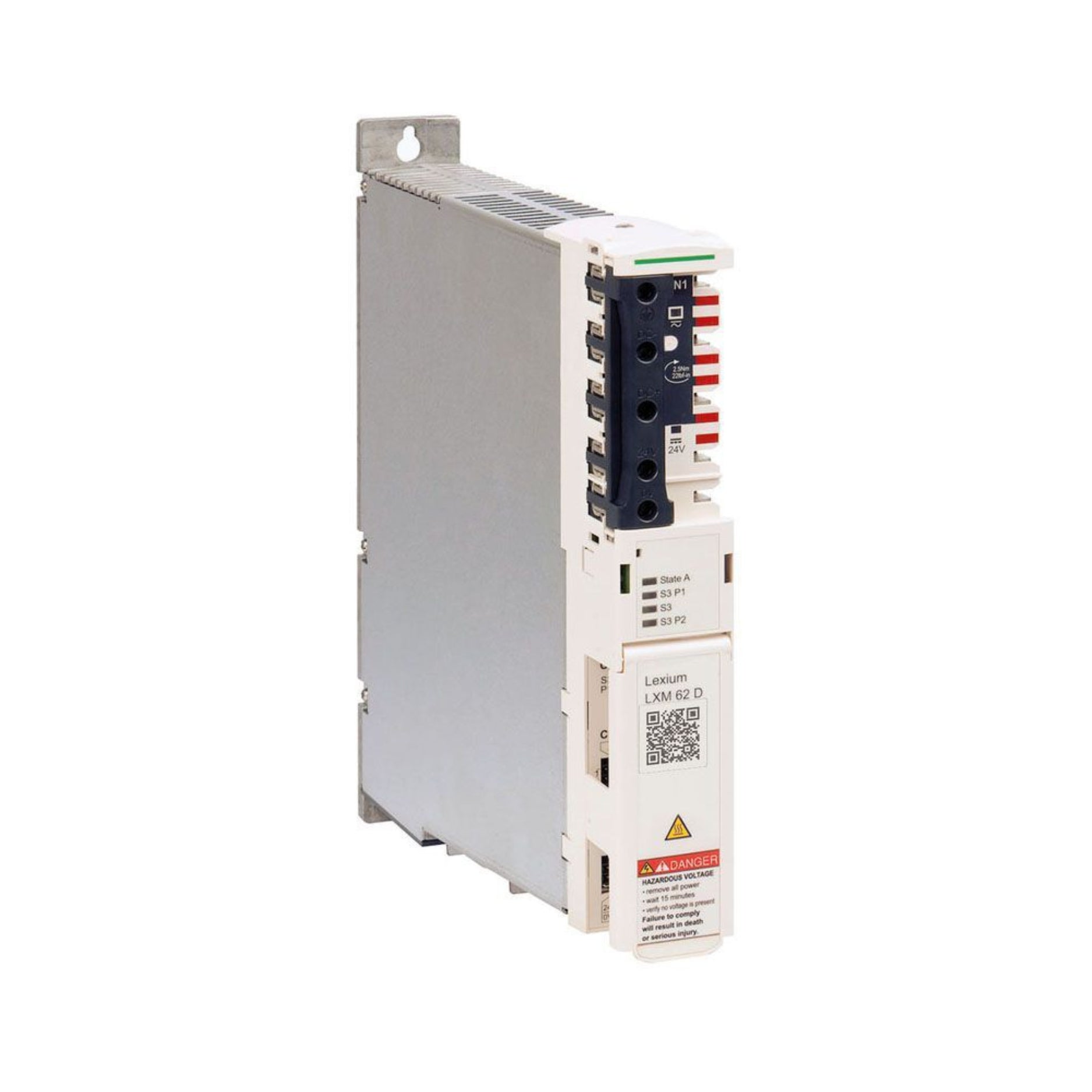

Schneider Electric LXM62DU60C21000 – PacDrive 3 Single Drive

Overview

The Schneider Electric LXM62DU60C21000 is a PacDrive 3 single drive designed to deliver 0.95 kW nominal power with reliable servo motor control. Supporting three-phase supply at 400 V or 230 V (and also single-phase 230 V), this compact drive achieves high efficiency while maintaining robust performance. With a continuous output current of 2 A and a 3-second peak current of 6 A, it ensures precise torque and speed control across supported motor families such as SHS, SH3, and MH3.

The integrated SERCOS III communication interface simplifies system integration, while the built-in STO (Safe Torque Off) function provides enhanced safety. Certified to international standards, the drive is engineered for high reliability in industrial environments.

Key Features

• Brand: Schneider Electric

• Range: PacDrive 3

• Model: LXM62DU60C21000

• Device Type: Single Drive

• Rated Power: 0.95 kW

• Rated Supply Voltage:

  • 400 V three-phase (±10 %)

  • 230 V three-phase (±10 %)

  • 230 V single-phase (±10 %)

• Supply Frequency: 50/60 Hz (±5 %)

• Continuous Output Current: 2 A (4 kHz)

• Peak Output Current (3 s): 6 A (4 kHz)

• Switching Frequency: 8 kHz

• Safety Function: STO (Safe Torque Off)

• Communication: Integrated SERCOS III

Motor Compatibility

• SHS servo motors

• SH3 servo motors (55 mm, 70 mm, 100 mm) – optimized torque/speed options

• MH3 servo motors (70 mm) – torque/speed optimized

Technical Specifications

• Dimensions (W × H × D): 44.5 × 310 × 270 mm (1.8 × 12.2 × 10.6 in)

• Net Weight: 3 kg (6.6 lb)

• Packaging Weight: 3.84 kg (8.47 lb)

• Degree of Protection: IP20 (IEC 60529)

• Operating Temperature: +5…55 °C (41…131 °F)

• Relative Humidity: 5…85 %

• Vibration Resistance: 10 m/s² (IEC 60721-3-3)

• Shock Resistance: 100 m/s² (IEC 60721-3-3)

• Pollution Degree: 2 (IEC 61800-5-2)

• Standards: IEC 61131-2, UL 508C, CSA C22.2, ISO 13849, IEC 61508

• Certifications: CE, CSA, TÜV, UL, EAC

Applications

• Servo motor control in PacDrive 3 systems

• Packaging and processing machinery

• Robotics and assembly automation

• Multi-axis synchronization with SERCOS III networks

• Safe motion control with STO functionality

Why Choose Schneider Electric LXM62DU60C21000

• Compact PacDrive 3 drive with 0.95 kW power rating

• Compatible with multiple Schneider Electric servo motor families

• Integrated SERCOS III for seamless connectivity

• Built-in STO safety function for compliance and protection

• Certified to global industrial automation standards

Order Now

The Schneider Electric LXM62DU60C21000 PacDrive 3 single drive is available and ships worldwide.
