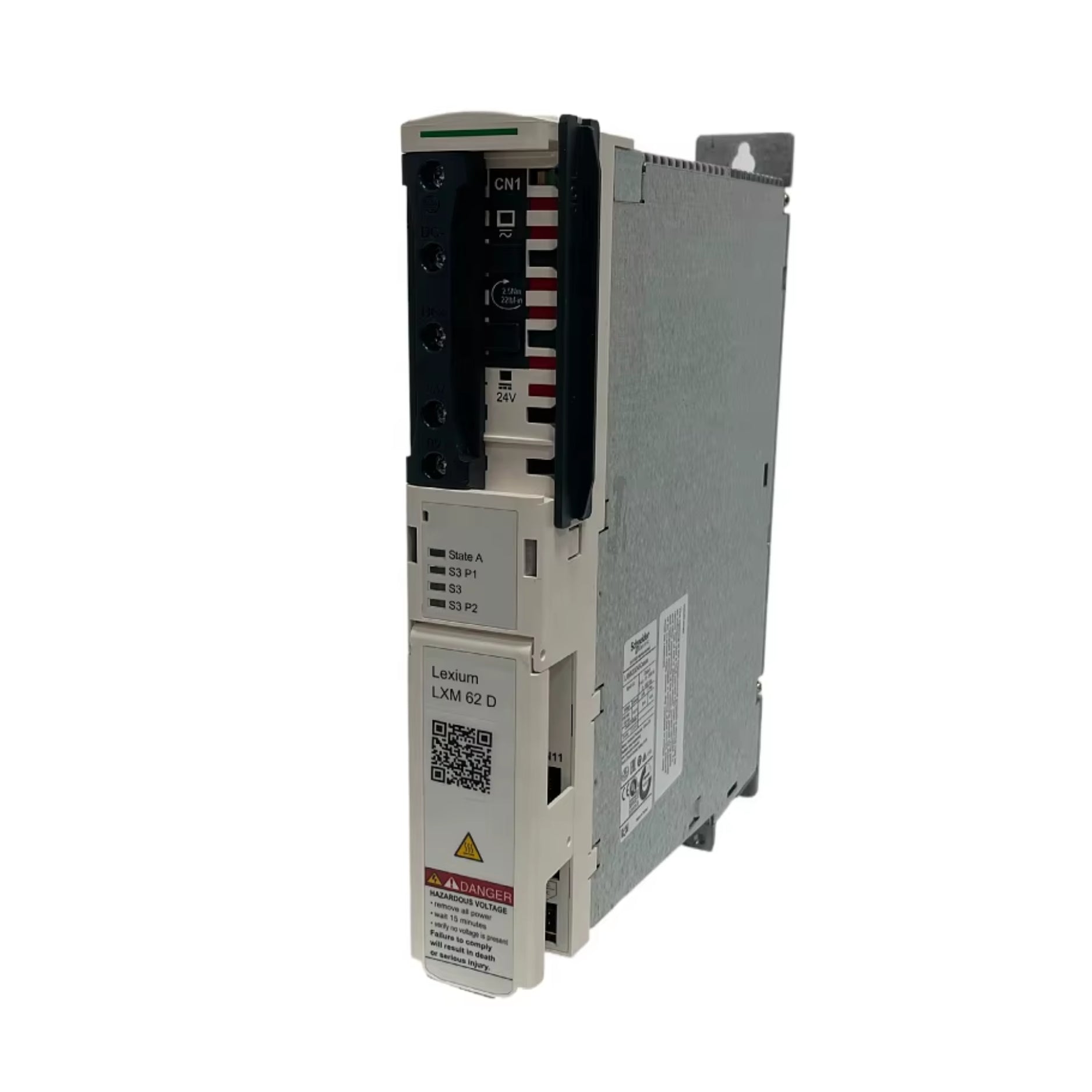

Schneider Electric LXM62DD45C21000 – Lexium 62 Single Drive

Overview

The Schneider Electric LXM62DD45C21000 is a powerful Lexium 62 single drive from the PacDrive 3 range, designed to control high-performance servo motors in demanding automation systems. With a continuous power rating of 9.6 kW and a 20 A output current at 4 kHz, it provides reliable performance for large-scale machine automation, packaging, and material handling applications.

Equipped with 2 digital inputs, 2 touch probe inputs, and 2 digital outputs, the drive ensures precise motion control. Its integrated SERCOS III communication interface allows seamless integration into PacDrive 3 multi-axis servo systems. Certified to global standards and housed in a compact IP20-rated design, this unit delivers both performance and safety in industrial environments.

Key Features

• Brand: Schneider Electric

• Range: Lexium 62 & Motors

• Model: LXM62DD45C21000

• Device Type: Single Drive

• Rated Power: 9.6 kW

• Rated Supply Voltage: 24 V DC

• Continuous Output Current: 20 A at 4 kHz

• I/O:

  • 2 digital inputs

  • 2 touch probe inputs

  • 2 digital outputs

• Communication: Integrated SERCOS III

• Electrical Connection: Connector type

• Degree of Protection: IP20 (IEC 60529)

• Net Weight: 3 kg (6.6 lb)

Motor Compatibility

• SH3 servo motor (140 mm, 4 motor stacks)

• SH3 servo motor (205 mm, 1 motor stack)

• MH3 servo motor (140 mm, 2 or 3 motor stacks)

• MH3 servo motor (190 mm, 1 motor stack)

• MH3 servo motor (100 mm, 3 motor stacks)

• SH3 servo motor (140 mm, 2 or 3 motor stacks)

• SHS servo motors

Technical Specifications

• Continuous Power: 9.6 kW

• Supply Voltage: 24 V DC

• Output Current: 20 A at 4 kHz

• Communication Protocol: SERCOS III

• System Integration: Compatible with PacDrive 3 LMC Pro, Pro2, and Eco controllers

• Certifications: CE, CSA, EAC, TÜV, UL

• Standards:

  • EN 61800-5-2

  • EN 61800-3

  • EN/ISO 13849-1

  • EN/ISO 13849-2

  • UL 508C

  • CSA C22.2 No 14

  • EN 62061

  • IEC 61508

Applications

• High-power packaging machinery

• Heavy-duty machine automation

• Material handling and conveying systems

• Multi-axis motion control requiring high torque and speed

Why Choose Schneider Electric LXM62DD45C21000

• High-performance 9.6 kW single drive for demanding systems

• Integrated SERCOS III for seamless communication

• Flexible I/O for precise machine synchronization

• Certified for global industrial safety standards

• Optimized compatibility with Schneider Electric SH3, SHS, and MH3 servo motors

Order Now

The Schneider Electric LXM62DD45C21000 Lexium 62 single drive is available and ships worldwide.
