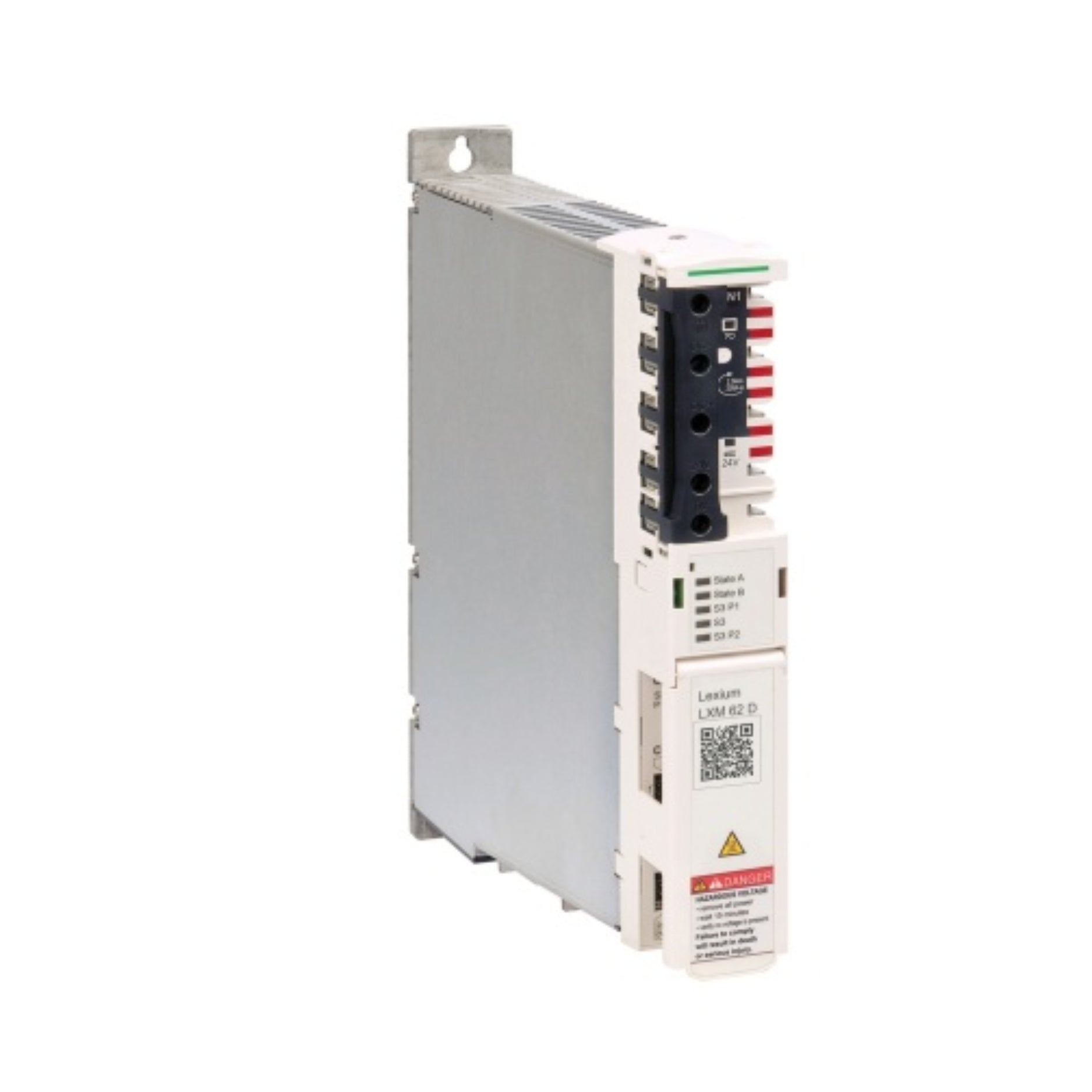

Schneider Electric LXM62DD27D21000 – Lexium 62 Double Drive

Overview

The Schneider Electric LXM62DD27D21000 is a Lexium 62 double drive from the PacDrive 3 series, delivering 4.3 kW continuous power with 9 A output current at 4 kHz. Featuring SERCOS III physical interface, it provides seamless integration into PacDrive 3 automation solutions.

With STO (Safe Torque Off) functionality, 2 digital inputs, 2 touch probe inputs, and 2 digital outputs, this compact and IP20-rated unit ensures reliable servo control. Weighing 3 kg, it is designed for high-performance packaging, material handling, and general industrial automation.

Key Features

• Brand: Schneider Electric

• Range: Lexium 62 & Motors

• Model: LXM62DD27D21000

• Device Type: Double Drive

• Rated Power: 4.3 kW

• Rated Supply Voltage: 24 V DC (via power supply module)

• Continuous Output Current: 9 A at 4 kHz

• Peak Output Current: 27 A (3 s)

• Overvoltage Category: III

• Safety Function: STO (Safe Torque Off)

• I/O:

  • 2 digital inputs

  • 2 touch probe inputs

  • 2 digital outputs

• Communication: SERCOS III

• Electrical Connection: Terminals CN4, CN5, CN6, CN7

• Net Weight: 3 kg (6.61 lb)

• Degree of Protection: IP20

Motor Compatibility

• SH3 servo motors:

  • 100 mm (3–4 stacks)

  • 140 mm (1 stack)

• MH3 servo motors:

  • 100 mm (2 stacks)

• SHS servo motors

Technical Specifications

• Continuous Power: 4.3 kW

• Nominal Power: 4.3 kW

• Continuous Output Current: 9 A

• Peak Output Current: 27 A (3 s)

• Supply Voltage Options:

  • 400 V three-phase (±10 %)

  • 230 V three-phase (±10 %)

  • 230 V single-phase (±10 %)

• Supply Frequency: 50/60 Hz (±5 %)

• Electrical Connection:

  • CN4: 0.2–15 mm² (AWG 24–16)

  • CN5: 0.5–16 mm² (AWG 20–6)

  • CN6: 0.75–16 mm² (AWG 18–6)

  • CN7: 0.2–6 mm² (AWG 24–10)

• Tightening Torque: CN1 – 2.5 N·m (22.13 lbf·in)

Applications

• Packaging machine automation

• Material handling systems

• High-performance general machine control

• Multi-axis servo applications in PacDrive 3 systems

Why Choose Schneider Electric LXM62DD27D21000

• Compact double drive with 4.3 kW continuous power

• Integrated SERCOS III communication for PacDrive 3

• Global compliance – CE, UL, CSA, TÜV, EAC certified

• STO safety function for machine protection

• Optimized compatibility with SH3, MH3, and SHS servo motors

Order Now

The Schneider Electric LXM62DD27D21000 Lexium 62 double drive is available and ships worldwide.
