Schneider Electric LXM62DD27C21000

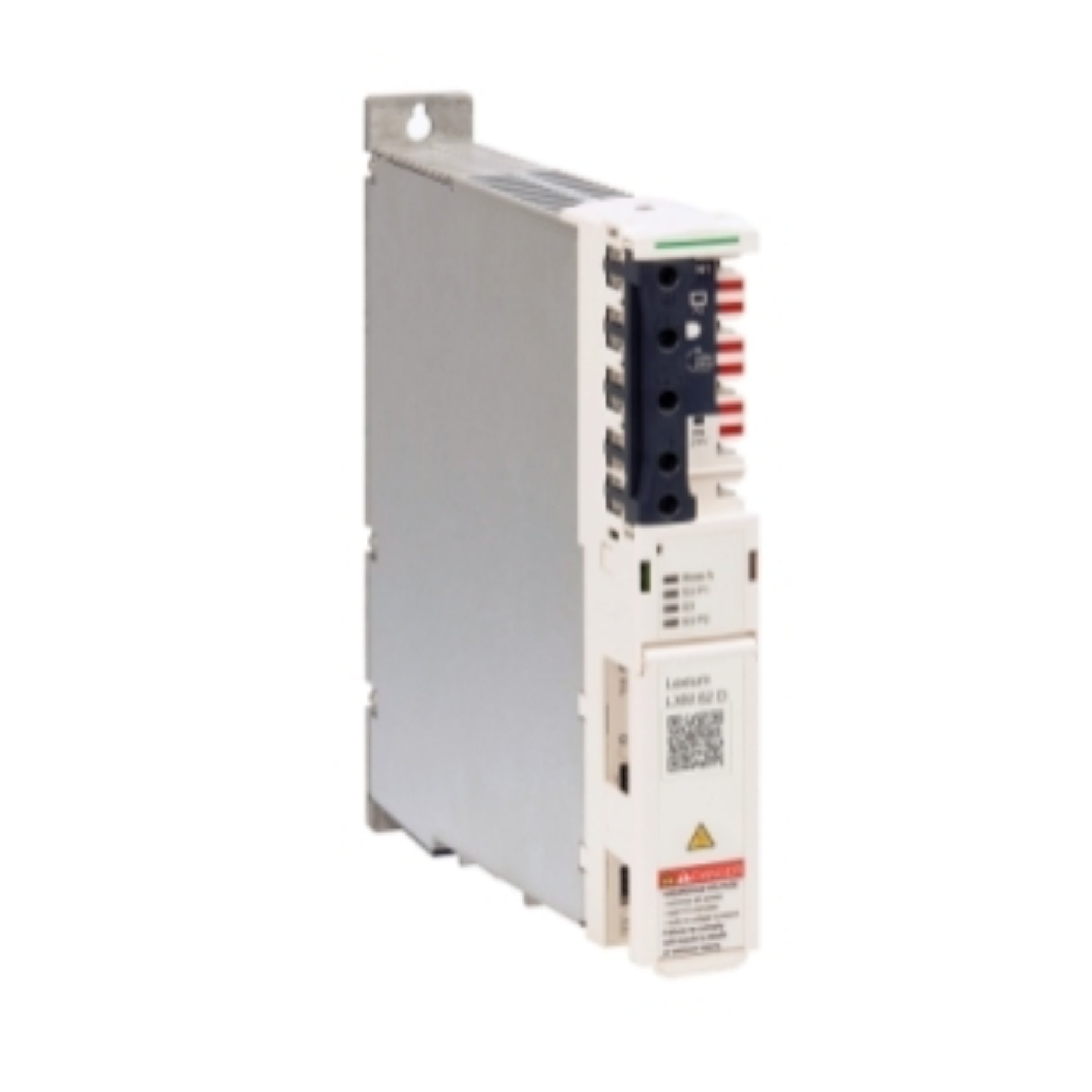

Schneider Electric LXM62DD27C21000 – Lexium 62 Single Drive

Overview

The Schneider Electric LXM62DD27C21000 is a robust Lexium 62 single drive designed for PacDrive 3 multi-axis automation systems. With a continuous power rating of 2.4 kW and a 5 A output current at 4 kHz, it provides reliable and efficient servo control for demanding machine automation.

The unit features 2 digital inputs, 2 touch probe inputs, and 2 digital outputs, ensuring flexibility in high-performance motion applications. Built with SERCOS III communication for seamless integration, it comes in a compact IP20 housing weighing just 3 kg. This drive is widely used in general machine control, packaging automation, and material handling systems.

Key Features

• Brand: Schneider Electric

• Range: Lexium 62 & Motors

• Model: LXM62DD27C21000

• Device Type: Single Drive

• Rated Power: 2.4 kW

• Rated Supply Voltage: 24 V DC

• Continuous Output Current: 5 A at 4 kHz

• I/O:

  • 2 digital inputs

  • 2 touch probe inputs

  • 2 digital outputs

• Communication: Integrated SERCOS III

• Electrical Connection: Connector type

• Degree of Protection: IP20 (IEC 60529)

• Net Weight: 3 kg (6.6 lb)

Motor Compatibility

• SH3 servo motor (70 mm, 2 motor stacks)

• SH3 servo motor (70 mm, 3 motor stacks)

Technical Specifications

• Continuous Power: 2.4 kW

• Supply Voltage: 24 V DC

• Communication Protocol: SERCOS III

• System Integration: PacDrive 3 LMC Pro, Pro2, and Eco motion controllers

• Certifications: CE, CSA, EAC, TÜV, UL

• Standards:

  • EN 61800-5-1

  • EN/ISO 13849-1

  • EN/ISO 13849-2

  • UL 508C

  • CSA C22.2 No 14

  • EN 62061

  • IEC 61508

Applications

• High-speed packaging machines

• General industrial machine automation

• Material handling and conveying systems

• Multi-axis control in PacDrive-based automation

Why Choose Schneider Electric LXM62DD27C21000

• Powerful 2.4 kW drive with compact footprint

• Integrated SERCOS III for real-time networking

• Flexible I/O with touch probe support

• Global compliance with CE, UL, CSA, TÜV, EAC certifications

• Optimized for PacDrive 3 automation with SH3 servo motors

Order Now

The Schneider Electric LXM62DD27C21000 Lexium 62 single drive is available and ships worldwide.
